Datasheet LTC3388-1, LTC3388-3 (Analog Devices) - 8
| Manufacturer | Analog Devices |
| Description | 20V High Efficiency Nanopower Step-Down Regulator |
| Pages / Page | 22 / 8 — TYPICAL PERFORMANCE CHARACTERISTICS. Efficiency vs ILOAD, L = 22µH. … |
| File Format / Size | PDF / 381 Kb |
| Document Language | English |
TYPICAL PERFORMANCE CHARACTERISTICS. Efficiency vs ILOAD, L = 22µH. Efficiency vs ILOAD, L = 100µH. (LTC3388-3)
Model Line for this Datasheet
Text Version of Document
LTC3388-1/LTC3388-3

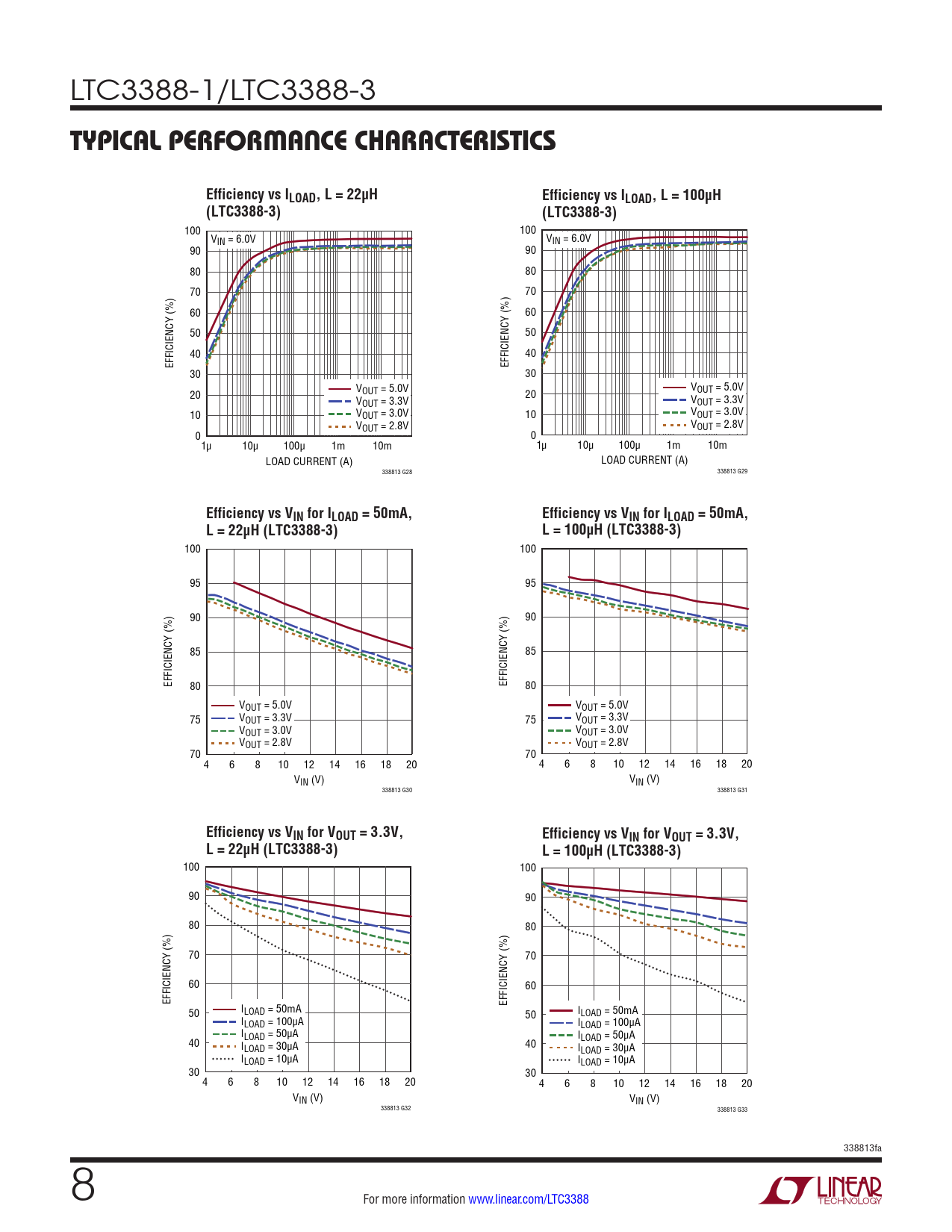

TYPICAL PERFORMANCE CHARACTERISTICS Efficiency vs ILOAD, L = 22µH Efficiency vs ILOAD, L = 100µH (LTC3388-3) (LTC3388-3)
100 100 VIN = 6.0V VIN = 6.0V 90 90 80 80 70 70 60 60 50 50 40 40 EFFICIENCY (%) EFFICIENCY (%) 30 30 V 20 VOUT = 5.0V OUT = 5.0V V 20 OUT = 3.3V VOUT = 3.3V 10 VOUT = 3.0V 10 VOUT = 3.0V VOUT = 2.8V VOUT = 2.8V 0 0 1µ 10µ 100µ 1m 10m 1µ 10µ 100µ 1m 10m LOAD CURRENT (A) LOAD CURRENT (A) 338813 G28 338813 G29
Efficiency vs VIN for ILOAD = 50mA, Efficiency vs VIN for ILOAD = 50mA, L = 22µH (LTC3388-3) L = 100µH (LTC3388-3)
100 100 95 95 90 90 85 85 EFFICIENCY (%) 80 EFFICIENCY (%) 80 VOUT = 5.0V VOUT = 5.0V 75 VOUT = 3.3V 75 VOUT = 3.3V VOUT = 3.0V VOUT = 3.0V VOUT = 2.8V VOUT = 2.8V 70 70 4 6 8 10 12 14 16 18 20 4 6 8 10 12 14 16 18 20 VIN (V) VIN (V) 338813 G30 338813 G31
Efficiency vs VIN for VOUT = 3.3V, Efficiency vs VIN for VOUT = 3.3V, L = 22µH (LTC3388-3) L = 100µH (LTC3388-3)
100 100 90 90 80 80 70 70 60 60 EFFICIENCY (%) EFFICIENCY (%) 50 ILOAD = 50mA ILOAD = 50mA I 50 LOAD = 100µA ILOAD = 100µA I I 40 LOAD = 50µA LOAD = 50µA ILOAD = 30µA 40 ILOAD = 30µA ILOAD = 10µA ILOAD = 10µA 30 30 4 6 8 10 12 14 16 18 20 4 6 8 10 12 14 16 18 20 VIN (V) VIN (V) 338813 G32 338813 G33 338813fa 8 For more information www.linear.com/LTC3388 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Typical Application Related Parts
