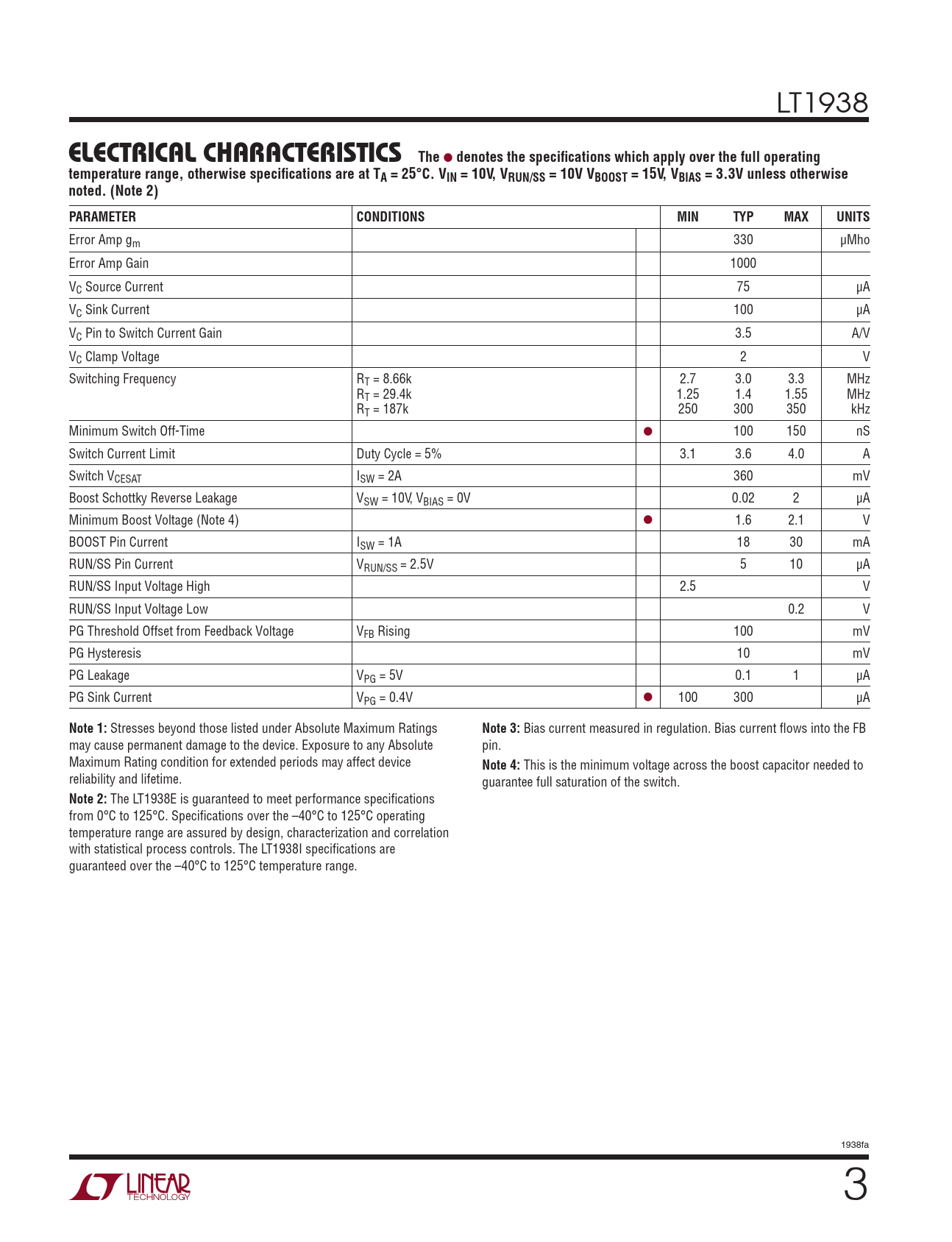

ELECTRICAL ChARACTERISTICS The. denotes the specifications which apply over the full operating
Model Line for this Datasheet
Text Version of Document
LT1938
ELECTRICAL ChARACTERISTICS The
●
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. VIN = 10V, VRUN/SS = 10V VBOOST = 15V, VBIAS = 3.3V unless otherwise noted. (Note 2) PARAMETER CONDITIONS MIN TYP MAX UNITS
Error Amp gm 330 µMho Error Amp Gain 1000 VC Source Current 75 µA VC Sink Current 100 µA VC Pin to Switch Current Gain 3.5 A/V VC Clamp Voltage 2 V Switching Frequency RT = 8.66k 2.7 3.0 3.3 MHz RT = 29.4k 1.25 1.4 1.55 MHz RT = 187k 250 300 350 kHz Minimum Switch Off-Time ● 100 150 nS Switch Current Limit Duty Cycle = 5% 3.1 3.6 4.0 A Switch VCESAT ISW = 2A 360 mV Boost Schottky Reverse Leakage VSW = 10V, VBIAS = 0V 0.02 2 µA Minimum Boost Voltage (Note 4) ● 1.6 2.1 V BOOST Pin Current ISW = 1A 18 30 mA RUN/SS Pin Current VRUN/SS = 2.5V 5 10 µA RUN/SS Input Voltage High 2.5 V RUN/SS Input Voltage Low 0.2 V PG Threshold Offset from Feedback Voltage VFB Rising 100 mV PG Hysteresis 10 mV PG Leakage VPG = 5V 0.1 1 µA PG Sink Current VPG = 0.4V ● 100 300 µA
