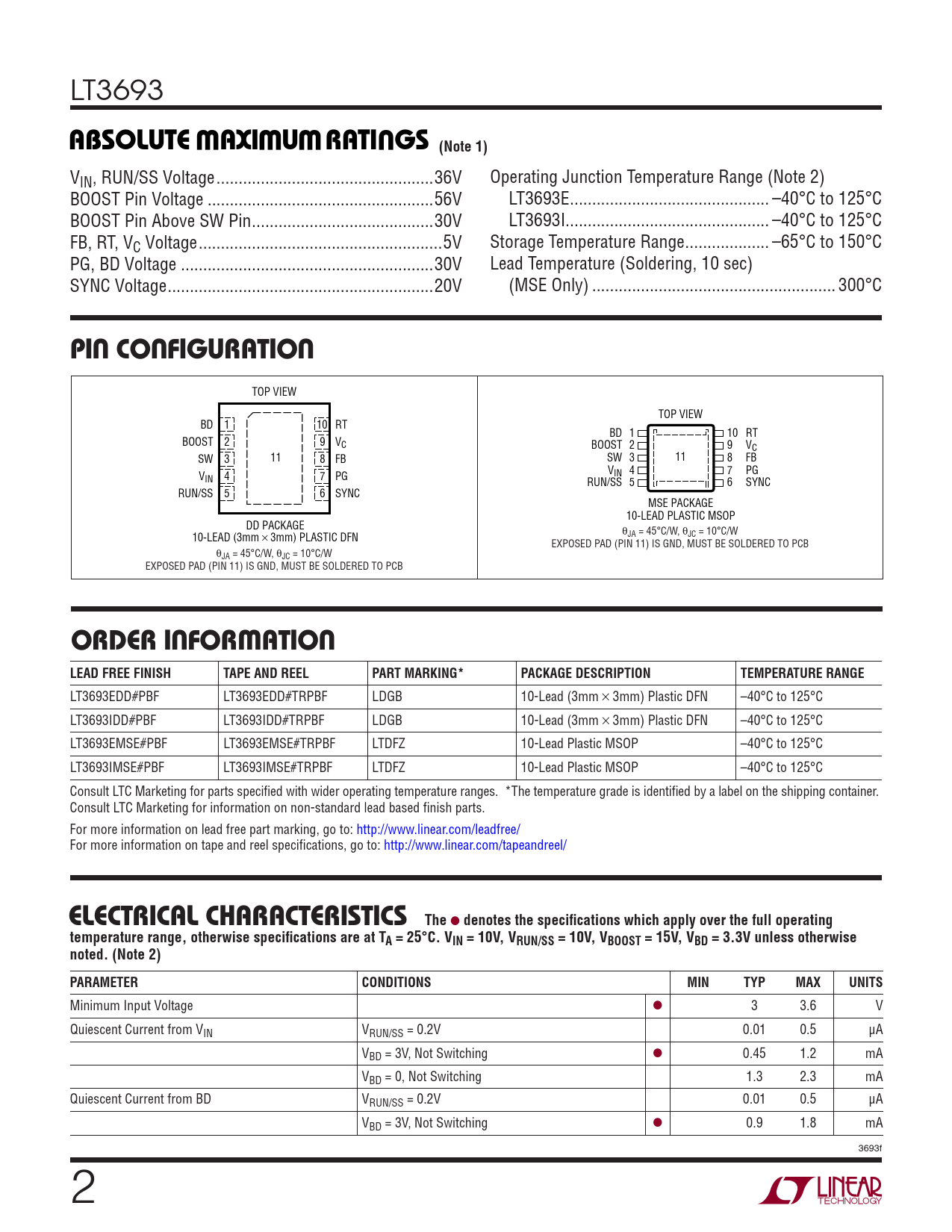

LT3693
W W W U ABSOLUTE AXI U RATI GS (Note 1)
VIN, RUN/SS Voltage ...36V Operating Junction Temperature Range (Note 2) BOOST Pin Voltage ...56V LT3693E ... –40°C to 125°C BOOST Pin Above SW Pin ...30V LT3693I.. –40°C to 125°C FB, RT, VC Voltage ...5V Storage Temperature Range ... –65°C to 150°C PG, BD Voltage ...30V Lead Temperature (Soldering, 10 sec) SYNC Voltage ..20V (MSE Only) ... 300°C
PIN CONFIGURATION
TOP VIEW TOP VIEW BD 1 10 RT BD 1 10 RT BOOST 2 9 VC BOOST 2 9 VC SW 3 11 8 FB SW 3 11 8 FB V 4 7 PG V 4 7 PG IN IN RUN/SS 5 6 SYNC RUN/SS 5 6 SYNC MSE PACKAGE 10-LEAD PLASTIC MSOP DD PACKAGE θ 10-LEAD (3mm × 3mm) PLASTIC DFN JA = 45°C/W, θJC = 10°C/W EXPOSED PAD (PIN 11) IS GND, MUST BE SOLDERED TO PCB θJA = 45°C/W, θJC = 10°C/W EXPOSED PAD (PIN 11) IS GND, MUST BE SOLDERED TO PCB
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LT3693EDD#PBF LT3693EDD#TRPBF LDGB 10-Lead (3mm × 3mm) Plastic DFN –40°C to 125°C LT3693IDD#PBF LT3693IDD#TRPBF LDGB 10-Lead (3mm × 3mm) Plastic DFN –40°C to 125°C LT3693EMSE#PBF LT3693EMSE#TRPBF LTDFZ 10-Lead Plastic MSOP –40°C to 125°C LT3693IMSE#PBF LT3693IMSE#TRPBF LTDFZ 10-Lead Plastic MSOP –40°C to 125°C Consult LTC Marketing for parts specifi ed with wider operating temperature ranges. *The temperature grade is identifi ed by a label on the shipping container. Consult LTC Marketing for information on non-standard lead based fi nish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifi cations, go to: http://www.linear.com/tapeandreel/
ELECTRICAL CHARACTERISTICS The
●
denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TA = 25°C. VIN = 10V, VRUN/SS = 10V, VBOOST = 15V, VBD = 3.3V unless otherwise noted. (Note 2) PARAMETER CONDITIONS MIN TYP MAX UNITS
Minimum Input Voltage ● 3 3.6 V Quiescent Current from VIN VRUN/SS = 0.2V 0.01 0.5 μA VBD = 3V, Not Switching ● 0.45 1.2 mA VBD = 0, Not Switching 1.3 2.3 mA Quiescent Current from BD VRUN/SS = 0.2V 0.01 0.5 μA VBD = 3V, Not Switching ● 0.9 1.8 mA 3693f 2
