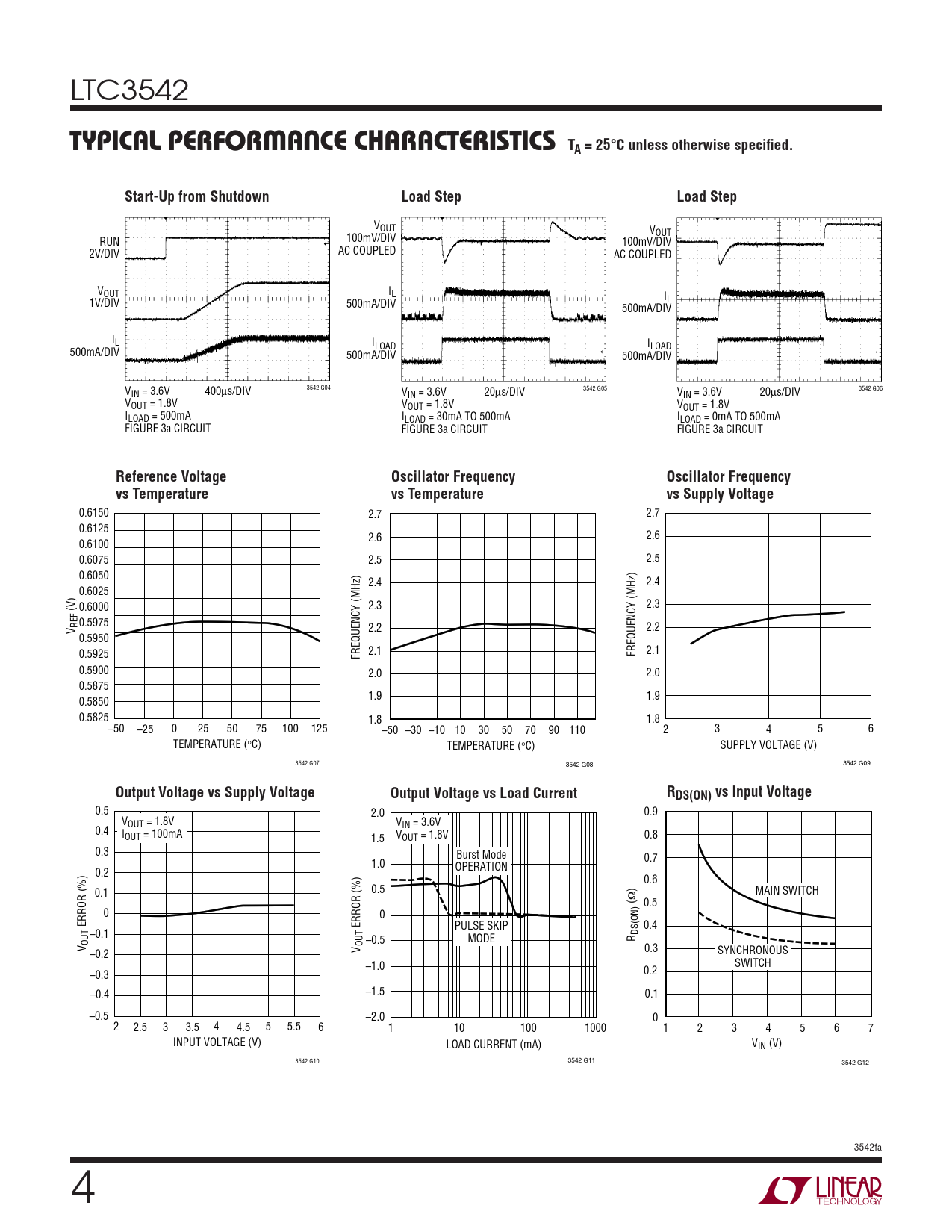

TYPICAL PERFORMANCE CHARACTERISTICS TA = 25°C unless otherwise specifi ed. Start-Up from Shutdown. Load Step
