| Manufacturer | Analog Devices |
| Description | Dual Monolithic 1.4A Step-Down Switching Regulator |
| Pages / Page | 26 / 4 — TYPICAL PERFORMANCE CHARACTERISTICS. Effi ciency, VOUT = 5V. Effi ciency, … |
| File Format / Size | PDF / 322 Kb |
| Document Language | English |
TYPICAL PERFORMANCE CHARACTERISTICS. Effi ciency, VOUT = 5V. Effi ciency, VOUT = 3.3V. Effi ciency, VOUT = 1.8V
Text Version of Document
LT3508

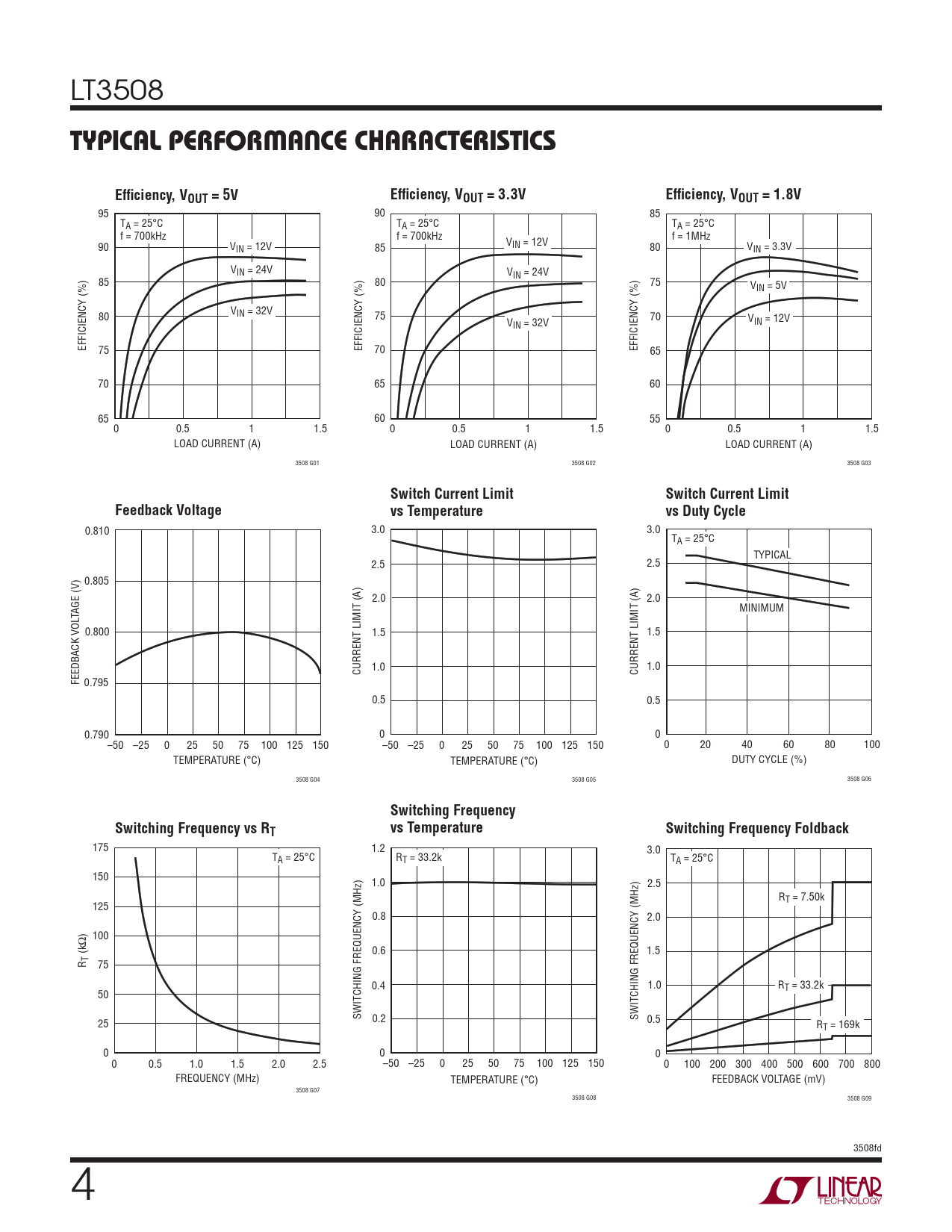

TYPICAL PERFORMANCE CHARACTERISTICS Effi ciency, VOUT = 5V Effi ciency, VOUT = 3.3V Effi ciency, VOUT = 1.8V
95 90 85 TA = 25°C TA = 25°C TA = 25°C f = 700kHz f = 700kHz f = 1MHz 90 V V IN = 12V 85 IN = 12V 80 VIN = 3.3V VIN = 24V VIN = 24V 85 80 75 VIN = 5V V 80 IN = 32V 75 70 V V IN = 32V IN = 12V EFFICIENCY (%) 75 EFFICIENCY (%) 70 EFFICIENCY (%) 65 70 65 60 65 60 55 0 0.5 1 1.5 0 0.5 1 1.5 0 0.5 1 1.5 LOAD CURRENT (A) LOAD CURRENT (A) LOAD CURRENT (A) 3508 G01 3508 G02 3508 G03
