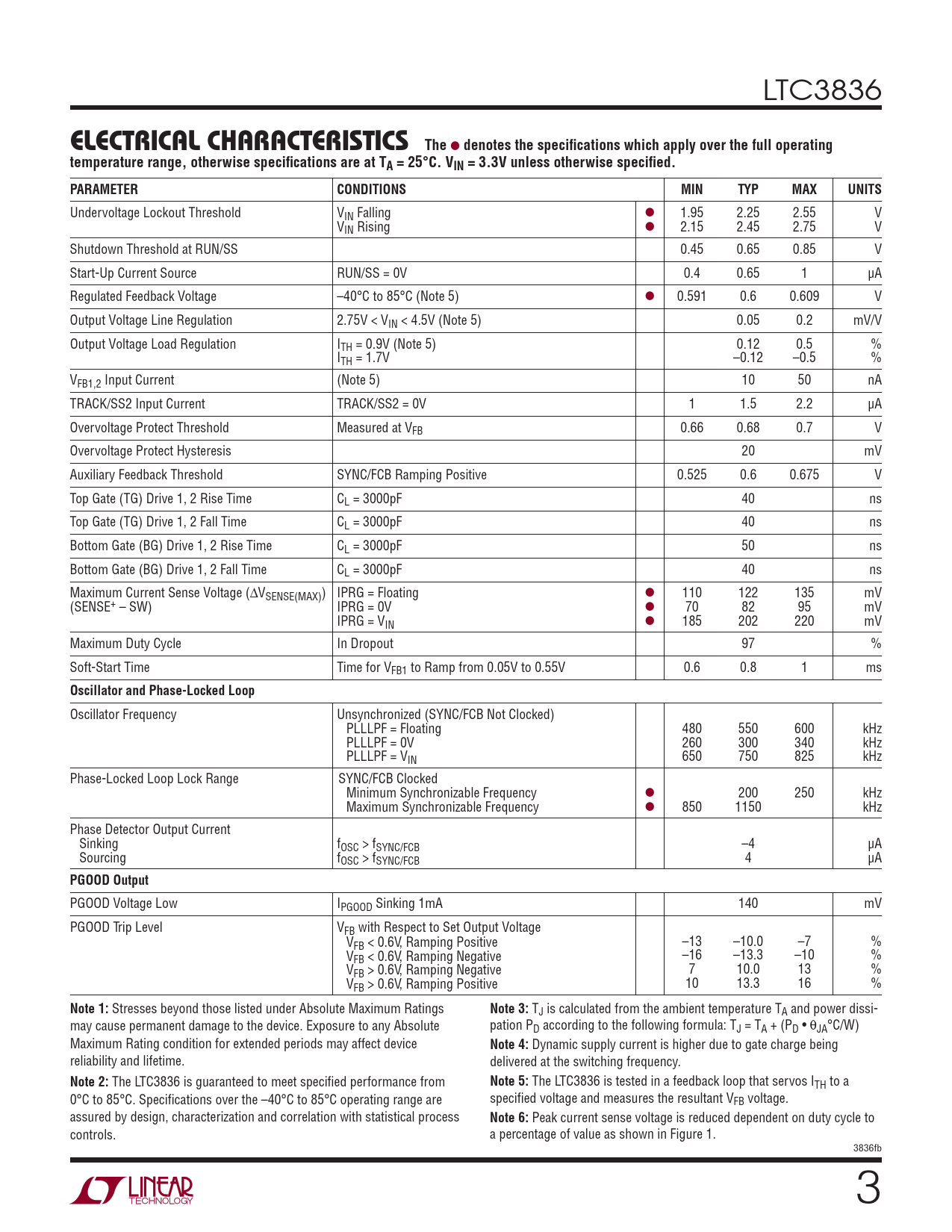

ELECTRICAL CHARACTERISTICS. The. denotes the specifi cations which apply over the full operating
Model Line for this Datasheet
Text Version of Document
LTC3836
ELECTRICAL CHARACTERISTICS The
l
denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TA = 25°C. VIN = 3.3V unless otherwise specifi ed. PARAMETER CONDITIONS MIN TYP MAX UNITS
Undervoltage Lockout Threshold VIN Falling l 1.95 2.25 2.55 V VIN Rising l 2.15 2.45 2.75 V Shutdown Threshold at RUN/SS 0.45 0.65 0.85 V Start-Up Current Source RUN/SS = 0V 0.4 0.65 1 μA Regulated Feedback Voltage –40°C to 85°C (Note 5) l 0.591 0.6 0.609 V Output Voltage Line Regulation 2.75V < VIN < 4.5V (Note 5) 0.05 0.2 mV/V Output Voltage Load Regulation ITH = 0.9V (Note 5) 0.12 0.5 % ITH = 1.7V –0.12 –0.5 % VFB1,2 Input Current (Note 5) 10 50 nA TRACK/SS2 Input Current TRACK/SS2 = 0V 1 1.5 2.2 μA Overvoltage Protect Threshold Measured at VFB 0.66 0.68 0.7 V Overvoltage Protect Hysteresis 20 mV Auxiliary Feedback Threshold SYNC/FCB Ramping Positive 0.525 0.6 0.675 V Top Gate (TG) Drive 1, 2 Rise Time CL = 3000pF 40 ns Top Gate (TG) Drive 1, 2 Fall Time CL = 3000pF 40 ns Bottom Gate (BG) Drive 1, 2 Rise Time CL = 3000pF 50 ns Bottom Gate (BG) Drive 1, 2 Fall Time CL = 3000pF 40 ns Maximum Current Sense Voltage (∆VSENSE(MAX)) IPRG = Floating l 110 122 135 mV (SENSE+ – SW) IPRG = 0V l 70 82 95 mV IPRG = VIN l 185 202 220 mV Maximum Duty Cycle In Dropout 97 % Soft-Start Time Time for VFB1 to Ramp from 0.05V to 0.55V 0.6 0.8 1 ms
Oscillator and Phase-Locked Loop
Oscillator Frequency Unsynchronized (SYNC/FCB Not Clocked) PLLLPF = Floating 480 550 600 kHz PLLLPF = 0V 260 300 340 kHz PLLLPF = VIN 650 750 825 kHz Phase-Locked Loop Lock Range SYNC/FCB Clocked Minimum Synchronizable Frequency l 200 250 kHz Maximum Synchronizable Frequency l 850 1150 kHz Phase Detector Output Current Sinking fOSC > fSYNC/FCB –4 μA Sourcing fOSC > fSYNC/FCB 4 μA
PGOOD Output
PGOOD Voltage Low IPGOOD Sinking 1mA 140 mV PGOOD Trip Level VFB with Respect to Set Output Voltage VFB < 0.6V, Ramping Positive –13 –10.0 –7 % VFB < 0.6V, Ramping Negative –16 –13.3 –10 % VFB > 0.6V, Ramping Negative 7 10.0 13 % VFB > 0.6V, Ramping Positive 10 13.3 16 %
