Datasheet AD5116 (Analog Devices) - 5
| Manufacturer | Analog Devices |
| Description | Single-Channel, 64-Position, Push Button, ±8% Resistor Tolerance, Nonvolatile Digital Potentiometer |
| Pages / Page | 16 / 5 — Data Sheet. AD5116. INTERFACE TIMING SPECIFICATIONS. Table 3. Parameter. … |
| Revision | B |
| File Format / Size | PDF / 377 Kb |
| Document Language | English |
Data Sheet. AD5116. INTERFACE TIMING SPECIFICATIONS. Table 3. Parameter. Test Conditions/Comments. Min. Typ. Max. Unit. Description
Model Line for this Datasheet
Text Version of Document
link to page 5 link to page 5

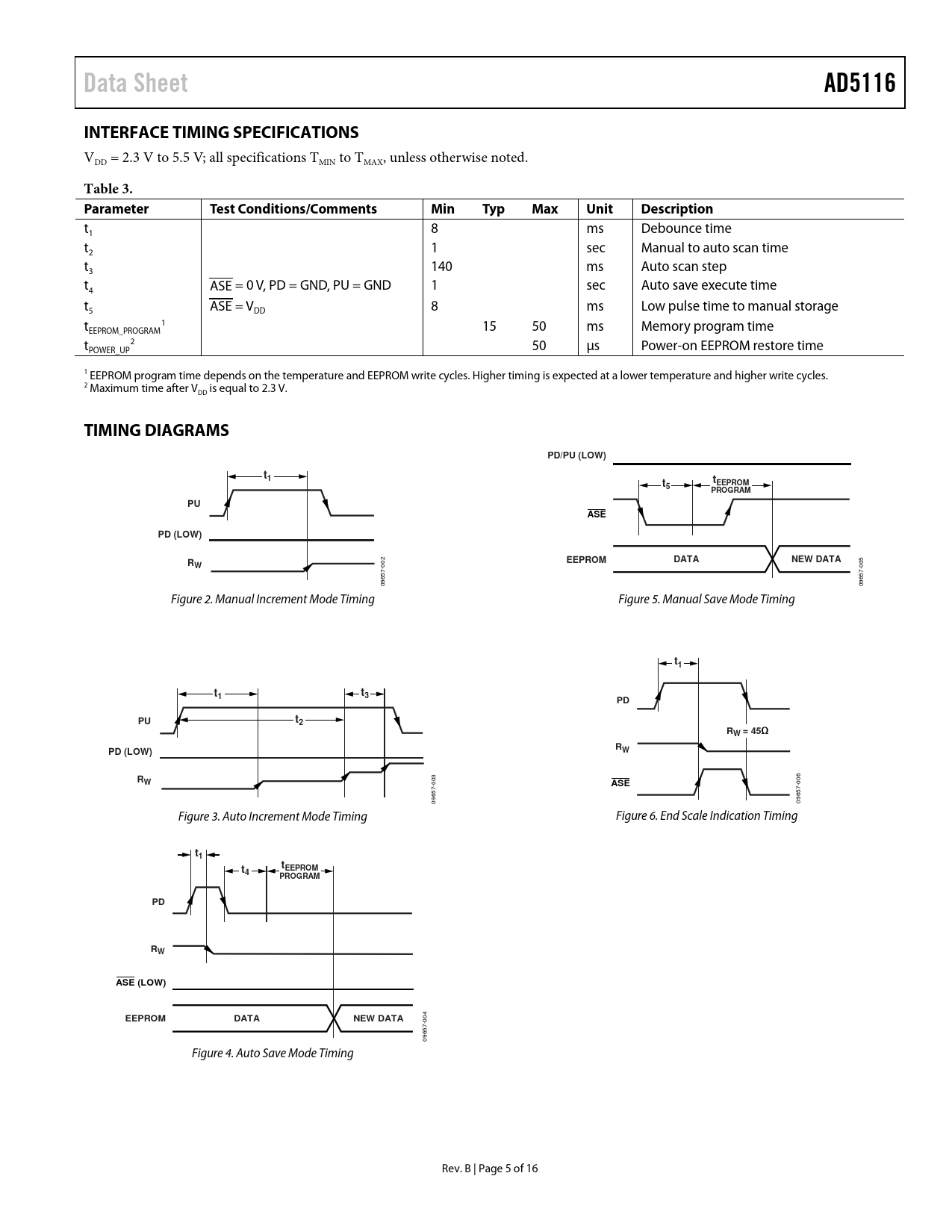

Data Sheet AD5116 INTERFACE TIMING SPECIFICATIONS
VDD = 2.3 V to 5.5 V; all specifications TMIN to TMAX, unless otherwise noted.
Table 3. Parameter Test Conditions/Comments Min Typ Max Unit Description
t 8 ms Debounce time 1 t 1 sec Manual to auto scan time 2 t 140 ms Auto scan step 3 t 4 ASE = 0 V, PD = GND, PU = GND 1 sec Auto save execute time t 8 ms Low pulse time to manual storage 5 ASE = VDD t 1 15 50 ms Memory program time EEPROM_PROGRAM t 2 50 µs Power-on EEPROM restore time POWER_UP 1 EEPROM program time depends on the temperature and EEPROM write cycles. Higher timing is expected at a lower temperature and higher write cycles. 2 Maximum time after VDD is equal to 2.3 V.
TIMING DIAGRAMS PD/PU (LOW) t1 t tEEPROM 5 PROGRAM PU ASE PD (LOW) R EEPROM DATA NEW DATA W
002 005 09657- 09657- Figure 2. Manual Increment Mode Timing Figure 5. Manual Save Mode Timing
t1 t t 1 3 PD PU t2 RW = 45Ω R PD (LOW) W RW
003 006
ASE
09657- 09657- Figure 3. Auto Increment Mode Timing Figure 6. End Scale Indication Timing
t1 t tEEPROM 4 PROGRAM PD RW ASE (LOW) EEPROM DATA NEW DATA
