Datasheet 7UL1T08FU (Toshiba)

ManufacturerToshiba
Description2-Input AND Gate with Level Shifting. L-MOS LVP series
Pages / Page7 / 1 — 7UL1T08FU. CMOS. Digital. Integrated. Circuits. Silicon. Monolithic. …
File Format / SizePDF / 147 Kb
Document LanguageEnglish

7UL1T08FU. CMOS. Digital. Integrated. Circuits. Silicon. Monolithic. 7UL1T08FU. 1. Functional. Description. •. 2-Input. AND. Gate. with. Level. Shifting. 2

Datasheet 7UL1T08FU Toshiba

Model Line for this Datasheet

7UL1T

Text Version of Document

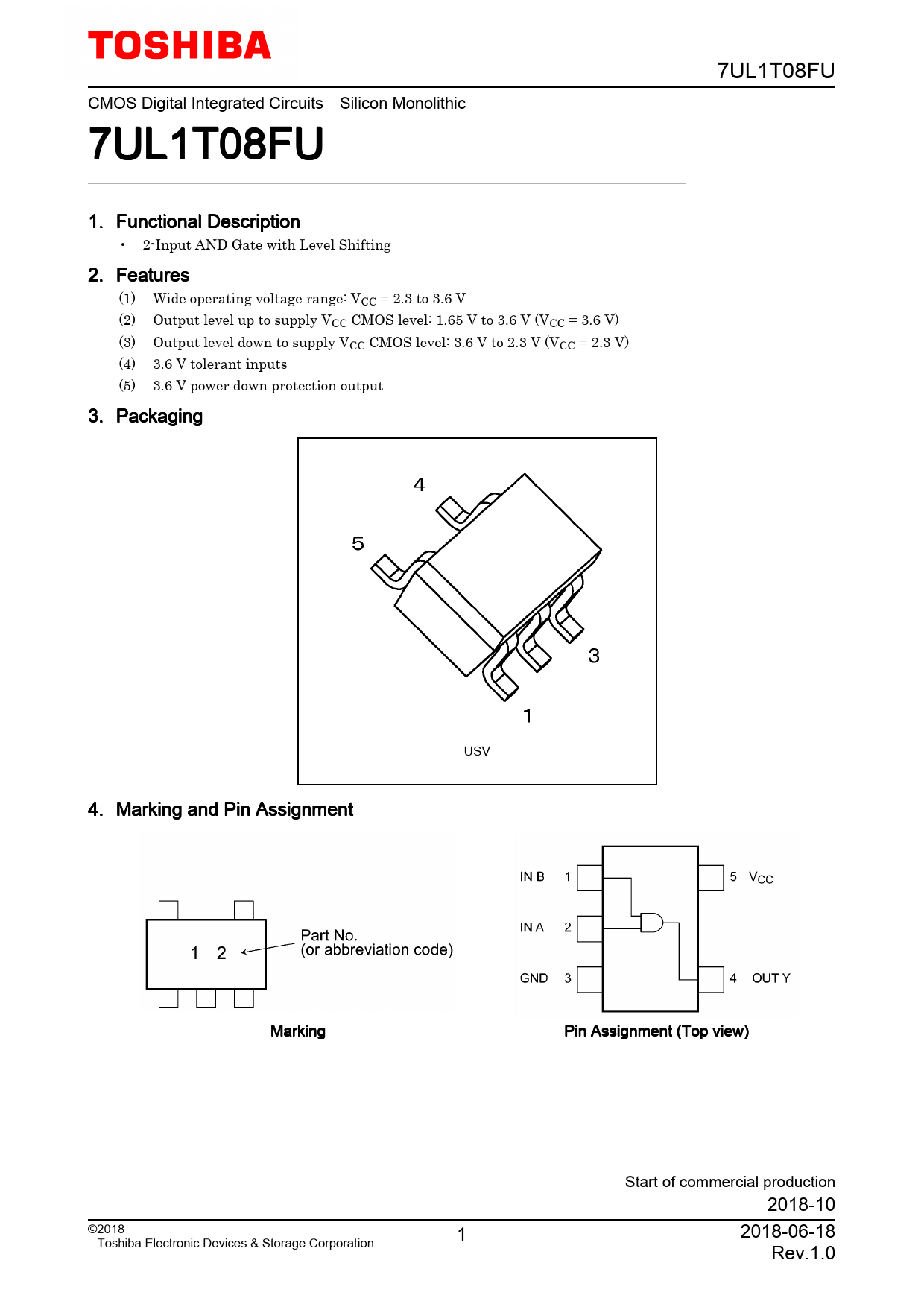

7UL1T08FU CMOS Digital Integrated Circuits Silicon Monolithic 7UL1T08FU 1. Functional Description • 2-Input AND Gate with Level Shifting 2. Features (1) Wide operating voltage range: VCC = 2.3 to 3.6 V (2) Output level up to supply VCC CMOS level: 1.65 V to 3.6 V (VCC = 3.6 V) (3) Output level down to supply VCC CMOS level: 3.6 V to 2.3 V (VCC = 2.3 V) (4) 3.6 V tolerant inputs (5) 3.6 V power down protection output 3. Packaging USV 4. Marking and Pin Assignment Marking Pin Assignment (Top view) Start of commercial production 2018-10 ©2018 1 2018-06-18 Toshiba Electronic Devices & Storage Corporation Rev.1.0
