Datasheet 2N3906 (MCC)
| Manufacturer | MCC |
| Description | PNP General Purpose Amplifier, 40 V DC, TO-92 |
| Pages / Page | 5 / 1 — Micro Commercial Components. 2N3906. PNP General. Purpose Amplifier. … |
| Revision | F |
| File Format / Size | PDF / 452 Kb |
| Document Language | English |

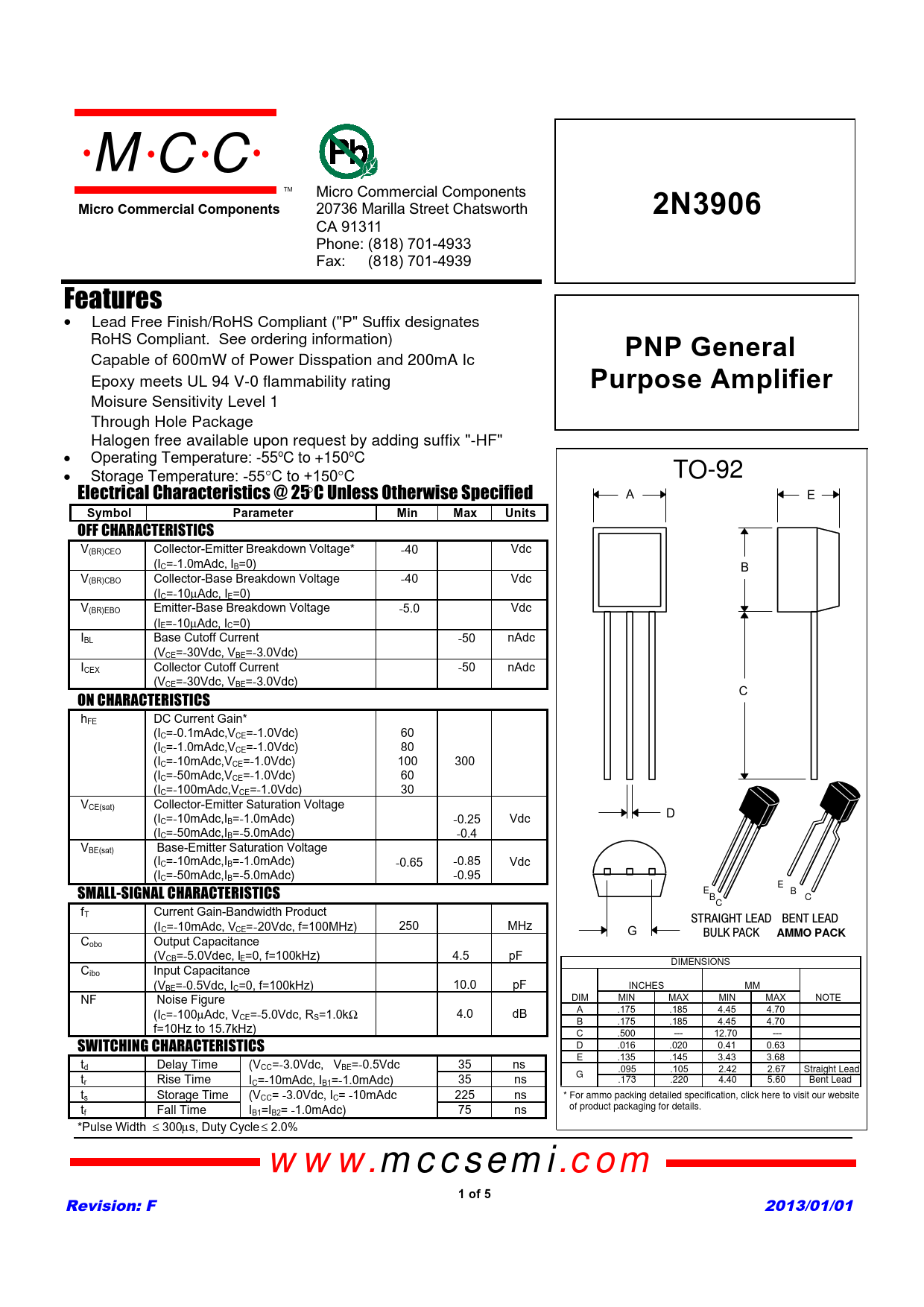

Micro Commercial Components. 2N3906. PNP General. Purpose Amplifier. Symbol. Parameter. Min. Max. Units. AMMO PACK. 1 of 5
Model Line for this Datasheet
Text Version of Document
M C C TM omponents
Micro Commercial Components
20736 Marilla Street Chatsworth
2N3906
!"# $ % !"# Features • Lead Free Finish/RoHS Compliant ("P" Suffix designates RoHS Compliant. See ordering information)
PNP General
x Capable of 600mW of Power Disspation and 200mA Ic x Epoxy meets UL 94 V-0 flammability rating
Purpose Amplifier
x Moisure Sensitivity Level 1 x Through Hole Package x Halogen free available upon request by adding suffix "-HF" • Operating Temperature: -55oC to +150oC • Storage Temperature: -55°C to +150°C TO-92 Electrical Characteristics @ 25°C Unless Otherwise Specified A E
Symbol Parameter Min Max Units
OFF CHARACTERISTICS V(BR)CEO Collector-Emitter Breakdown Voltage* -40 Vdc (IC=-1.0mAdc, IB=0) B V(BR)CBO Collector-Base Breakdown Voltage -40 Vdc (IC=-10µAdc, IE=0) V(BR)EBO Emitter-Base Breakdown Voltage -5.0 Vdc (IE=-10µAdc, IC=0) IBL Base Cutoff Current -50 nAdc (VCE=-30Vdc, VBE=-3.0Vdc) ICEX Collector Cutoff Current -50 nAdc (VCE=-30Vdc, VBE=-3.0Vdc) C ON CHARACTERISTICS hFE DC Current Gain* (IC=-0.1mAdc,VCE=-1.0Vdc) 60 (IC=-1.0mAdc,VCE=-1.0Vdc) 80 (IC=-10mAdc,VCE=-1.0Vdc) 100 300 (IC=-50mAdc,VCE=-1.0Vdc) 60 (IC=-100mAdc,VCE=-1.0Vdc) 30 VCE(sat) Collector-Emitter Saturation Voltage D (I - C=-10mAdc,IB=-1.0mAdc) 0.25 Vdc (I - C=-50mAdc,IB=-5.0mAdc) 0.4 VBE(sat) Base-Emitter Saturation Voltage (IC=-10mAdc,IB=-1.0mAdc) -0.65 -0.85 Vdc (I - C=-50mAdc,IB=-5.0mAdc) 0.95 E SMALL-SIGNAL CHARACTERISTICS E B B C C fT Current Gain-Bandwidth Product STRAIGHT LEAD BENT LEAD (IC=-10mAdc, VCE=-20Vdc, f=100MHz) 250 MHz G BULK PACK
AMMO PACK
Cobo Output Capacitance (VCB=-5.0Vdec, IE=0, f=100kHz) 4.5 pF DIMENSIONS Cibo Input Capacitance (VBE=-0.5Vdc, IC=0, f=100kHz) 10.0 pF INCHES MM NF Noise Figure DIM MIN MAX MIN MAX NOTE A .175 .185 4.45 4.70 (IC=-100µAdc, VCE=-5.0Vdc, RS=1.0kΩ 4.0 dB B .175 .185 4.45 4.70 f=10Hz to 15.7kHz) C .500 --- 12.70 --- SWITCHING CHARACTERISTICS D .016 .020 0.41 0.63 E .135 .145 3.43 3.68 td Delay Time (VCC=-3.0Vdc, VBE=-0.5Vdc 35 ns .095 .105 2.42 2.67 Straight Lead G tr Rise Time IC=-10mAdc, IB1=-1.0mAdc) 35 ns .173 .220 4.40 5.60 Bent Lead ts Storage Time (VCC= -3.0Vdc, IC= -10mAdc 225 ns * For ammo packing detailed specification, click here to visit our website t of product packaging for details. f Fall Time IB1=IB2= -1.0mAdc) 75 ns *Pulse Width ≤ 300µs, Duty Cycle ≤ 2.0% www.mccsemi.com
