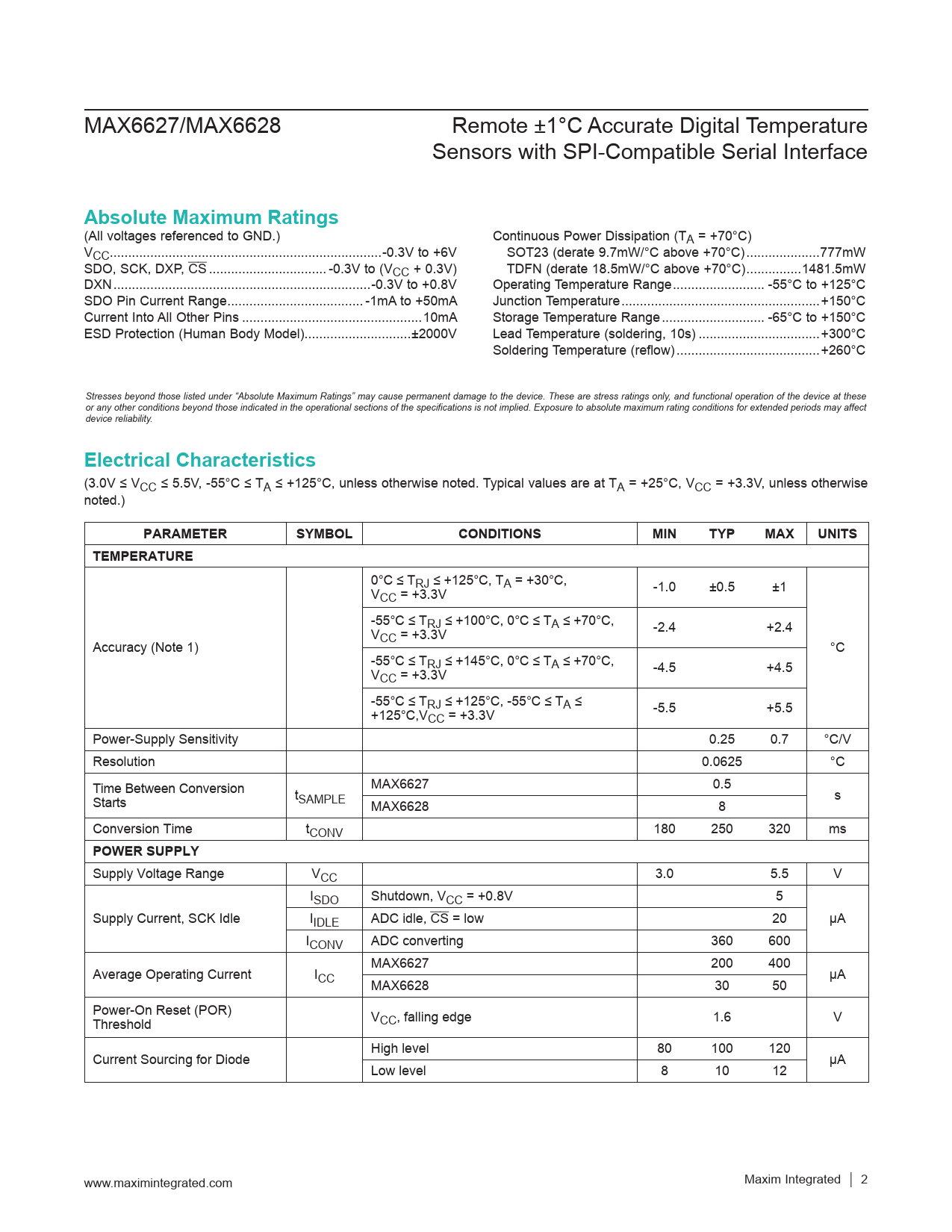

MAX6627/MAX6628 Remote ±1°C Accurate Digital Temperature Sensors with SPI-Compatible Serial Interface
Absolute Maximum Ratings
(All voltages referenced to GND.) Continuous Power Dissipation (TA = +70°C) VCC ..-0.3V to +6V SOT23 (derate 9.7mW/°C above +70°C) ..777mW SDO, SCK, DXP, CS .. -0.3V to (VCC + 0.3V) TDFN (derate 18.5mW/°C above +70°C) ...1481.5mW DXN ..-0.3V to +0.8V Operating Temperature Range ... -55°C to +125°C SDO Pin Current Range ... -1mA to +50mA Junction Temperature ..+150°C Current Into All Other Pins ...10mA Storage Temperature Range .. -65°C to +150°C ESD Protection (Human Body Model)...±2000V Lead Temperature (soldering, 10s) ...+300°C Soldering Temperature (reflow) ...+260°C Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
Electrical Characteristics
(3.0V ≤ VCC ≤ 5.5V, -55°C ≤ TA ≤ +125°C, unless otherwise noted. Typical values are at TA = +25°C, VCC = +3.3V, unless otherwise noted.)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS TEMPERATURE
0°C ≤ TRJ ≤ +125°C, TA = +30°C, VCC = +3.3V -1.0 ±0.5 ±1 -55°C ≤ TRJ ≤ +100°C, 0°C ≤ TA ≤ +70°C, VCC = +3.3V -2.4 +2.4 Accuracy (Note 1) °C -55°C ≤ TRJ ≤ +145°C, 0°C ≤ TA ≤ +70°C, VCC = +3.3V -4.5 +4.5 -55°C ≤ TRJ ≤ +125°C, -55°C ≤ TA ≤ +125°C,VCC = +3.3V -5.5 +5.5 Power-Supply Sensitivity 0.25 0.7 °C/V Resolution 0.0625 °C Time Between Conversion MAX6627 0.5 Starts tSAMPLE s MAX6628 8 Conversion Time tCONV 180 250 320 ms
POWER SUPPLY
Supply Voltage Range VCC 3.0 5.5 V ISDO Shutdown, VCC = +0.8V 5 Supply Current, SCK Idle IIDLE ADC idle, CS = low 20 µA ICONV ADC converting 360 600 MAX6627 200 400 Average Operating Current ICC µA MAX6628 30 50 Power-On Reset (POR) Threshold VCC, falling edge 1.6 V High level 80 100 120 Current Sourcing for Diode µA Low level 8 10 12 www.maximintegrated.com Maxim Integrated │
2
