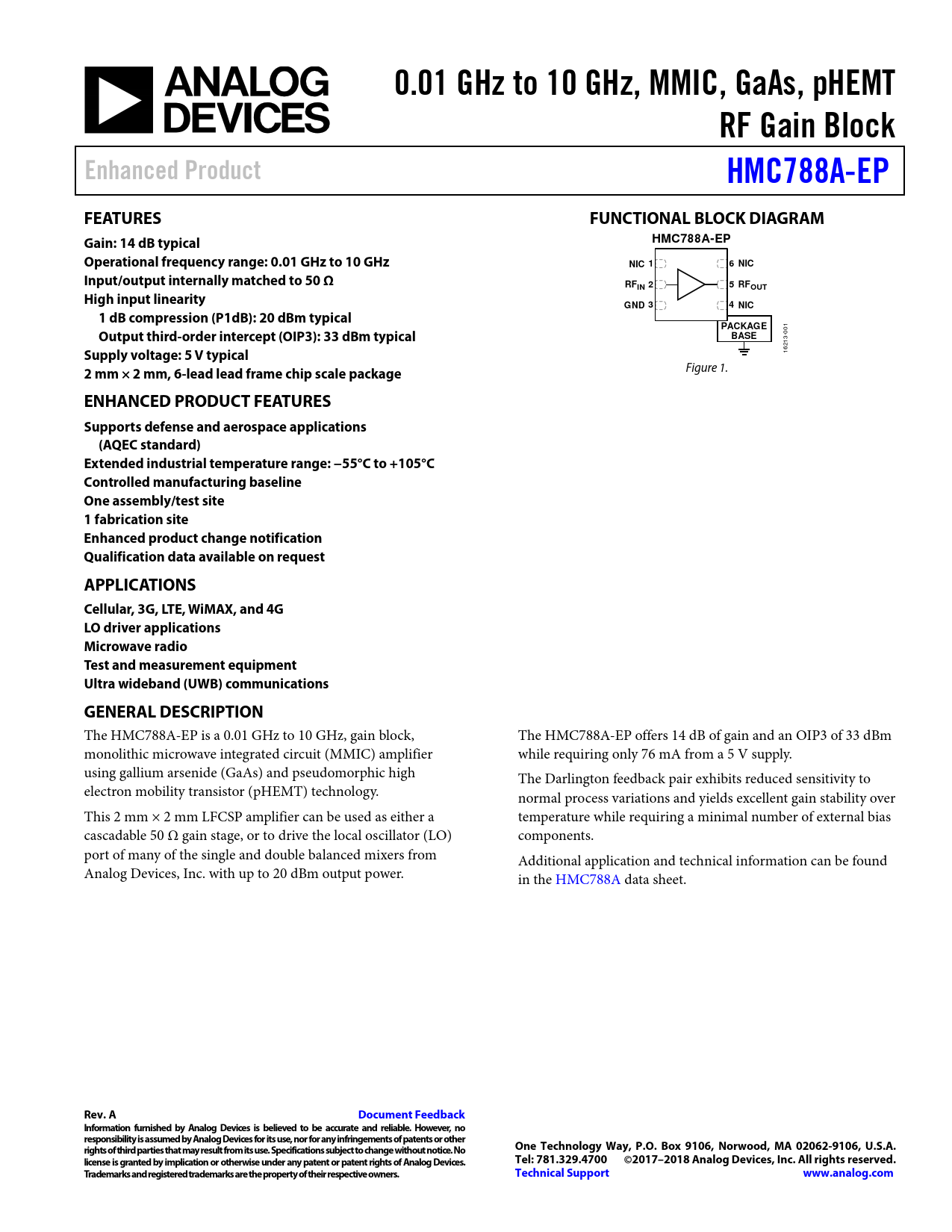

0.01 GHz to 10 GHz, MMIC, GaAs, pHEMT. RF Gain Block. Enhanced Product. HMC788A-EP. FEATURES. FUNCTIONAL BLOCK DIAGRAM
Text Version of Document
0.01 GHz to 10 GHz, MMIC, GaAs, pHEMT RF Gain Block Enhanced Product HMC788A-EP FEATURES FUNCTIONAL BLOCK DIAGRAM Gain: 14 dB typical HMC788A-EP Operational frequency range: 0.01 GHz to 10 GHz NIC 1 6 NIC Input/output internally matched to 50 Ω RF 2 5 IN RFOUT High input linearity GND 3 4 NIC 1 dB compression (P1dB): 20 dBm typical PACKAGE Output third-order intercept (OIP3): 33 dBm typical
001
BASE Supply voltage: 5 V typical
16213-
2 mm × 2 mm, 6-lead lead frame chip scale package
Figure 1.
ENHANCED PRODUCT FEATURES Supports defense and aerospace applications (AQEC standard) Extended industrial temperature range: −55°C to +105°C Controlled manufacturing baseline One assembly/test site 1 fabrication site Enhanced product change notification Qualification data available on request APPLICATIONS Cellular, 3G, LTE, WiMAX, and 4G LO driver applications Microwave radio Test and measurement equipment Ultra wideband (UWB) communications GENERAL DESCRIPTION
The HMC788A-EP is a 0.01 GHz to 10 GHz, gain block, The HMC788A-EP offers 14 dB of gain and an OIP3 of 33 dBm monolithic microwave integrated circuit (MMIC) amplifier while requiring only 76 mA from a 5 V supply. using gallium arsenide (GaAs) and pseudomorphic high The Darlington feedback pair exhibits reduced sensitivity to electron mobility transistor (pHEMT) technology. normal process variations and yields excellent gain stability over This 2 mm × 2 mm LFCSP amplifier can be used as either a temperature while requiring a minimal number of external bias cascadable 50 Ω gain stage, or to drive the local oscillator (LO) components. port of many of the single and double balanced mixers from Additional application and technical information can be found Analog Devices, Inc. with up to 20 dBm output power. in the HMC788A data sheet.
