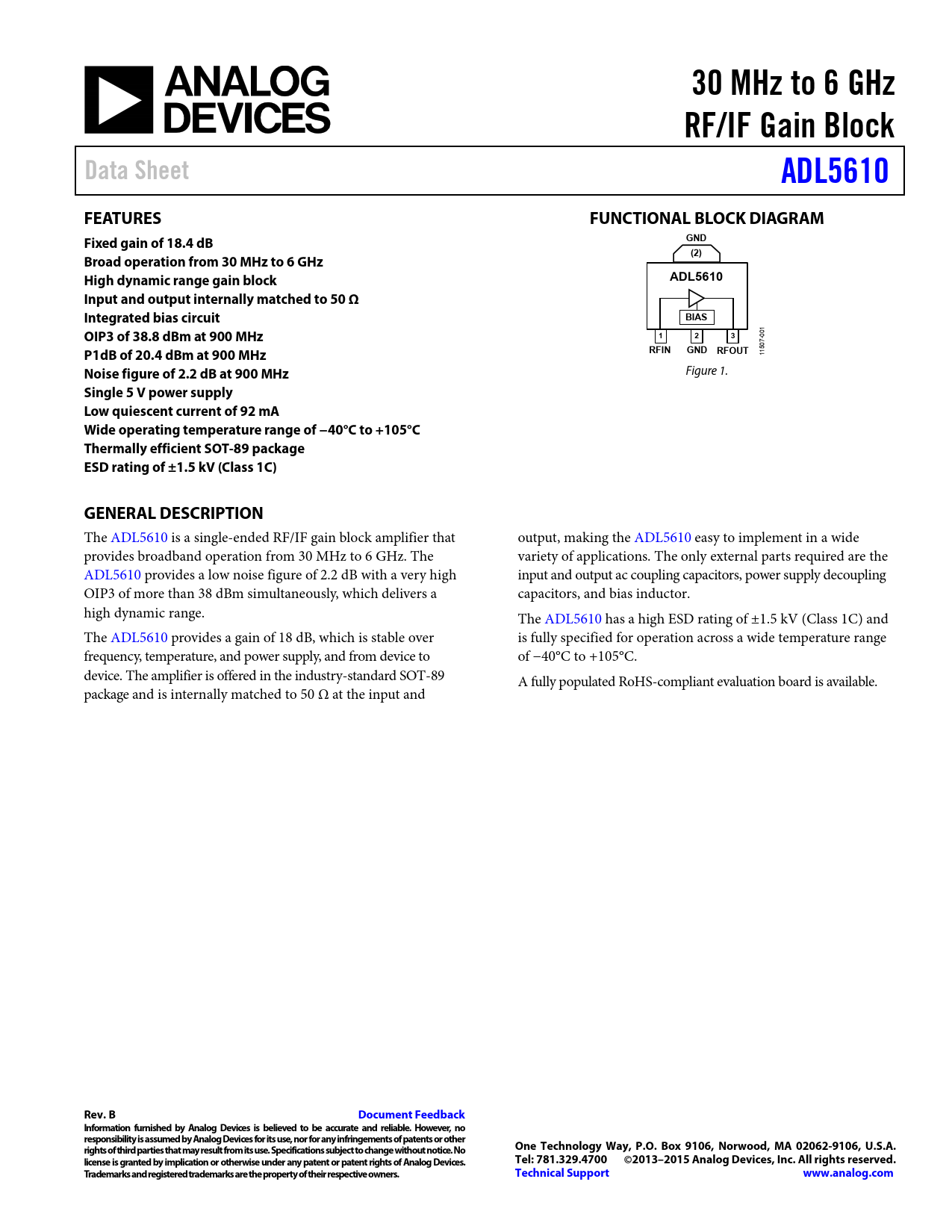

30 MHz to 6 GHz. RF/IF Gain Block. Data Sheet. ADL5610. FEATURES. FUNCTIONAL BLOCK DIAGRAM. Fixed gain of 18.4 dB. GND. (2)

Datasheet ADL5610 Analog Devices, Revision: B

Model Line for this Datasheet

Text Version of Document

30 MHz to 6 GHz RF/IF Gain Block Data Sheet ADL5610 FEATURES FUNCTIONAL BLOCK DIAGRAM Fixed gain of 18.4 dB GND (2) Broad operation from 30 MHz to 6 GHz High dynamic range gain block ADL5610 Input and output internally matched to 50 Ω Integrated bias circuit BIAS OIP3 of 38.8 dBm at 900 MHz 1 2 3
001
P1dB of 20.4 dBm at 900 MHz RFIN GND RFOUT
11507-
Noise figure of 2.2 dB at 900 MHz
Figure 1.
Single 5 V power supply Low quiescent current of 92 mA Wide operating temperature range of −40°C to +105°C Thermally efficient SOT-89 package ESD rating of ±1.5 kV (Class 1C) GENERAL DESCRIPTION
The ADL5610 is a single-ended RF/IF gain block amplifier that output, making the ADL5610 easy to implement in a wide provides broadband operation from 30 MHz to 6 GHz. The variety of applications. The only external parts required are the ADL5610 provides a low noise figure of 2.2 dB with a very high input and output ac coupling capacitors, power supply decoupling OIP3 of more than 38 dBm simultaneously, which delivers a capacitors, and bias inductor. high dynamic range. The ADL5610 has a high ESD rating of ±1.5 kV (Class 1C) and The ADL5610 provides a gain of 18 dB, which is stable over is fully specified for operation across a wide temperature range frequency, temperature, and power supply, and from device to of −40°C to +105°C. device. The amplifier is offered in the industry-standard SOT-89 A ful y populated RoHS-compliant evaluation board is available. package and is internal y matched to 50 Ω at the input and
