Datasheet ADL5610 (Analog Devices) - 3
| Manufacturer | Analog Devices |
| Description | 30 MHz to 6 GHz RF/IF Gain Block |
| Pages / Page | 16 / 3 — Data Sheet. ADL5610. SPECIFICATIONS. Table 1. Parameter. Test … |
| Revision | B |
| File Format / Size | PDF / 558 Kb |
| Document Language | English |

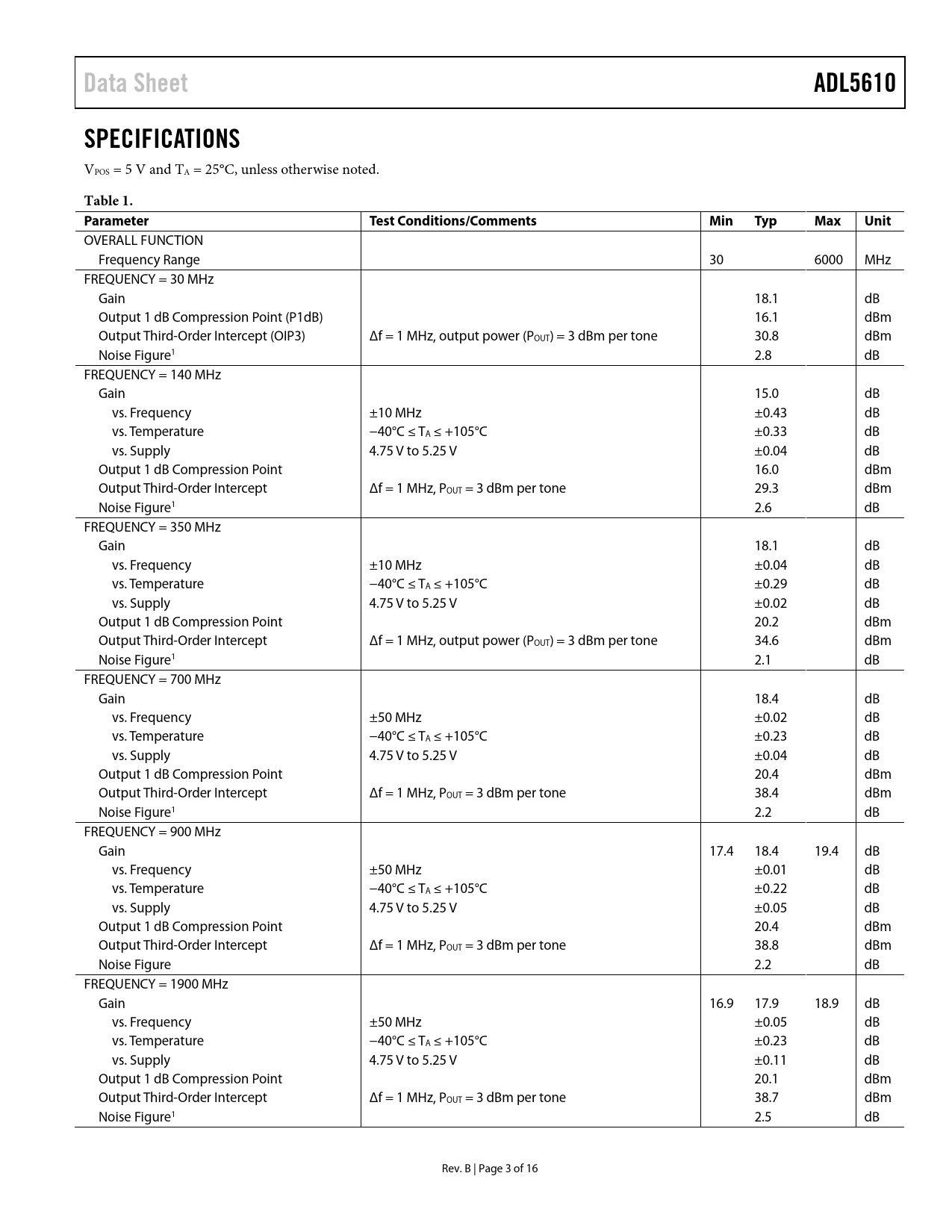

Data Sheet. ADL5610. SPECIFICATIONS. Table 1. Parameter. Test Conditions/Comments. Min. Typ. Max. Unit
Model Line for this Datasheet
Text Version of Document
link to page 5 link to page 5 link to page 5 link to page 5 link to page 5
Data Sheet ADL5610 SPECIFICATIONS
VPOS = 5 V and TA = 25°C, unless otherwise noted.
Table 1. Parameter Test Conditions/Comments Min Typ Max Unit
OVERALL FUNCTION Frequency Range 30 6000 MHz FREQUENCY = 30 MHz Gain 18.1 dB Output 1 dB Compression Point (P1dB) 16.1 dBm Output Third-Order Intercept (OIP3) Δf = 1 MHz, output power (POUT) = 3 dBm per tone 30.8 dBm Noise Figure1 2.8 dB FREQUENCY = 140 MHz Gain 15.0 dB vs. Frequency ±10 MHz ±0.43 dB vs. Temperature −40°C ≤ TA ≤ +105°C ±0.33 dB vs. Supply 4.75 V to 5.25 V ±0.04 dB Output 1 dB Compression Point 16.0 dBm Output Third-Order Intercept Δf = 1 MHz, POUT = 3 dBm per tone 29.3 dBm Noise Figure1 2.6 dB FREQUENCY = 350 MHz Gain 18.1 dB vs. Frequency ±10 MHz ±0.04 dB vs. Temperature −40°C ≤ TA ≤ +105°C ±0.29 dB vs. Supply 4.75 V to 5.25 V ±0.02 dB Output 1 dB Compression Point 20.2 dBm Output Third-Order Intercept Δf = 1 MHz, output power (POUT) = 3 dBm per tone 34.6 dBm Noise Figure1 2.1 dB FREQUENCY = 700 MHz Gain 18.4 dB vs. Frequency ±50 MHz ±0.02 dB vs. Temperature −40°C ≤ TA ≤ +105°C ±0.23 dB vs. Supply 4.75 V to 5.25 V ±0.04 dB Output 1 dB Compression Point 20.4 dBm Output Third-Order Intercept Δf = 1 MHz, POUT = 3 dBm per tone 38.4 dBm Noise Figure1 2.2 dB FREQUENCY = 900 MHz Gain 17.4 18.4 19.4 dB vs. Frequency ±50 MHz ±0.01 dB vs. Temperature −40°C ≤ TA ≤ +105°C ±0.22 dB vs. Supply 4.75 V to 5.25 V ±0.05 dB Output 1 dB Compression Point 20.4 dBm Output Third-Order Intercept Δf = 1 MHz, POUT = 3 dBm per tone 38.8 dBm Noise Figure 2.2 dB FREQUENCY = 1900 MHz Gain 16.9 17.9 18.9 dB vs. Frequency ±50 MHz ±0.05 dB vs. Temperature −40°C ≤ TA ≤ +105°C ±0.23 dB vs. Supply 4.75 V to 5.25 V ±0.11 dB Output 1 dB Compression Point 20.1 dBm Output Third-Order Intercept Δf = 1 MHz, POUT = 3 dBm per tone 38.7 dBm Noise Figure1 2.5 dB Rev. B | Page 3 of 16 Document Outline Features Functional Block Diagram General Description Table of Contents Revision History Specifications Typical Scattering Parameters (S-Parameters) Absolute Maximum Ratings Thermal Resistance ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics 500 MHz to 6 GHz Frequency Band 30 MHz to 500 MHz Frequency Band General Applications Information Basic Connections Soldering Information and Recommended PCB Land Pattern W-CDMA ACPR Performance Evaluation Board Outline Dimensions Ordering Guide
Data Sheet ADL5610 SPECIFICATIONS
VPOS = 5 V and TA = 25°C, unless otherwise noted.
Table 1. Parameter Test Conditions/Comments Min Typ Max Unit
