Datasheet ADL5542 (Analog Devices) - 6
| Manufacturer | Analog Devices |
| Description | 20 MHz to 6 GHz RF/IF Gain Block |
| Pages / Page | 13 / 6 — ADL5542. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 3. ESD CAUTION. … |
| Revision | C |
| File Format / Size | PDF / 268 Kb |
| Document Language | English |

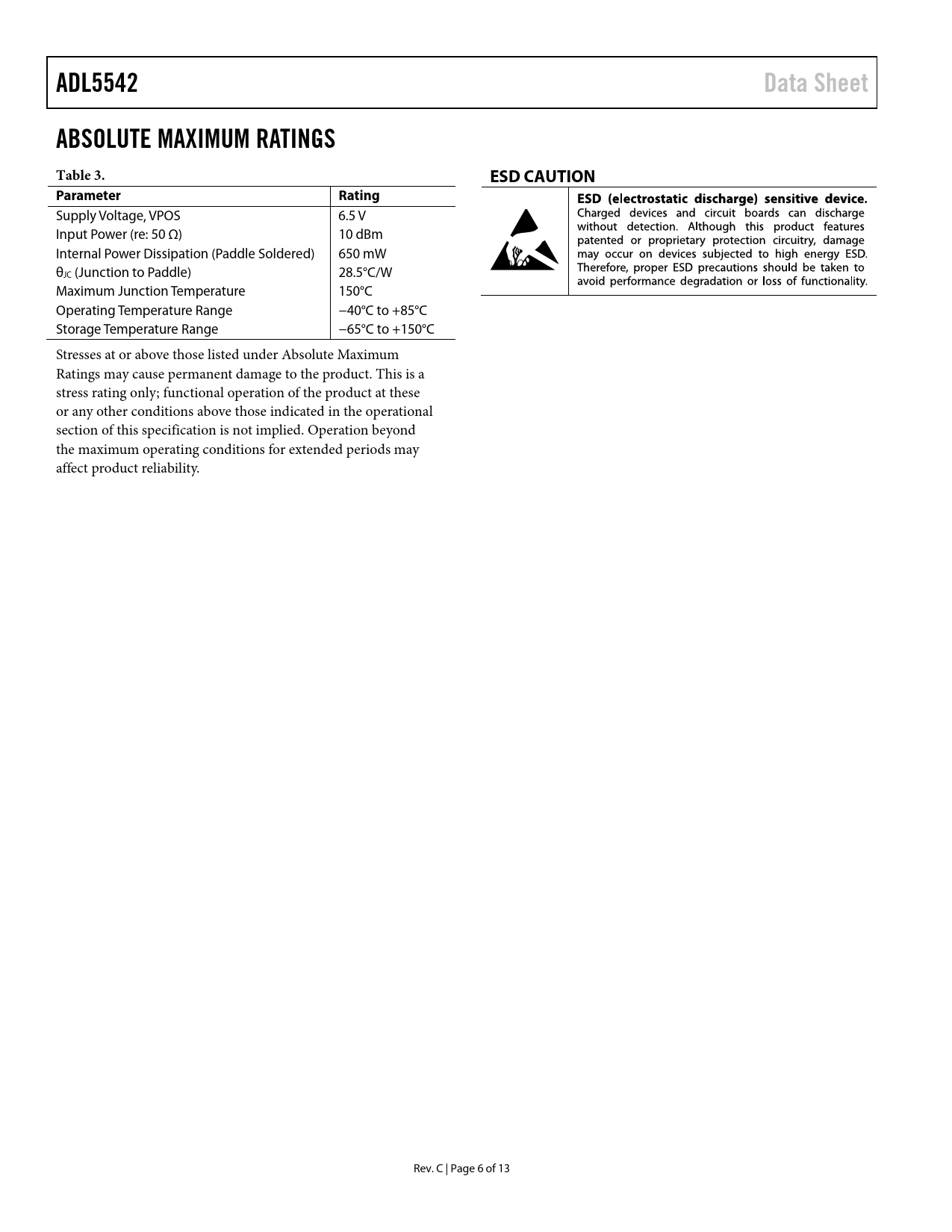

ADL5542. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 3. ESD CAUTION. Parameter. Rating
Model Line for this Datasheet
Text Version of Document
ADL5542 Data Sheet ABSOLUTE MAXIMUM RATINGS Table 3. ESD CAUTION Parameter Rating
Supply Voltage, VPOS 6.5 V Input Power (re: 50 Ω) 10 dBm Internal Power Dissipation (Paddle Soldered) 650 mW θ JC (Junction to Paddle) 28.5°C/W
Maximum Junction Temperature 150°C
Operating Temperature Range −40°C to +85°C Storage Temperature Range −65°C to +150°C Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational section of this specification is not implied. Operation beyond the maximum operating conditions for extended periods may affect product reliability. Rev. C | Page 6 of 13 Document Outline FEATURES FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS TYPICAL SCATTERING PARAMETERS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS OPERATING TO 20 MHz BASIC CONNECTIONS SOLDERING INFORMATION AND RECOMMENDED PCB LAND PATTERN EVALUATION BOARD OUTLINE DIMENSIONS ORDERING GUIDE
