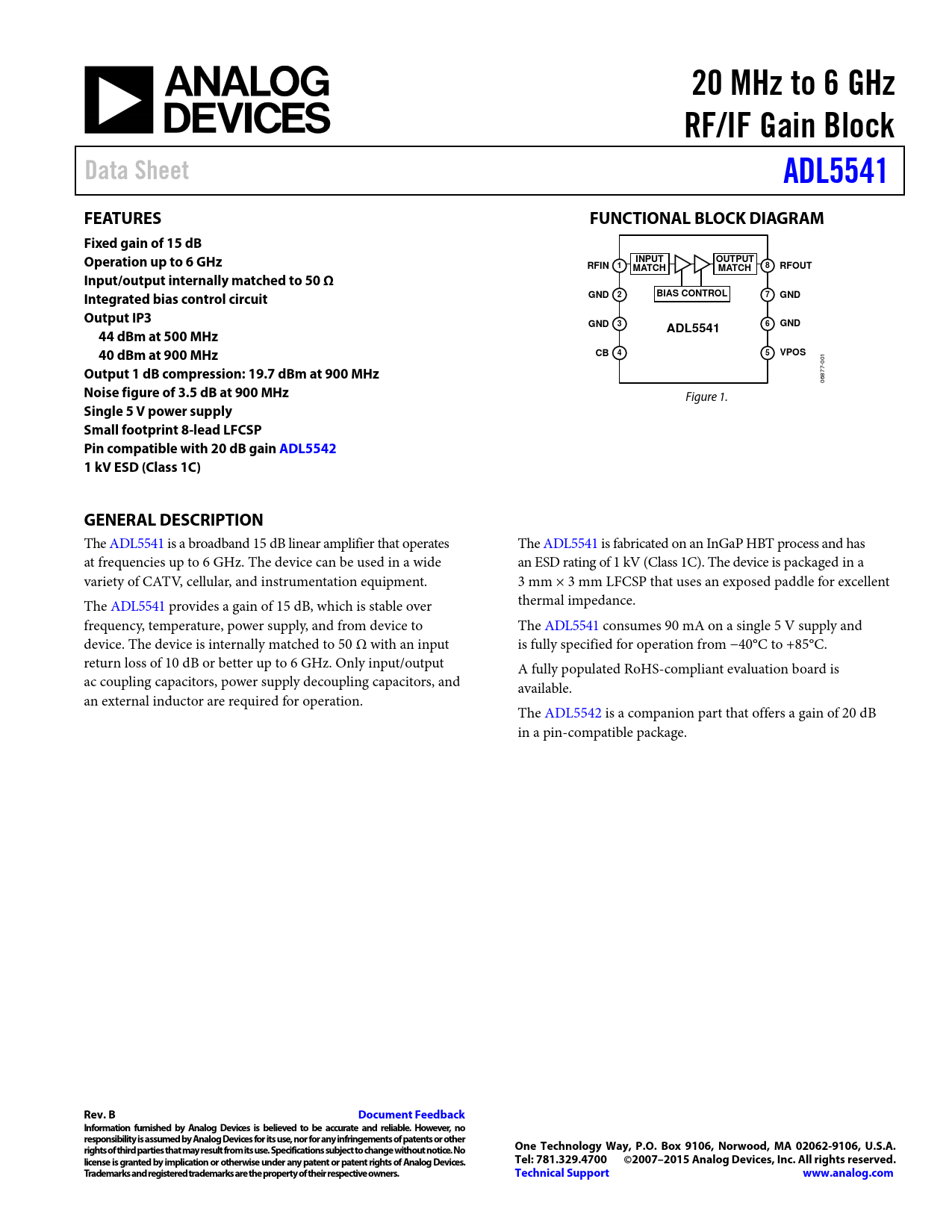

20 MHz to 6 GHz. RF/IF Gain Block. Data Sheet. ADL5541. FEATURES. FUNCTIONAL BLOCK DIAGRAM
Model Line for this Datasheet
Text Version of Document
20 MHz to 6 GHz RF/IF Gain Block Data Sheet ADL5541 FEATURES FUNCTIONAL BLOCK DIAGRAM Fixed gain of 15 dB Operation up to 6 GHz INPUT OUTPUT RFIN 1 8 RFOUT MATCH MATCH Input/output internally matched to 50 Ω Integrated bias control circuit GND 2 BIAS CONTROL 7 GND Output IP3 GND 3 6 GND ADL5541 44 dBm at 500 MHz 40 dBm at 900 MHz CB 4 5 VPOS
001
Output 1 dB compression: 19.7 dBm at 900 MHz
06877-
Noise figure of 3.5 dB at 900 MHz
Figure 1.
Single 5 V power supply Small footprint 8-lead LFCSP Pin compatible with 20 dB gain ADL5542 1 kV ESD (Class 1C) GENERAL DESCRIPTION
The ADL5541 is a broadband 15 dB linear amplifier that operates The ADL5541 is fabricated on an InGaP HBT process and has at frequencies up to 6 GHz. The device can be used in a wide an ESD rating of 1 kV (Class 1C). The device is packaged in a variety of CATV, cellular, and instrumentation equipment. 3 mm × 3 mm LFCSP that uses an exposed paddle for excel ent The ADL5541 provides a gain of 15 dB, which is stable over thermal impedance. frequency, temperature, power supply, and from device to The ADL5541 consumes 90 mA on a single 5 V supply and device. The device is internally matched to 50 Ω with an input is ful y specified for operation from −40°C to +85°C. return loss of 10 dB or better up to 6 GHz. Only input/output A fully populated RoHS-compliant evaluation board is ac coupling capacitors, power supply decoupling capacitors, and available. an external inductor are required for operation. The ADL5542 is a companion part that offers a gain of 20 dB in a pin-compatible package.
