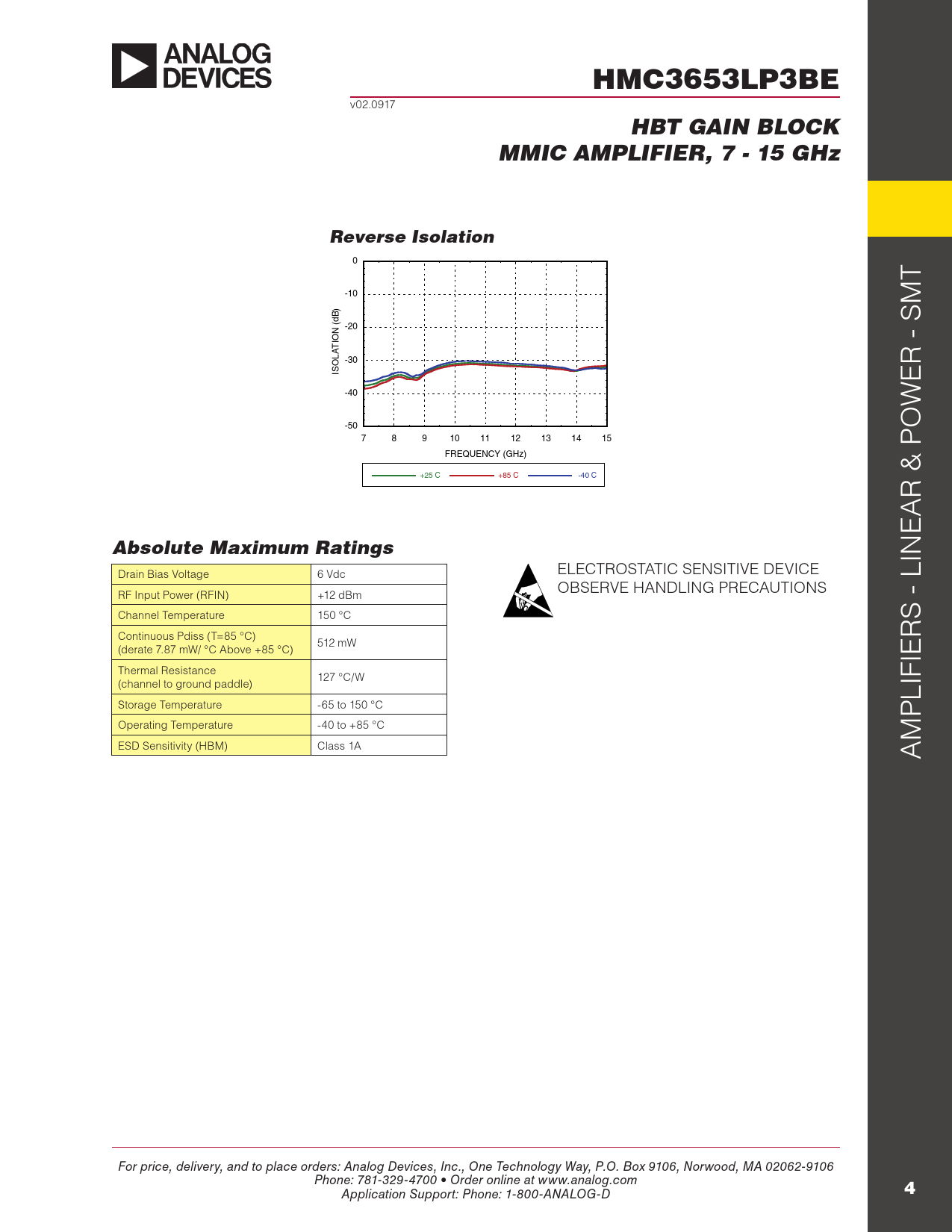

HMC3653LP3BE. HBT GAIN BLOCK. MMIC AMPLIFIER, 7 - 15 GHz. Reverse Isolation. Absolute Maximum Ratings
Model Line for this Datasheet
Text Version of Document
HMC3653LP3BE
v02.0917
HBT GAIN BLOCK MMIC AMPLIFIER, 7 - 15 GHz Reverse Isolation
0 T -10 m ) (dB s -20 N IO T LA -30 O IS er - -40 w -50 7 8 9 10 11 12 13 14 15 po FREQUENCY (GHz) +25 C +85 C -40 C r & A e
Absolute Maximum Ratings
Drain Bias Voltage 6 Vdc eleCTrosTATiC sensiTiVe DeViCe lin oBserVe HAnDlinG preCAUTions rf input power (rfin) +12 dBm Channel Temperature 150 °C s - Continuous pdiss (T=85 °C) 512 mw (derate 7.87 mw/ °C Above +85 °C) Thermal resistance 127 °C/w (channel to ground paddle) storage Temperature -65 to 150 °C plifier operating Temperature -40 to +85 °C m esD sensitivity (HBm) Class 1A A For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at www.analog.com Application Support: Phone: 1-800-ANALOG-D
4
