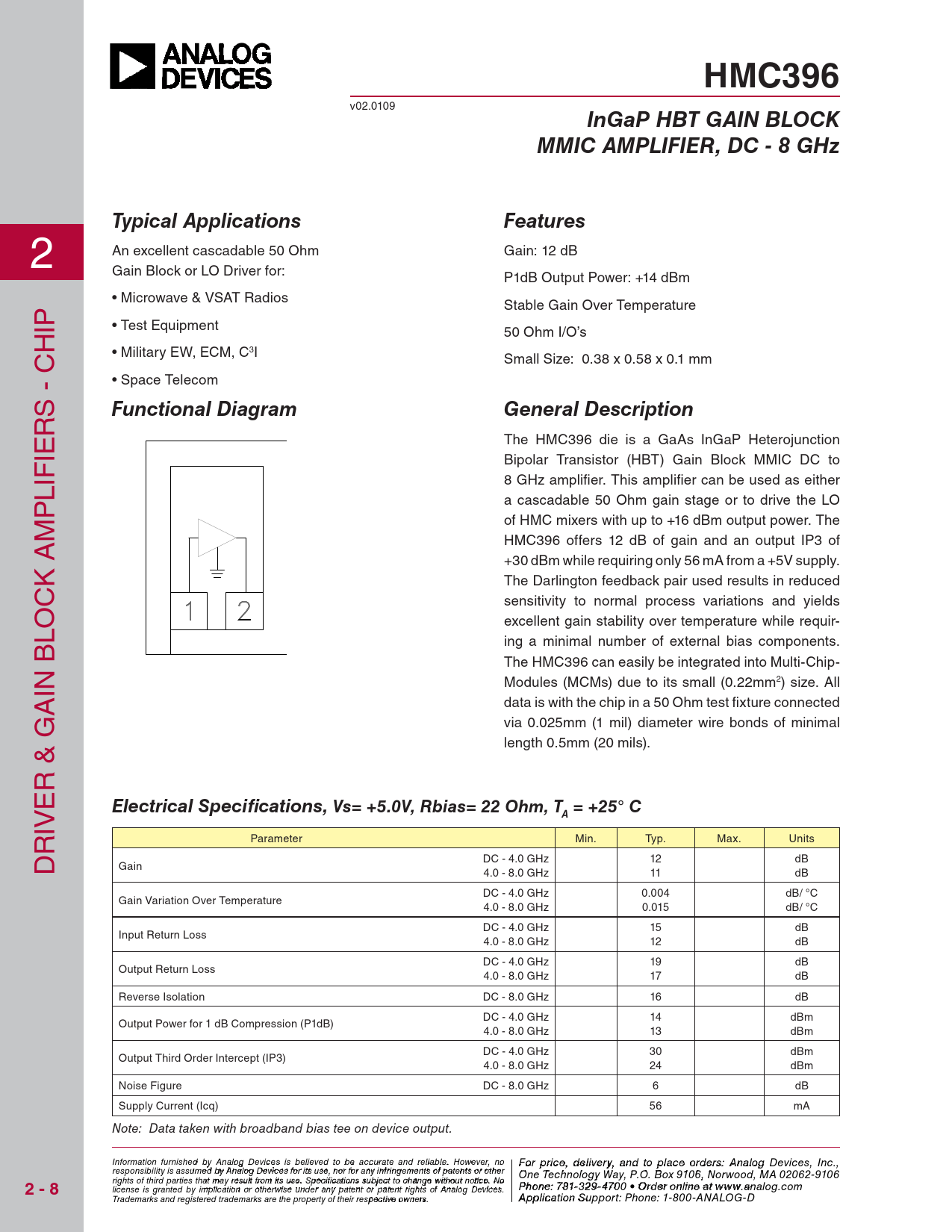

HMC396
v02.0109
InGaP HBT GAIN BLOCK MMIC AMPLIFIER, DC - 8 GHz Typical Applications Features
2 An excellent cascadable 50 Ohm Gain: 12 dB Gain Block or LO Driver for: P1dB Output Power: +14 dBm • Microwave & VSAT Radios Stable Gain Over Temperature IP • Test Equipment 50 Ohm I/O’s H • Military EW, ECM, C3I Small Size: 0.38 x 0.58 x 0.1 mm - C • Space Telecom S
Functional Diagram General Description
R The HMC396 die is a GaAs InGaP Heterojunction IE Bipolar Transistor (HBT) Gain Block MMIC DC to IF 8 GHz amplifi er. This amplifi er can be used as either L P a cascadable 50 Ohm gain stage or to drive the LO of HMC mixers with up to +16 dBm output power. The M HMC396 offers 12 dB of gain and an output IP3 of +30 dBm while requiring only 56 mA from a +5V supply. K A The Darlington feedback pair used results in reduced sensitivity to normal process variations and yields OC excellent gain stability over temperature while requir- ing a minimal number of external bias components. BL The HMC396 can easily be integrated into Multi-Chip- IN Modules (MCMs) due to its small (0.22mm2) size. All A data is with the chip in a 50 Ohm test fi xture connected via 0.025mm (1 mil) diameter wire bonds of minimal length 0.5mm (20 mils). & G R E
Electrical Specifi cations, Vs= +5.0V, Rbias= 22 Ohm, T = +25° C
IV
A
R Parameter Min. Typ. Max. Units D DC - 4.0 GHz 12 dB Gain 4.0 - 8.0 GHz 11 dB DC - 4.0 GHz 0.004 dB/ °C Gain Variation Over Temperature 4.0 - 8.0 GHz 0.015 dB/ °C DC - 4.0 GHz 15 dB Input Return Loss 4.0 - 8.0 GHz 12 dB DC - 4.0 GHz 19 dB Output Return Loss 4.0 - 8.0 GHz 17 dB Reverse Isolation DC - 8.0 GHz 16 dB DC - 4.0 GHz 14 dBm Output Power for 1 dB Compression (P1dB) 4.0 - 8.0 GHz 13 dBm DC - 4.0 GHz 30 dBm Output Third Order Intercept (IP3) 4.0 - 8.0 GHz 24 dBm Noise Figure DC - 8.0 GHz 6 dB Supply Current (Icq) 56 mA Note: Data taken with broadband bias tee on device output. Information furnish F ed obr pri y Anal ce, de og Device li s vie s r beyli, a eve nd to pla d to be accura ce o te and rder reliabl s e , pl . Ho ease co wever, no For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other ntact Hittite Microwave Corporation: One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 rights of third parties that may result from its use. Specifications subject to change without notice. No
2 - 8
20 Alpha Road, Chelmsford, MA 01824 Phone: 978 Phon - e 25 : 7 0 81--3 32 3 9 4 - 3 F 70 ax 0 • O : 978 rder on -li25 n 0 e a - t 33 ww 73 license is granted by implication or otherwise under any patent or patent rights of Analog Devices. w.analog.com Order On Trademarks and registered trademarks are the property of their respective owners. -line at www.h A it p tpite.co licatio m n Support: Phone: 1-800-ANALOG-D
