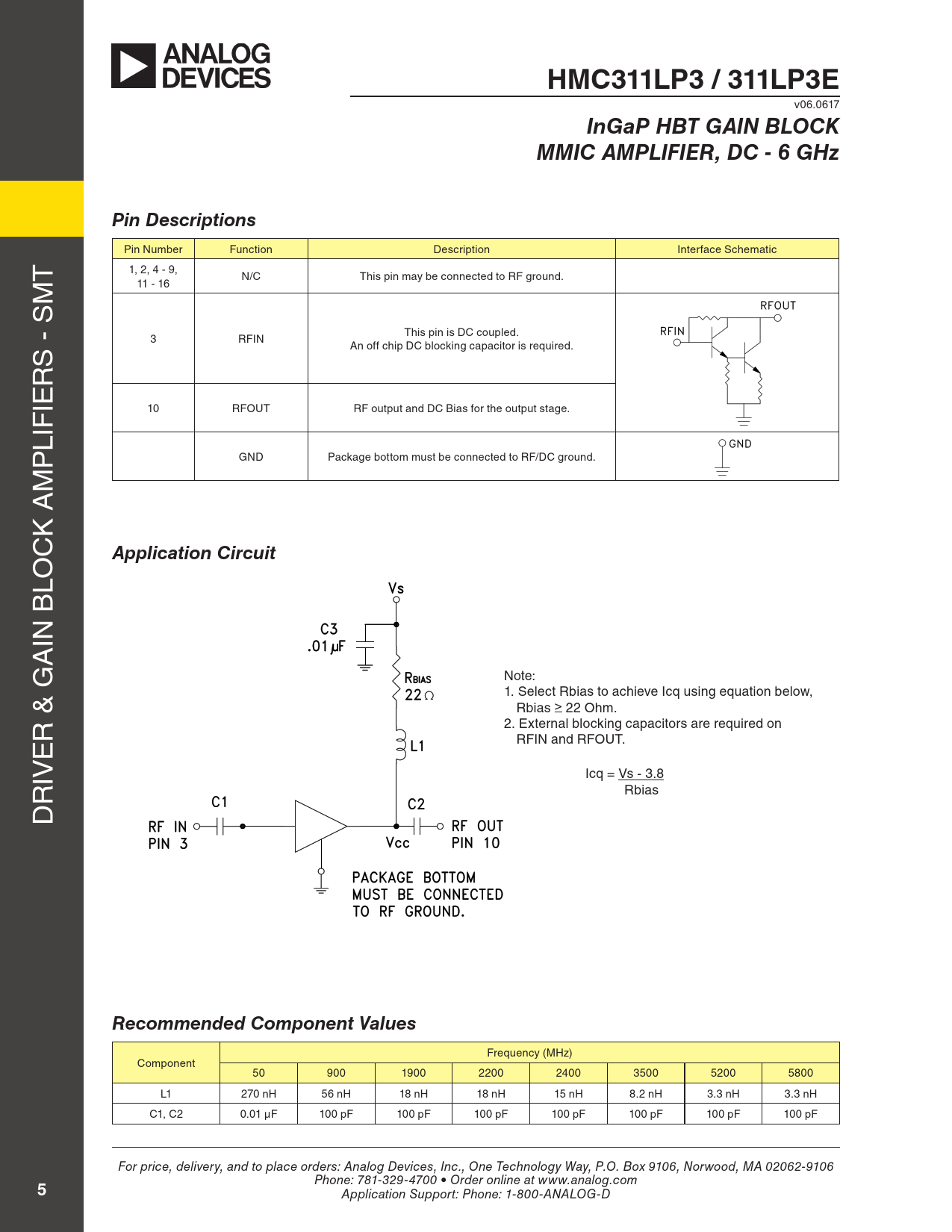

HMC311LP3 / 311LP3E. InGaP HBT GAIN BLOCK. MMIC AMPLIFIER, DC - 6 GHz. Pin Descriptions. Application Circuit
Text Version of Document
HMC311LP3 / 311LP3E
v06.0617
InGaP HBT GAIN BLOCK MMIC AMPLIFIER, DC - 6 GHz Pin Descriptions
Pin Number Function Description Interface Schematic T 1, 2, 4 - 9, N/C This pin may be connected to RF ground. M 11 - 16 This pin is DC coupled. 3 RFIN S - S An off chip DC blocking capacitor is required. R IE 10 RFOUT RF output and DC Bias for the output stage. LIF P GND Package bottom must be connected to RF/DC ground. M K A C
Application Circuit
LO IN B A Note: 1. Select Rbias to achieve Icq using equation below, Rbias > 22 Ohm. R & G 2. External blocking capacitors are required on E RFIN and RFOUT. IV Icq = Vs - 3.8 R Rbias D
Recommended Component Values
Frequency (MHz) Component 50 900 1900 2200 2400 3500 5200 5800 L1 270 nH 56 nH 18 nH 18 nH 15 nH 8.2 nH 3.3 nH 3.3 nH C1, C2 0.01 µF 100 pF 100 pF 100 pF 100 pF 100 pF 100 pF 100 pF For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at www.analog.com
