Datasheet CMSH1-20, CMSH1-40, CMSH1-60, CMSH1-100 (Central Semiconductor) - 2
| Manufacturer | Central Semiconductor |
| Description | Surface mount Rectifier-Schottky (>=1A) Single |
| Pages / Page | 7 / 2 — CMSH1-20. CMSH1-60. CMSH1-40. CMSH1-100. SURFACE MOUNT SILICON. SCHOTTKY … |
| File Format / Size | PDF / 827 Kb |
| Document Language | English |
CMSH1-20. CMSH1-60. CMSH1-40. CMSH1-100. SURFACE MOUNT SILICON. SCHOTTKY RECTIFIERS. 1.0 AMP, 20 THRU 100 VOLT
Model Line for this Datasheet
Text Version of Document

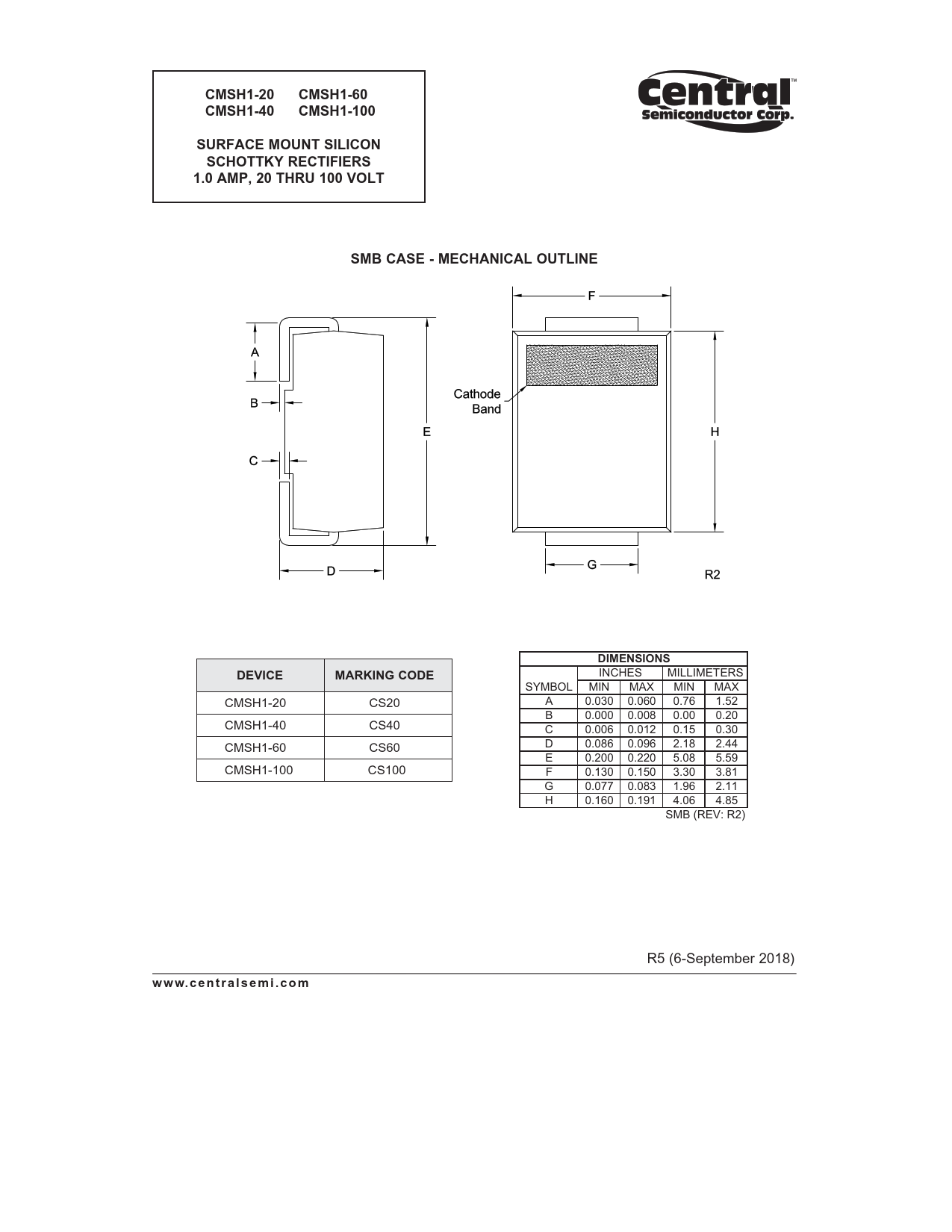

CMSH1-20 CMSH1-60 CMSH1-40 CMSH1-100 SURFACE MOUNT SILICON SCHOTTKY RECTIFIERS 1.0 AMP, 20 THRU 100 VOLT SMB CASE - MECHANICAL OUTLINE DIMENSIONS
INCHES MILLIMETERS
DEVICE MARKING CODE
SYMBOL MIN MAX MIN MAX CMSH1-20 CS20 A 0.030 0.060 0.76 1.52 B 0.000 0.008 0.00 0.20 CMSH1-40 CS40 C 0.006 0.012 0.15 0.30 D 0.086 0.096 2.18 2.44 CMSH1-60 CS60 E 0.200 0.220 5.08 5.59 CMSH1-100 CS100 F 0.130 0.150 3.30 3.81 G 0.077 0.083 1.96 2.11 H 0.160 0.191 4.06 4.85 SMB (REV: R2) R5 (6-September 2018)
