Datasheet PI3EQX16904GL (Diodes)
| Manufacturer | Diodes |
| Description | 4 Channel Pcie 4.0 Redriver With Linear Type |
| Pages / Page | 1 / 1 — Lead-free Green. PRODUCT BRIEF. PI3EQX16904GL. 16Gbps 4-Channel ReDriver … |
| File Format / Size | PDF / 510 Kb |
| Document Language | English |
Lead-free Green. PRODUCT BRIEF. PI3EQX16904GL. 16Gbps 4-Channel ReDriver with Linear Equalization. Features. Description
Model Line for this Datasheet
Text Version of Document
A product Line of
b P
Diodes Incorporated

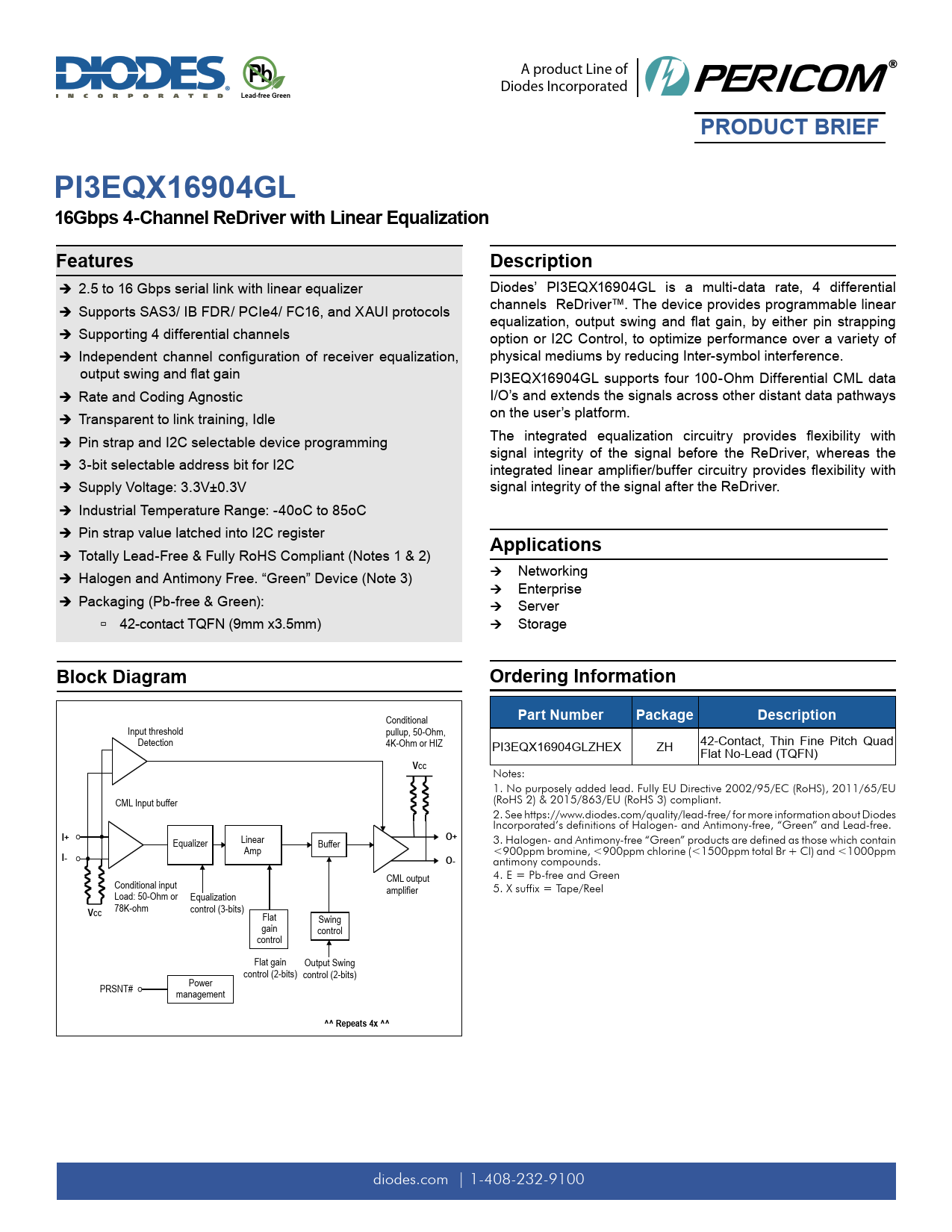

Lead-free Green PRODUCT BRIEF PI3EQX16904GL 16Gbps 4-Channel ReDriver with Linear Equalization Features Description
¼ Î 2.5 to 16 Gbps serial link with linear equalizer Diodes’ PI3EQX16904GL is a multi-data rate, 4 differential channels ReDriver™. The device provides programmable linear ¼ Î Supports SAS3/ IB FDR/ PCIe4/ FC16, and XAUI protocols equalization, output swing and flat gain, by either pin strapping ¼ Î Supporting 4 differential channels option or I2C Control, to optimize performance over a variety of ¼ Î Independent channel configuration of receiver equalization, physical mediums by reducing Inter-symbol interference. output swing and flat gain PI3EQX16904GL supports four 100-Ohm Differential CML data ¼ Î Rate and Coding Agnostic I/O’s and extends the signals across other distant data pathways on the user’s platform. ¼ Î Transparent to link training, Idle The integrated equalization circuitry provides flexibility with ¼ Î Pin strap and I2C selectable device programming signal integrity of the signal before the ReDriver, whereas the ¼ Î 3-bit selectable address bit for I2C integrated linear amplifier/buffer circuitry provides flexibility with ¼ Î Supply Voltage: 3.3V±0.3V signal integrity of the signal after the ReDriver. ¼ Î Industrial Temperature Range: -40oC to 85oC ¼ Î Pin strap value latched into I2C register
Applications
¼ Î Total y Lead-Free & Ful y RoHS Compliant (Notes 1 & 2) ¼¼ Networking ¼ Î Halogen and Antimony Free. “Green” Device (Note 3) ¼¼ Enterprise ¼ Î Packaging (Pb-free & Green): ¼¼ Server ¼ ß 42-contact TQFN (9mm x3.5mm) ¼¼ Storage
Block Diagram Ordering Information
Conditional
Part Number Package Description
Input threshold pullup, 50-Ohm, Detection 4K-Ohm or HIZ PI3EQX16904GLZHEX ZH 42-Contact, Thin Fine Pitch Quad Flat No-Lead (TQFN)
VCC
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. CML Input buffer 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, “Green” and Lead-free.
I+ O+
3. Halogen- and Antimony-free “Green” products are defined as those which contain Equalizer Linear Buffer Amp <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm
I- O-
antimony compounds. 4. E = Pb-free and Green CML output Conditional input amplifier 5. X suffix = Tape/Reel Load: 50-Ohm or Equalization
V
78K-ohm control (3-bits)
CC
Flat Swing gain control control Flat gain Output Swing control (2-bits) control (2-bits) Power PRSNT# management
^^ Repeats 4x ^^
Page 1 of 1 diodes.com | 1-408-232-9100
