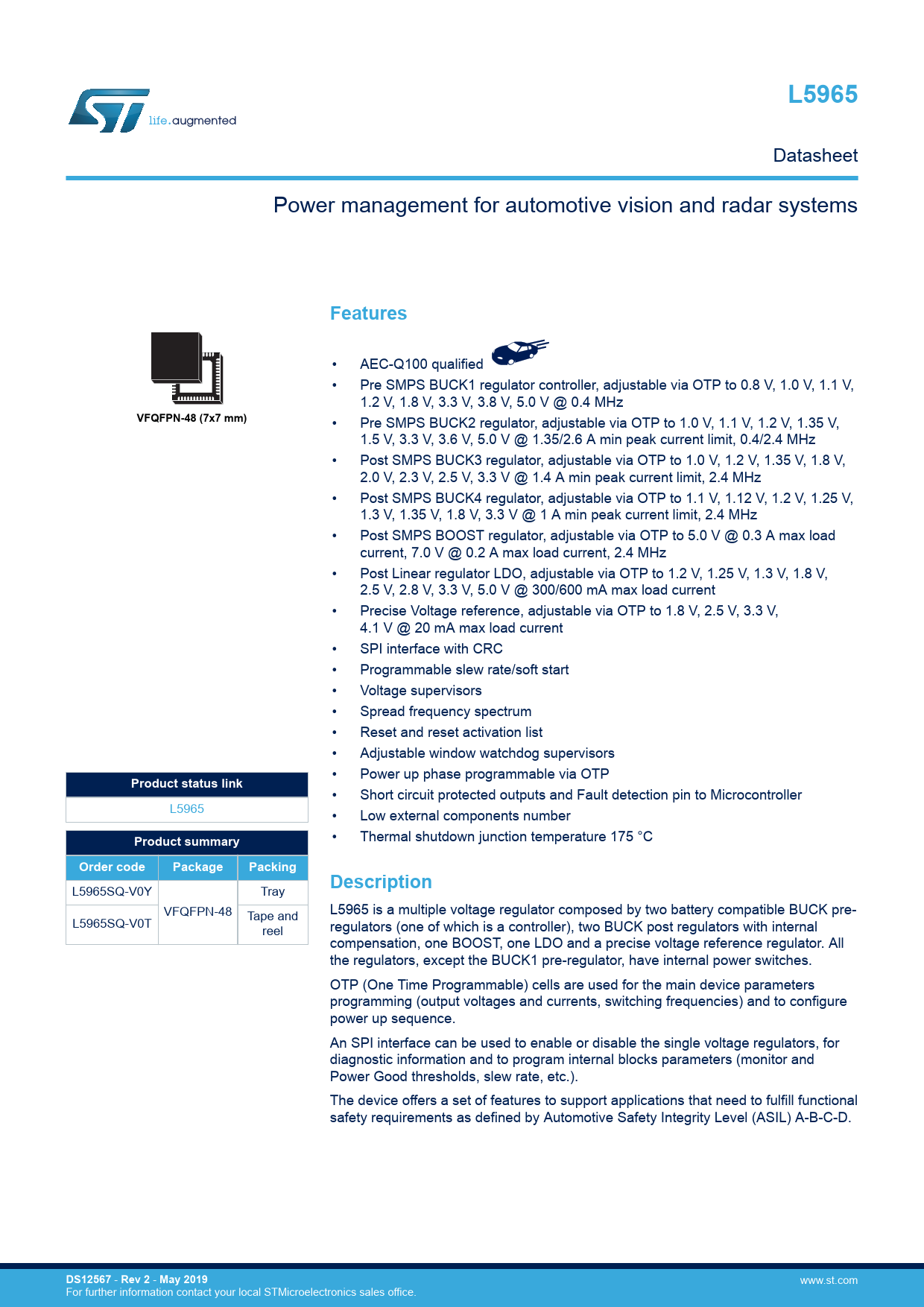

L5965
Datasheet Power management for automotive vision and radar systems
Features
• AEC-Q100 qualified • Pre SMPS BUCK1 regulator controller, adjustable via OTP to 0.8 V, 1.0 V, 1.1 V, 1.2 V, 1.8 V, 3.3 V, 3.8 V, 5.0 V @ 0.4 MHz
VFQFPN-48 (7x7 mm)
• Pre SMPS BUCK2 regulator, adjustable via OTP to 1.0 V, 1.1 V, 1.2 V, 1.35 V, 1.5 V, 3.3 V, 3.6 V, 5.0 V @ 1.35/2.6 A min peak current limit, 0.4/2.4 MHz GAPGPS03203 • Post SMPS BUCK3 regulator, adjustable via OTP to 1.0 V, 1.2 V, 1.35 V, 1.8 V, 2.0 V, 2.3 V, 2.5 V, 3.3 V @ 1.4 A min peak current limit, 2.4 MHz • Post SMPS BUCK4 regulator, adjustable via OTP to 1.1 V, 1.12 V, 1.2 V, 1.25 V, 1.3 V, 1.35 V, 1.8 V, 3.3 V @ 1 A min peak current limit, 2.4 MHz • Post SMPS BOOST regulator, adjustable via OTP to 5.0 V @ 0.3 A max load current, 7.0 V @ 0.2 A max load current, 2.4 MHz • Post Linear regulator LDO, adjustable via OTP to 1.2 V, 1.25 V, 1.3 V, 1.8 V, 2.5 V, 2.8 V, 3.3 V, 5.0 V @ 300/600 mA max load current • Precise Voltage reference, adjustable via OTP to 1.8 V, 2.5 V, 3.3 V, 4.1 V @ 20 mA max load current • SPI interface with CRC • Programmable slew rate/soft start • Voltage supervisors • Spread frequency spectrum • Reset and reset activation list • Adjustable window watchdog supervisors • Power up phase programmable via OTP
Product status link
• Short circuit protected outputs and Fault detection pin to Microcontroller L5965 • Low external components number • Thermal shutdown junction temperature 175 °C
Product summary Order code Package Packing Description
L5965SQ-V0Y Tray VFQFPN-48 L5965 is a multiple voltage regulator composed by two battery compatible BUCK pre- Tape and L5965SQ-V0T regulators (one of which is a controller), two BUCK post regulators with internal reel compensation, one BOOST, one LDO and a precise voltage reference regulator. All the regulators, except the BUCK1 pre-regulator, have internal power switches. OTP (One Time Programmable) cells are used for the main device parameters programming (output voltages and currents, switching frequencies) and to configure power up sequence. An SPI interface can be used to enable or disable the single voltage regulators, for diagnostic information and to program internal blocks parameters (monitor and Power Good thresholds, slew rate, etc.). The device offers a set of features to support applications that need to fulfill functional safety requirements as defined by Automotive Safety Integrity Level (ASIL) A-B-C-D.
DS12567
-
Rev 2
-
May 2019
