Part. Weight. Parts/Reel. Number. (MAX). (NOM). PA0512/PA1212. PA0511/PA1211. PA0515. PA0513/PA1513. PA0512NL & PA1212NL
Model Line for this Datasheet
- PA0511.101NL PA0511.101NLT PA0511.151NL PA0511.151NLT PA0511.221NL PA0511.221NLT PA0511.850NL PA0511.850NLT PA0511.900NL PA0511.900NLT
- PA0513.211NL PA0513.211NLT PA0513.261NL PA0513.261NLT PA0513.321NL PA0513.321NLT PA0513.441NL PA0513.441NLT
- PA0515.221NL PA0515.221NLT PA0515.271NL PA0515.271NLT PA0515.321NL PA0515.321NLT PA0515.471NL PA0515.471NLT
Text Version of Document

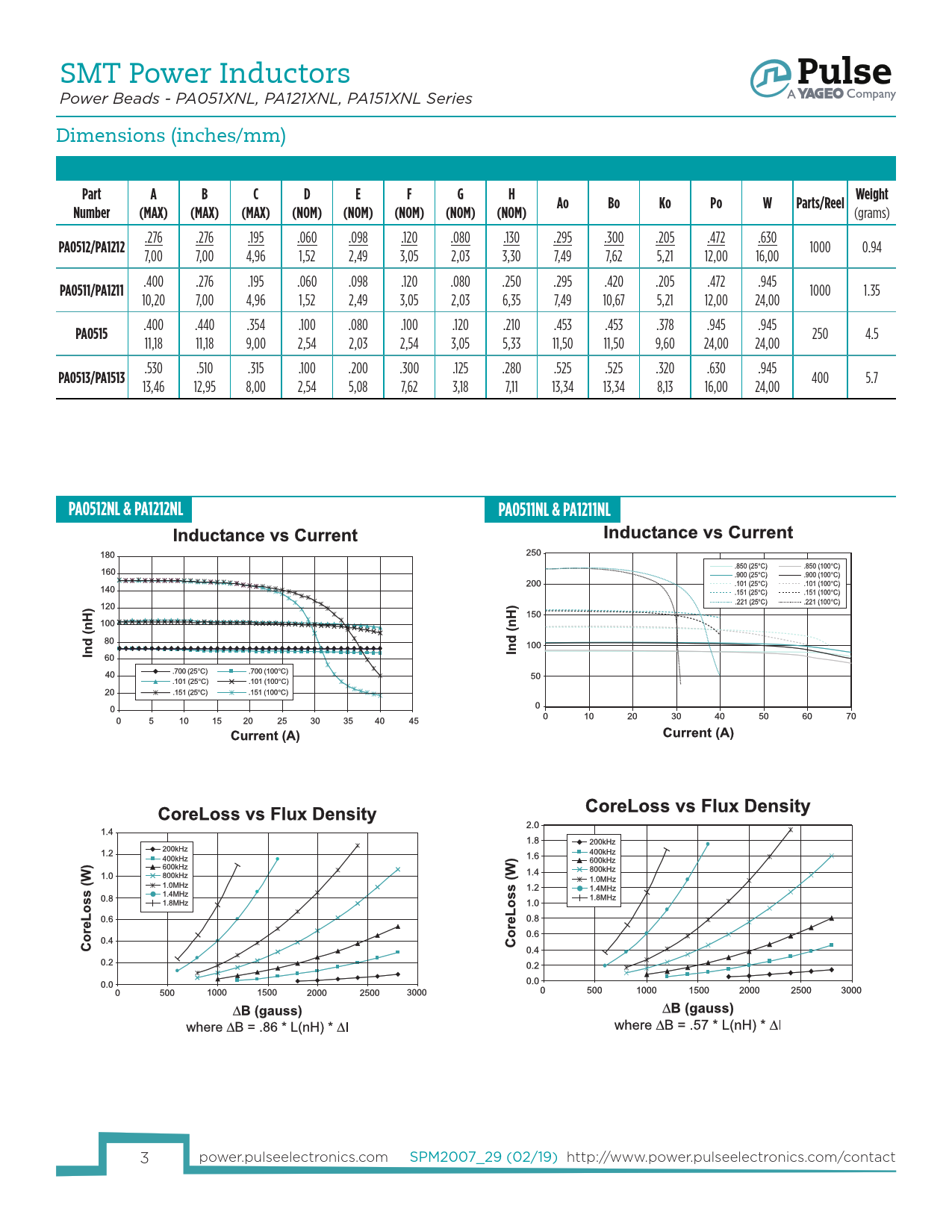

SMT Power Inductors Power Beads - PA051XNL, PA121XNL, PA151XNL Series Dimensions (inches/mm)
Part A B C D E F G H Weight Ao Bo Ko Po W Parts/Reel Number (MAX) (MAX) (MAX) (NOM) (NOM) (NOM) (NOM) (NOM)
(grams) .276 .276 .195 .060 .098 .120 .080 .130 .295 .300 .205 .472 .630
PA0512/PA1212
1000 0.94 7,00 7,00 4,96 1,52 2,49 3,05 2,03 3,30 7,49 7,62 5,21 12,00 16,00 .400 .276 .195 .060 .098 .120 .080 .250 .295 .420 .205 .472 .945
PA0511/PA1211
1000 1.35 10,20 7,00 4,96 1,52 2,49 3,05 2,03 6,35 7,49 10,67 5,21 12,00 24,00 .400 .440 .354 .100 .080 .100 .120 .210 .453 .453 .378 .945 .945
PA0515
250 4.5 11,18 11,18 9,00 2,54 2,03 2,54 3,05 5,33 11,50 11,50 9,60 24,00 24,00 .530 .510 .315 .100 .200 .300 .125 .280 .525 .525 .320 .630 .945
PA0513/PA1513
400 5.7 13,46 12,95 8,00 2,54 5,08 7,62 3,18 7,1 13,34 13,34 8,13 16,00 24,00
PA0512NL & PA1212NL PA0511NL & PA1211NL
3 power.pulseelectronics.com SPM2007_29 (02/19) http://www.power.pulseelectronics.com/contact
Part A B C D E F G H Weight Ao Bo Ko Po W Parts/Reel Number (MAX) (MAX) (MAX) (NOM) (NOM) (NOM) (NOM) (NOM)
(grams) .276 .276 .195 .060 .098 .120 .080 .130 .295 .300 .205 .472 .630
PA0512/PA1212
1000 0.94 7,00 7,00 4,96 1,52 2,49 3,05 2,03 3,30 7,49 7,62 5,21 12,00 16,00 .400 .276 .195 .060 .098 .120 .080 .250 .295 .420 .205 .472 .945
PA0511/PA1211
1000 1.35 10,20 7,00 4,96 1,52 2,49 3,05 2,03 6,35 7,49 10,67 5,21 12,00 24,00 .400 .440 .354 .100 .080 .100 .120 .210 .453 .453 .378 .945 .945
PA0515
250 4.5 11,18 11,18 9,00 2,54 2,03 2,54 3,05 5,33 11,50 11,50 9,60 24,00 24,00 .530 .510 .315 .100 .200 .300 .125 .280 .525 .525 .320 .630 .945
PA0513/PA1513
400 5.7 13,46 12,95 8,00 2,54 5,08 7,62 3,18 7,1 13,34 13,34 8,13 16,00 24,00
PA0512NL & PA1212NL PA0511NL & PA1211NL
