Datasheet Addendum XPL536800.000000I (IDT)
| Manufacturer | IDT |
| Description | 150fs Quartz-based PLL Oscillator |
| Pages / Page | 1 / 1 — 800.000000 MHz Crystal. XPL536800.000000I. Oscillator. Datasheet … |
| Revision | 20190520 |
| File Format / Size | PDF / 85 Kb |
| Document Language | English |

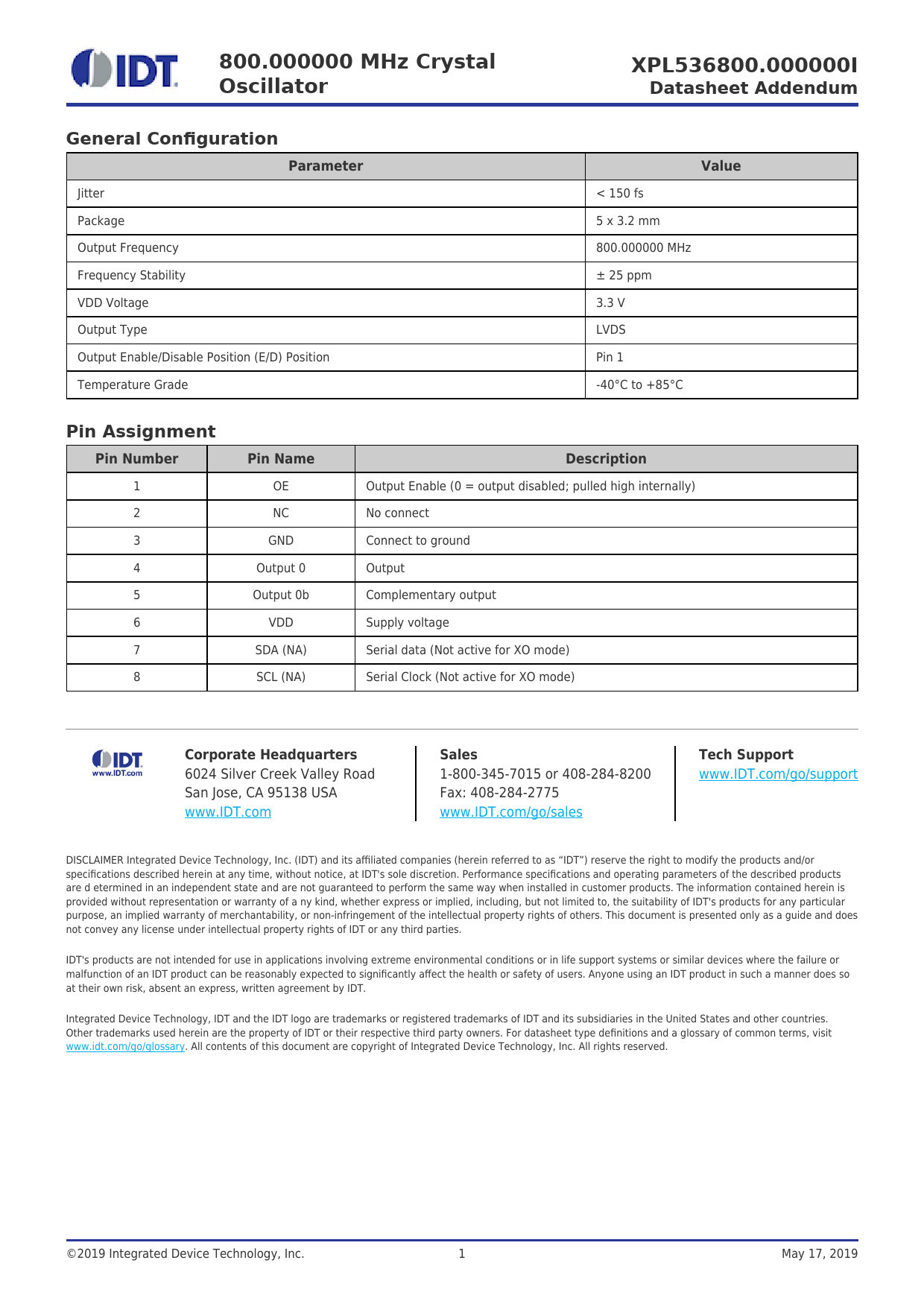

800.000000 MHz Crystal. XPL536800.000000I. Oscillator. Datasheet Addendum. General Configuration. Parameter. Value. Pin Assignment
Model Line for this Datasheet
Text Version of Document
800.000000 MHz Crystal XPL536800.000000I Oscillator Datasheet Addendum General Configuration Parameter Value
Jitter < 150 fs Package 5 x 3.2 mm Output Frequency 800.000000 MHz Frequency Stability ± 25 ppm VDD Voltage 3.3 V Output Type LVDS Output Enable/Disable Position (E/D) Position Pin 1 Temperature Grade -40°C to +85°C
Pin Assignment Pin Number Pin Name Description
1 OE Output Enable (0 = output disabled; pulled high internally) 2 NC No connect 3 GND Connect to ground 4 Output 0 Output 5 Output 0b Complementary output 6 VDD Supply voltage 7 SDA (NA) Serial data (Not active for XO mode) 8 SCL (NA) Serial Clock (Not active for XO mode)
