Datasheet MA12070P (Infineon) - 4
| Manufacturer | Infineon |
| Description | 2x80W ultra power efficient, fully integrated audio amplifier IC with I2S digital input |
| Pages / Page | 88 / 4 — 4 Pin Description. Figure 4-1 Pinout MA12070PQFN. www.infineon.com |
| Revision | 01_00 |
| File Format / Size | PDF / 1.9 Mb |
| Document Language | English |
4 Pin Description. Figure 4-1 Pinout MA12070PQFN. www.infineon.com
Model Line for this Datasheet
Text Version of Document
4 Pin Description

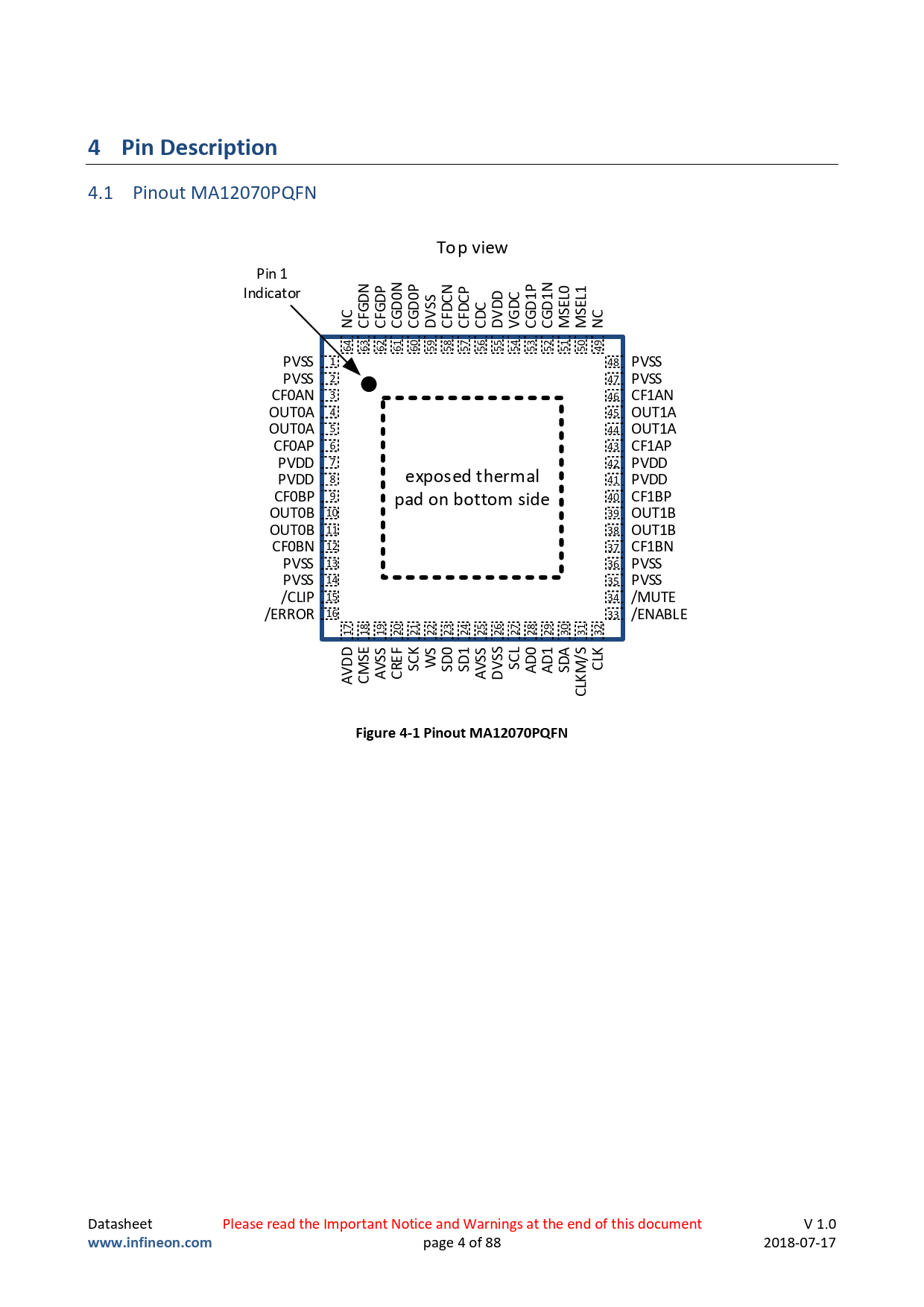

4.1 Pinout MA12070PQFN Top view Pin 1 N P N P Indicator N P P N D D 0 0 C C D C 1 1 L0 L1 D C D D C D D G SE SE C N CFG CFG CG CG DVSS CFD CFD CD DVD V CG CG M M N 64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49 PVSS 1 48 PVSS PVSS 2 47 PVSS CF0AN 3 46 CF1AN OUT0A 4 45 OUT1A OUT0A 5 44 OUT1A CF0AP 6 43 CF1AP PVDD 7 42 PVDD PVDD 8 exposed thermal 41 PVDD CF0BP 9 40 CF1BP pad on bottom side OUT0B 10 39 OUT1B OUT0B 11 38 OUT1B CF0BN 12 37 CF1BN PVSS 13 36 PVSS PVSS 14 35 PVSS /CLIP 15 34 /MUTE /ERROR 16 33 /ENABLE 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 D F K S 0 1 L 0 1 A D SE SS SS SS D D /S LK V M V RE SC W SD SD V V SC A A SD M C A C A C A D K CL
Figure 4-1 Pinout MA12070PQFN
