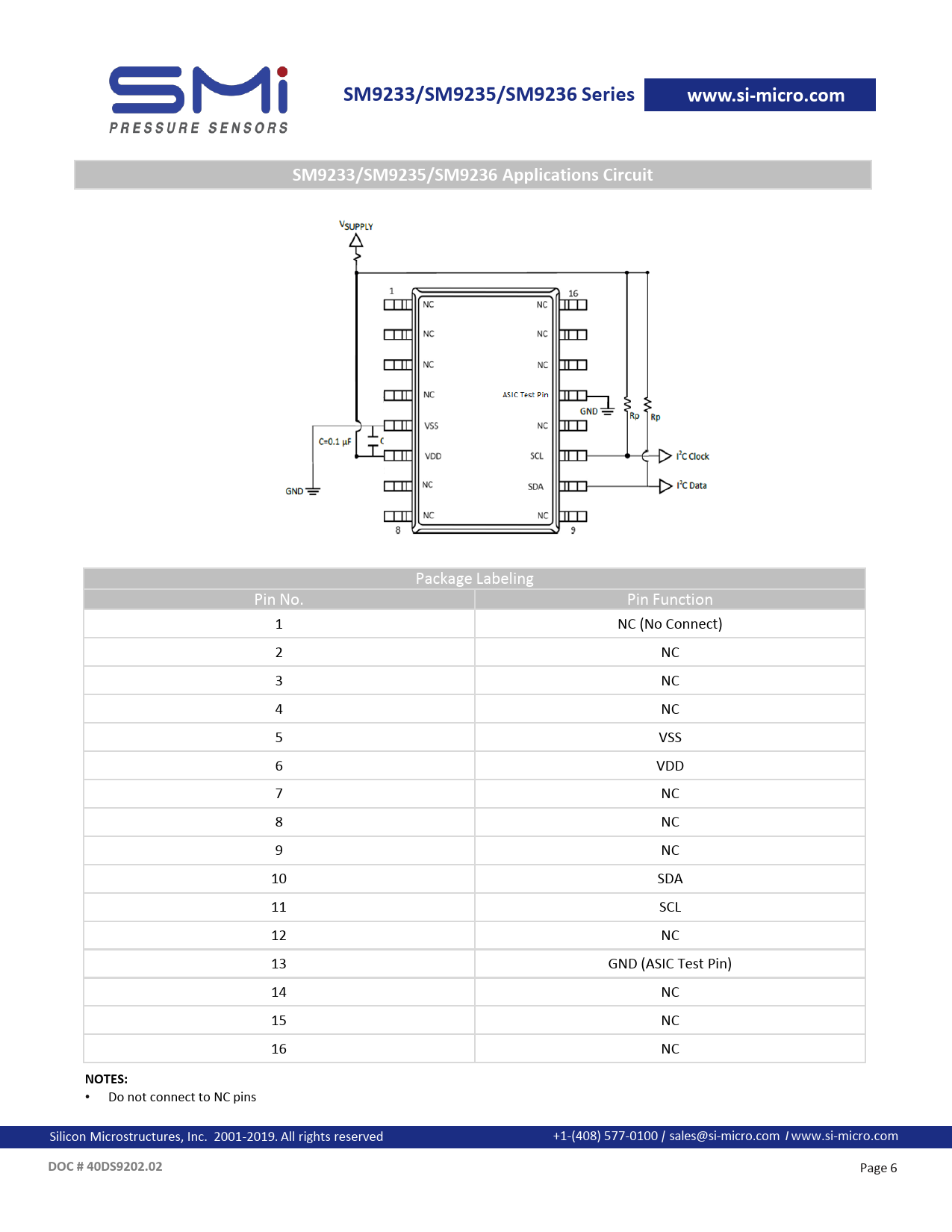

SM9233/SM9235/SM9236 Series. www.si-micro.com. SM9233/SM9235/SM9236 Applications Circuit. NOTES:. DOC # 40DS9202.02
Model Line for this Datasheet
Text Version of Document
SM9233/SM9235/SM9236 Series www.si-micro.com
27
SM9233/SM9235/SM9236 Applications Circuit
45 131 167 170 175 169 0 61 Package Labeling Pin No. Pin Function 1 NC (No Connect) 2 NC 3 NC 4 NC 5 VSS 6 VDD 7 NC 8 NC 9 NC 10 SDA 11 SCL 12 NC 13 GND (ASIC Test Pin) 14 NC 15 NC 16 NC
NOTES:
• Do not connect to NC pins Silicon Micro structures, Inc. 2001-2019. All rights reserved +1-(408) 577-0100 | sales@si-micro.com I www.si-micro.com
DOC # 40DS9202.02
