Datasheet PI3A6386 (Diodes) - 2
| Manufacturer | Diodes |
| Description | Usb Type-C Ultra-Low-Thd Audio and Data Switch Array |
| Pages / Page | 9 / 2 — PI3A6386. Pin Description. Pin#. Name. Description. www.diodes.com |
| File Format / Size | PDF / 1.2 Mb |
| Document Language | English |
PI3A6386. Pin Description. Pin#. Name. Description. www.diodes.com
Model Line for this Datasheet
Text Version of Document

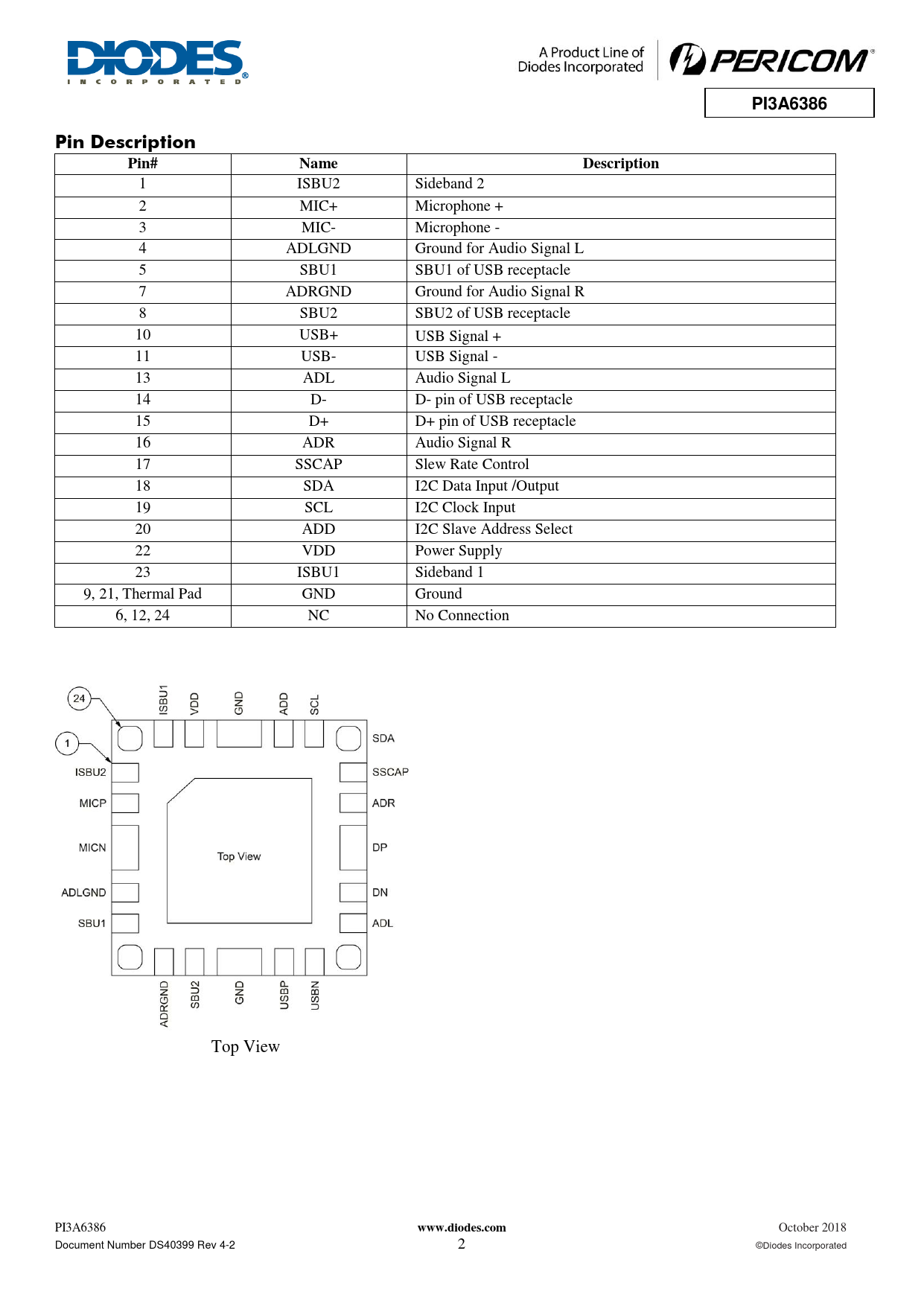

PI3A6386 Pin Description Pin# Name Description
1 ISBU2 Sideband 2 2 MIC+ Microphone + 3 MIC- Microphone - 4 ADLGND Ground for Audio Signal L 5 SBU1 SBU1 of USB receptacle 7 ADRGND Ground for Audio Signal R 8 SBU2 SBU2 of USB receptacle 10 USB+ USB Signal + 11 USB- USB Signal - 13 ADL Audio Signal L 14 D- D- pin of USB receptacle 15 D+ D+ pin of USB receptacle 16 ADR Audio Signal R 17 SSCAP Slew Rate Control 18 SDA I2C Data Input /Output 19 SCL I2C Clock Input 20 ADD I2C Slave Address Select 22 VDD Power Supply 23 ISBU1 Sideband 1 9, 21, Thermal Pad GND Ground 6, 12, 24 NC No Connection Top View PI3A6386
