Datasheet MAX40056F, MAX40056T, MAX40056U (Maxim) - 10
| Manufacturer | Maxim |
| Description | Bidirectional Current Sense Amplifier with PWM-Rejection |
| Pages / Page | 21 / 10 — Typical Operating Characteristics (continued) |
| File Format / Size | PDF / 1.4 Mb |
| Document Language | English |

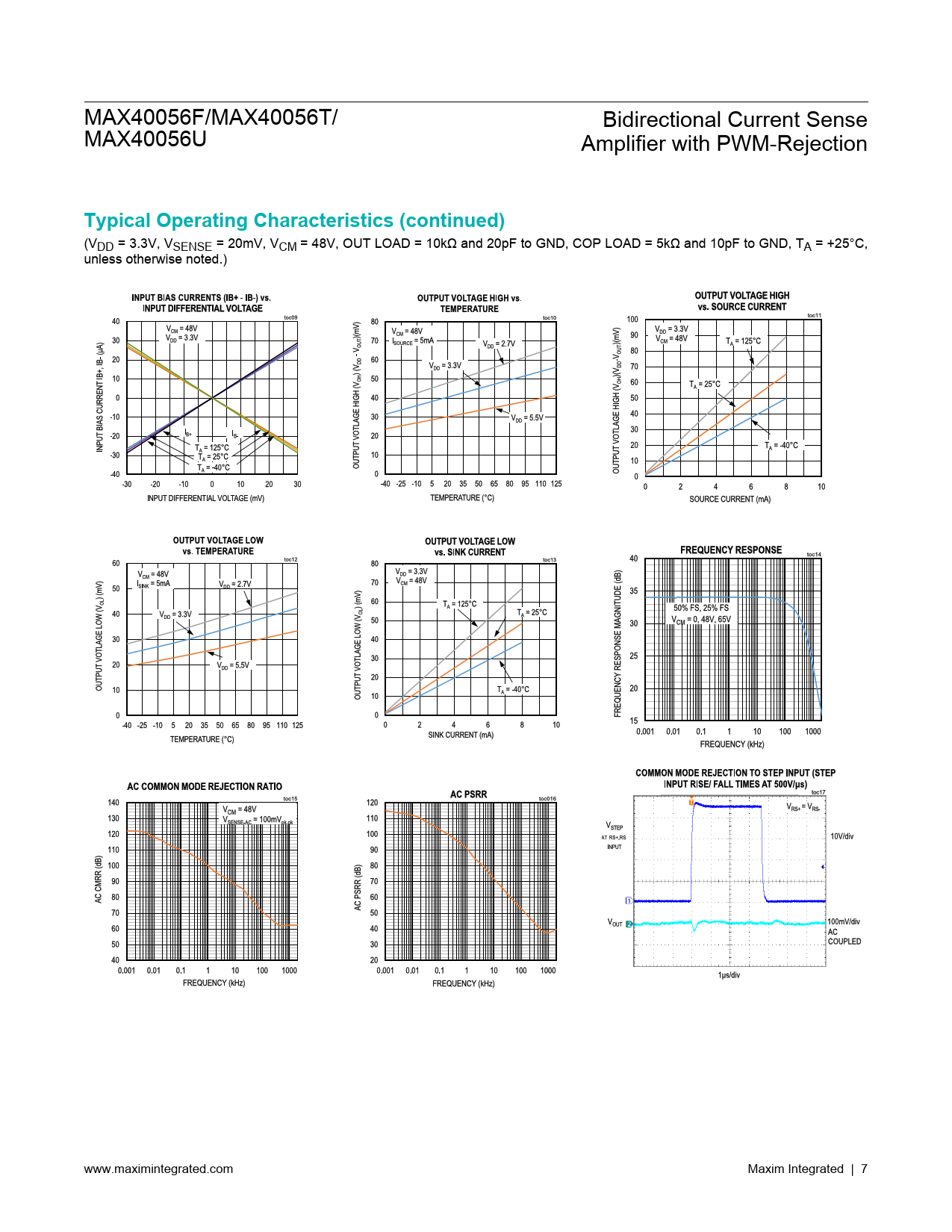

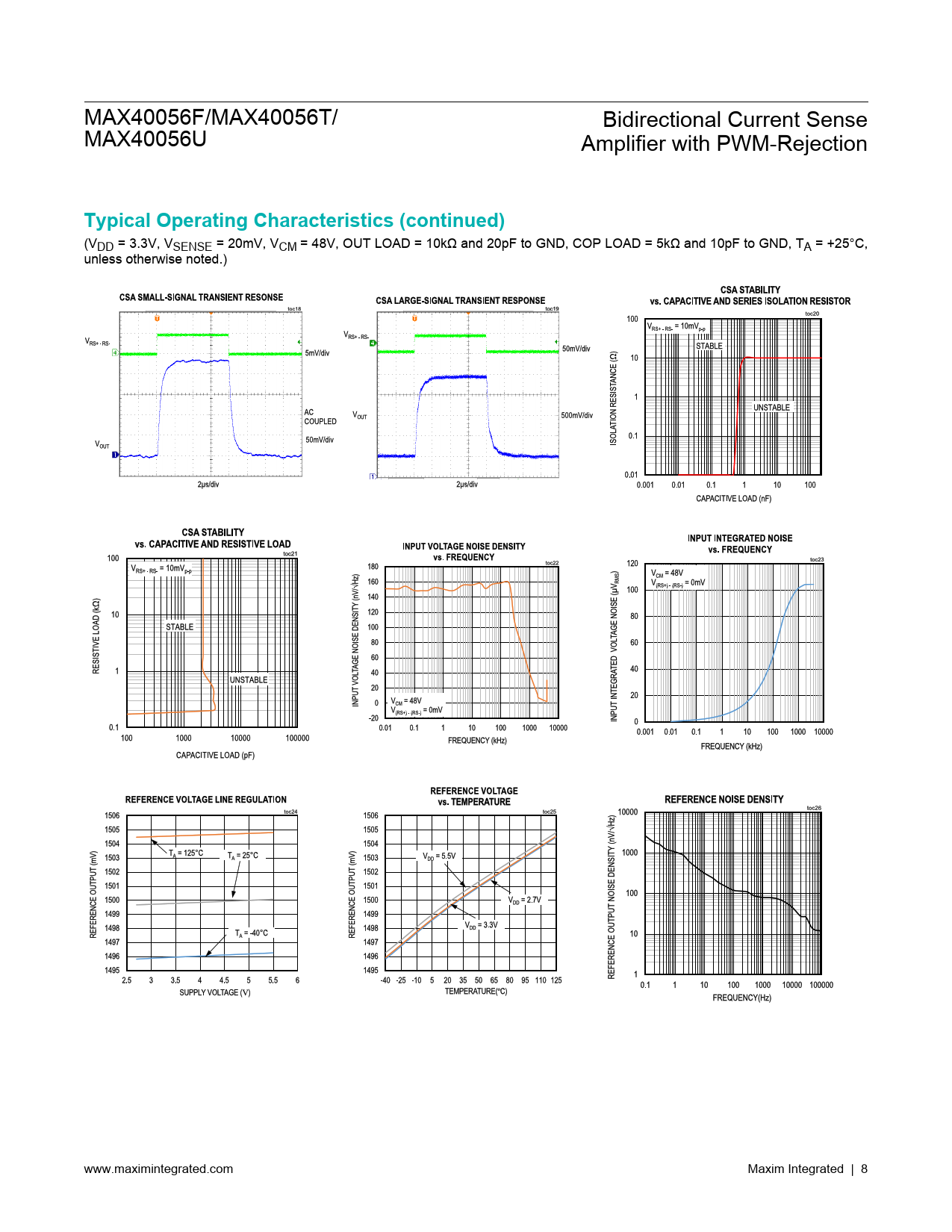

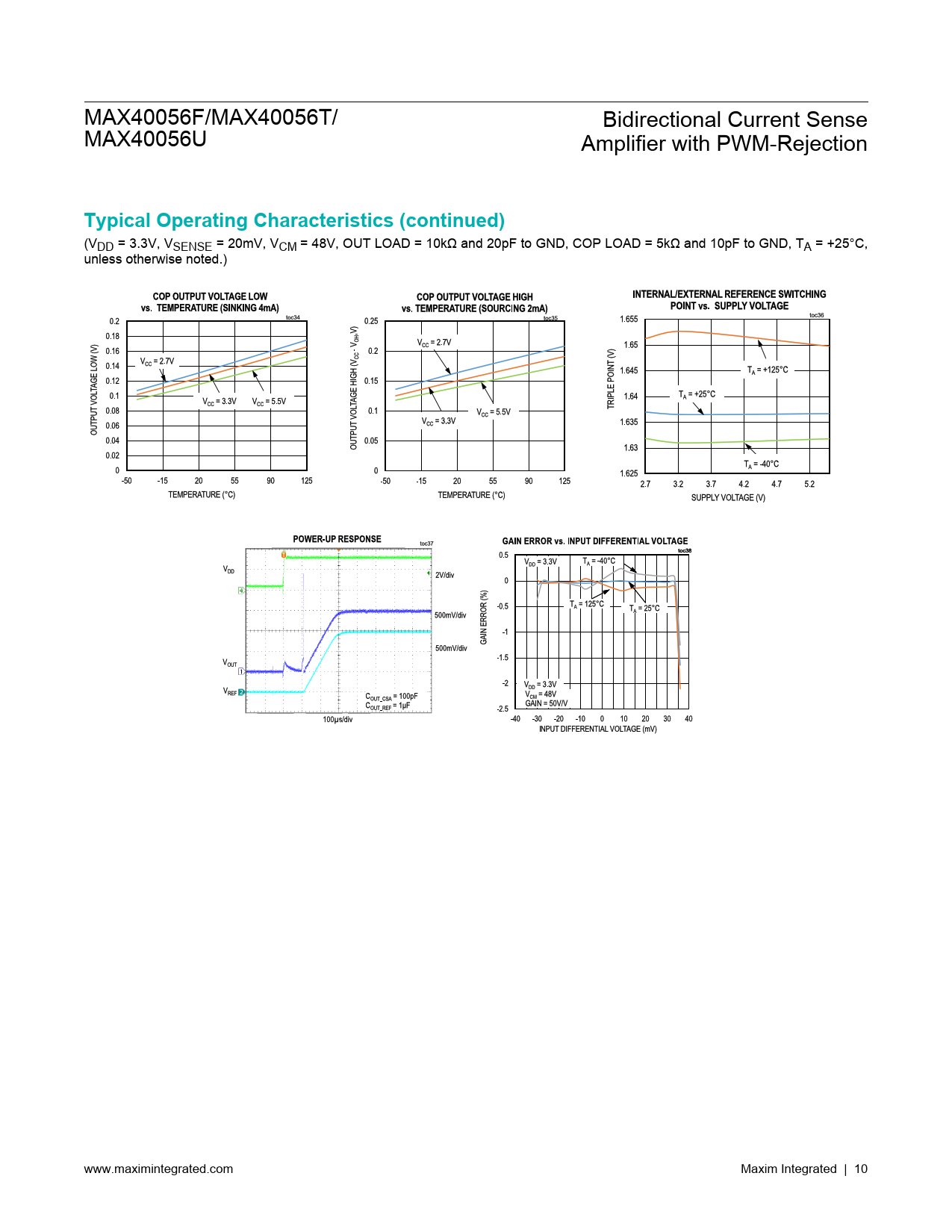

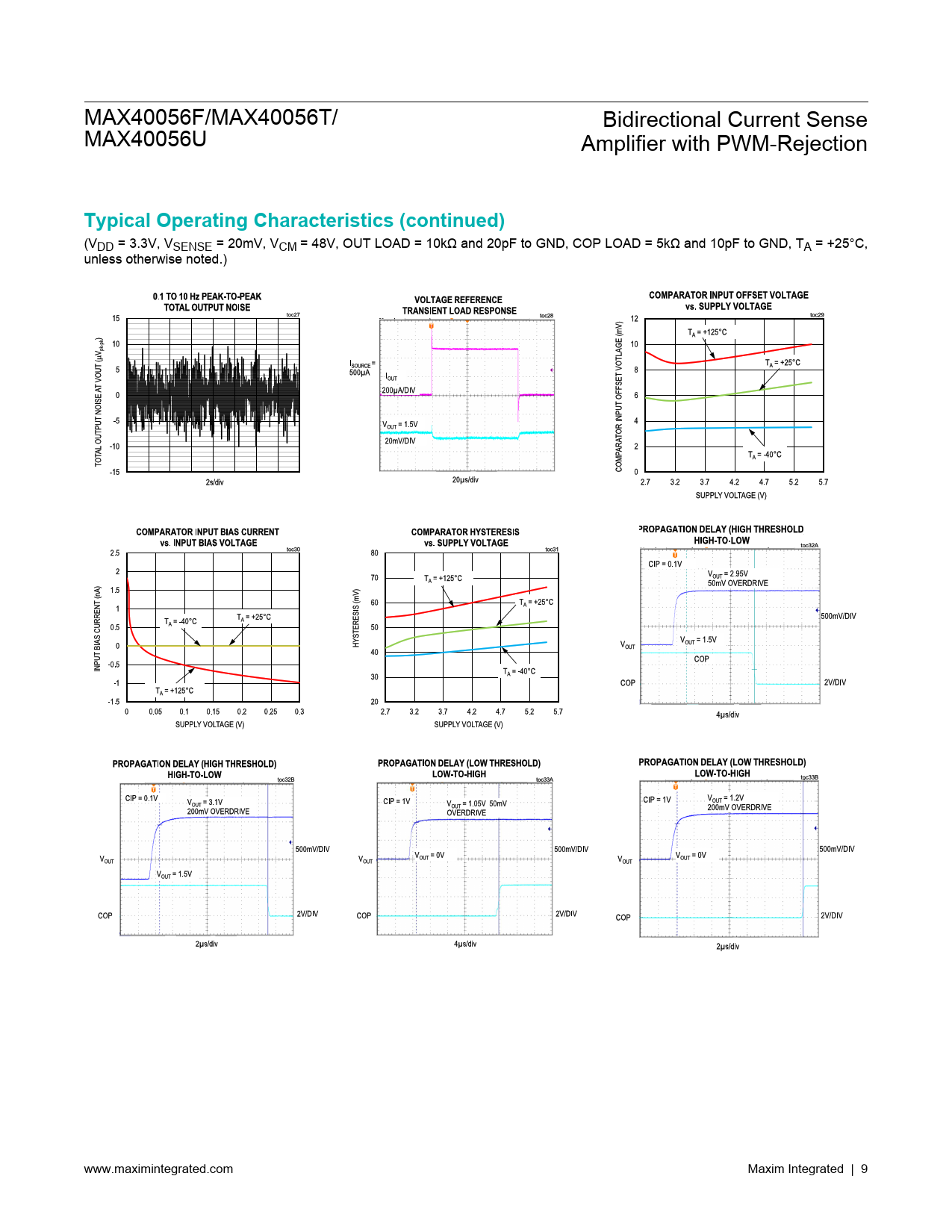

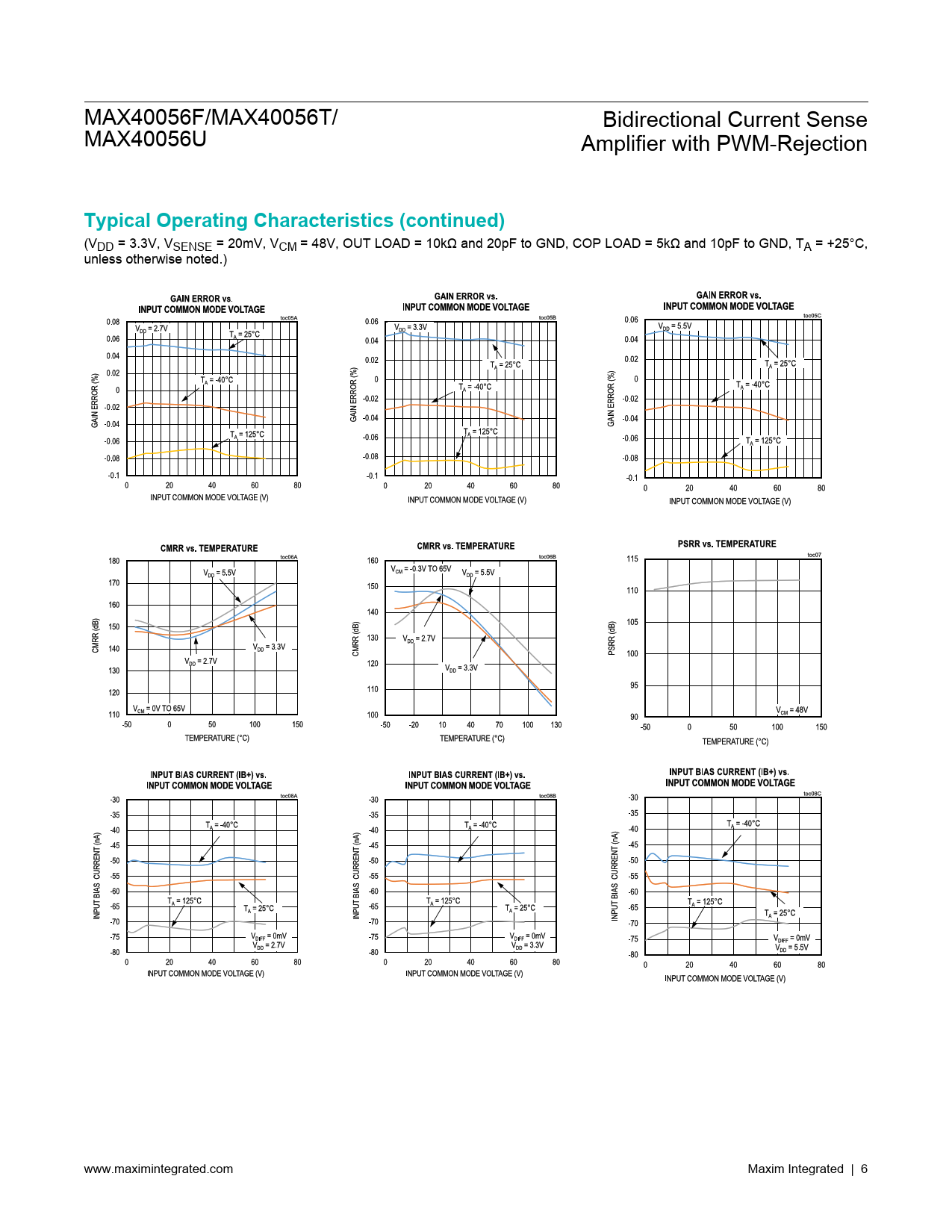

Typical Operating Characteristics (continued)
Model Line for this Datasheet
Text Version of Document
MAX40056F/MAX40056T/ Bidirectional Current Sense MAX40056U Amplifier with PWM-Rejection
Typical Operating Characteristics (continued)
(VDD = 3.3V, VSENSE = 20mV, VCM = 48V, OUT LOAD = 10kΩ and 20pF to GND, COP LOAD = 5kΩ and 10pF to GND, TA = +25°C, unless otherwise noted.) www.maximintegrated.com Maxim Integrated | 10 Document Outline General Description Applications Benefits and Features Typical Operating Characteristic and Simplified Block Diagram Absolute Maximum Ratings Package Information 8 µMAX 8 WLP Electrical Characteristics Typical Operating Characteristics Pin Configuration Pin Description Detailed Description Overview PWM Rejection Input Stage Low Input Offset Voltage and Low Gain Error CSA Output Voltage Reference Window Comparator and Hysteresis Applications Information Input Sense Voltage Range Choice of Reference Voltage Important Considerations Kelvin Connections Stray Inductance Typical Application Circuits Current Sensing in a 3-Phase Servo Motor Ordering Information Revision History
Typical Operating Characteristics (continued)
(VDD = 3.3V, VSENSE = 20mV, VCM = 48V, OUT LOAD = 10kΩ and 20pF to GND, COP LOAD = 5kΩ and 10pF to GND, TA = +25°C, unless otherwise noted.) www.maximintegrated.com Maxim Integrated | 10 Document Outline General Description Applications Benefits and Features Typical Operating Characteristic and Simplified Block Diagram Absolute Maximum Ratings Package Information 8 µMAX 8 WLP Electrical Characteristics Typical Operating Characteristics Pin Configuration Pin Description Detailed Description Overview PWM Rejection Input Stage Low Input Offset Voltage and Low Gain Error CSA Output Voltage Reference Window Comparator and Hysteresis Applications Information Input Sense Voltage Range Choice of Reference Voltage Important Considerations Kelvin Connections Stray Inductance Typical Application Circuits Current Sensing in a 3-Phase Servo Motor Ordering Information Revision History
