Datasheet ADL5304 (Analog Devices) - 5
| Manufacturer | Analog Devices |
| Description | High Speed, 200 dB Range, Current to Voltage Logarithmic Converter |
| Pages / Page | 32 / 5 — Data Sheet. ADL5304. ABSOLUTE MAXIMUM RATINGS. Table 2. Parameter. … |
| Revision | A |
| File Format / Size | PDF / 924 Kb |
| Document Language | English |

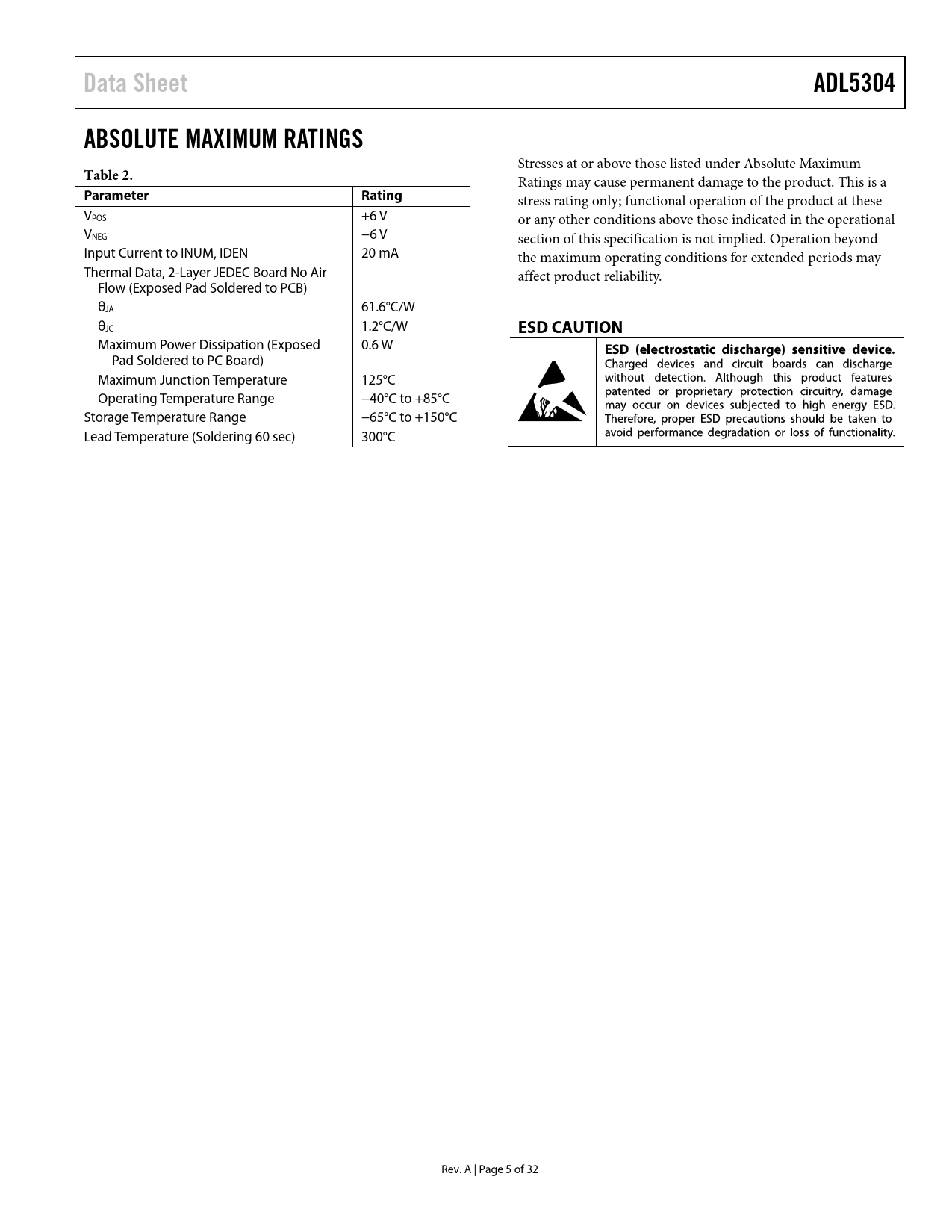

Data Sheet. ADL5304. ABSOLUTE MAXIMUM RATINGS. Table 2. Parameter. Rating. ESD CAUTION
Model Line for this Datasheet
Text Version of Document
Data Sheet ADL5304 ABSOLUTE MAXIMUM RATINGS
Stresses at or above those listed under Absolute Maximum
Table 2.
Ratings may cause permanent damage to the product. This is a
Parameter Rating
stress rating only; functional operation of the product at these VPOS +6 V or any other conditions above those indicated in the operational VNEG −6 V section of this specification is not implied. Operation beyond Input Current to INUM, IDEN 20 mA the maximum operating conditions for extended periods may Thermal Data, 2-Layer JEDEC Board No Air affect product reliability. Flow (Exposed Pad Soldered to PCB) θ JA 61.6°C/W θJC 1.2°C/W
