Datasheet RH1013M (Analog Devices) - 5
| Manufacturer | Analog Devices |
| Description | Dual Precision Operational Amplifier |
| Pages / Page | 6 / 5 — TYPICAL PERFORMANCE CHARACTERISTICS. Common-Mode Rejection Ratio. Power … |
| Revision | F |
| File Format / Size | PDF / 169 Kb |
| Document Language | English |

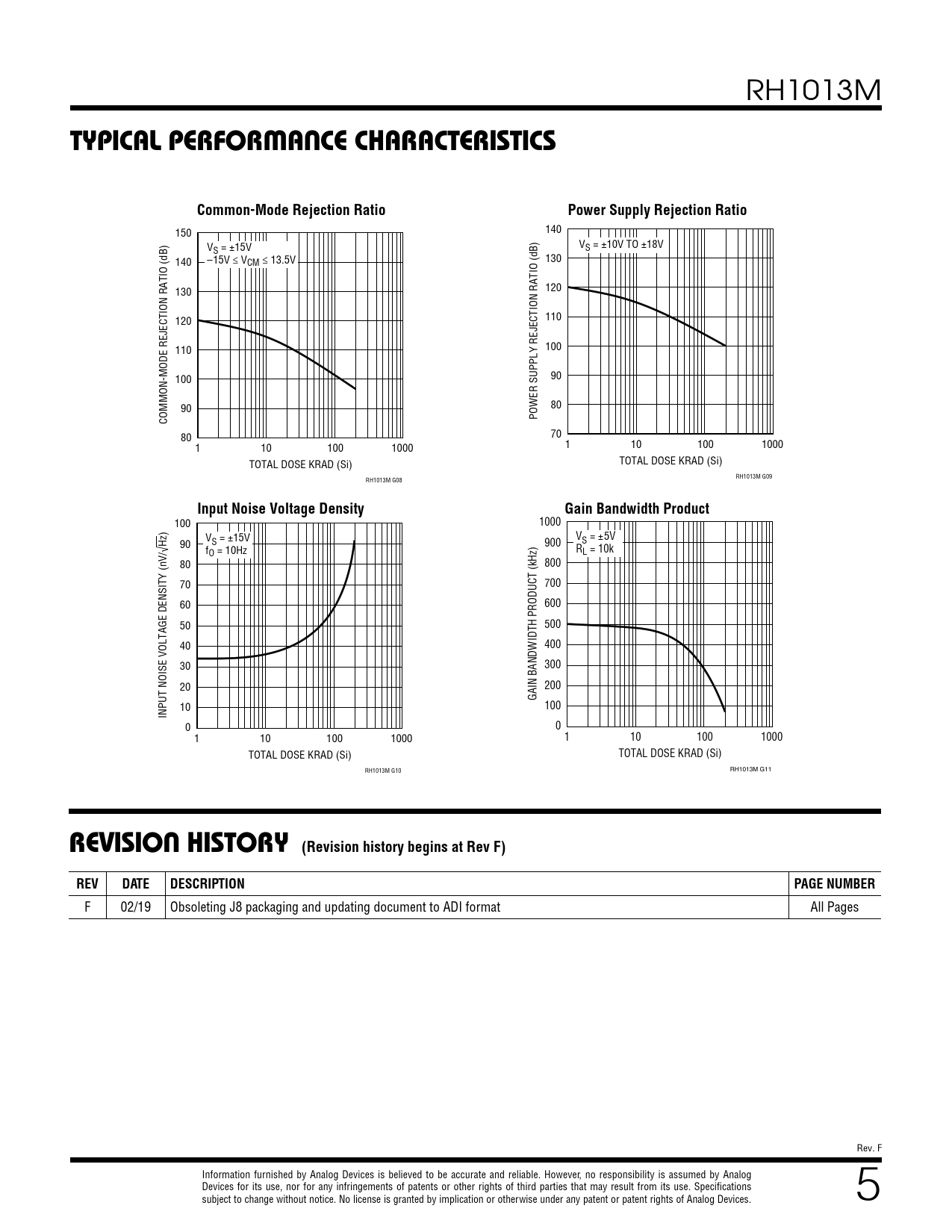

TYPICAL PERFORMANCE CHARACTERISTICS. Common-Mode Rejection Ratio. Power Supply Rejection Ratio. Input Noise Voltage Density
Model Line for this Datasheet
Text Version of Document
RH1013M
TYPICAL PERFORMANCE CHARACTERISTICS Common-Mode Rejection Ratio Power Supply Rejection Ratio
150 140 V V S = ±15V S = ±10V TO ±18V 140 –15V ≤ VCM ≤ 13.5V 130 130 120 120 110 110 100 100 90 90 80 COMMON-MODE REJECTION RATIO (dB) POWER SUPPLY REJECTION RATIO (dB) 80 70 1 10 100 1000 1 10 100 1000 TOTAL DOSE KRAD (Si) TOTAL DOSE KRAD (Si) RH1013M G09 RH1013M G08
Input Noise Voltage Density Gain Bandwidth Product
100 1000 90 VS = ±15V 900 VS = ±5V f R O = 10Hz L = 10k 80 800 70 700 60 600 50 500 40 400 30 300 20 200 GAIN BANDWIDTH PRODUCT (kHz) 10 100 INPUT NOISE VOLTAGE DENSITY (nV/√Hz) 0 0 1 10 100 1000 1 10 100 1000 TOTAL DOSE KRAD (Si) TOTAL DOSE KRAD (Si) RH1013M G10 RH1013M G11
REVISION HISTORY (Revision history begins at Rev F) REV DATE DESCRIPTION PAGE NUMBER
F 02/19 Obsoleting J8 packaging and updating document to ADI format All Pages Rev. F Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications For more information www.a subject to change without notice. No license is granted by implication or other nalog.com wise under any patent or patent rights of Analog Devices. 5 Document Outline Description Burn-In Circuit Package/Order Information Absolute Maximum Ratings Total Dose Bias Circuit Table 1: Electrical characteristics Table 1a: Electrical characteristics Table 2: Electrical Test Requirements Typical Performance Characteristics Revision History Rad Hard
