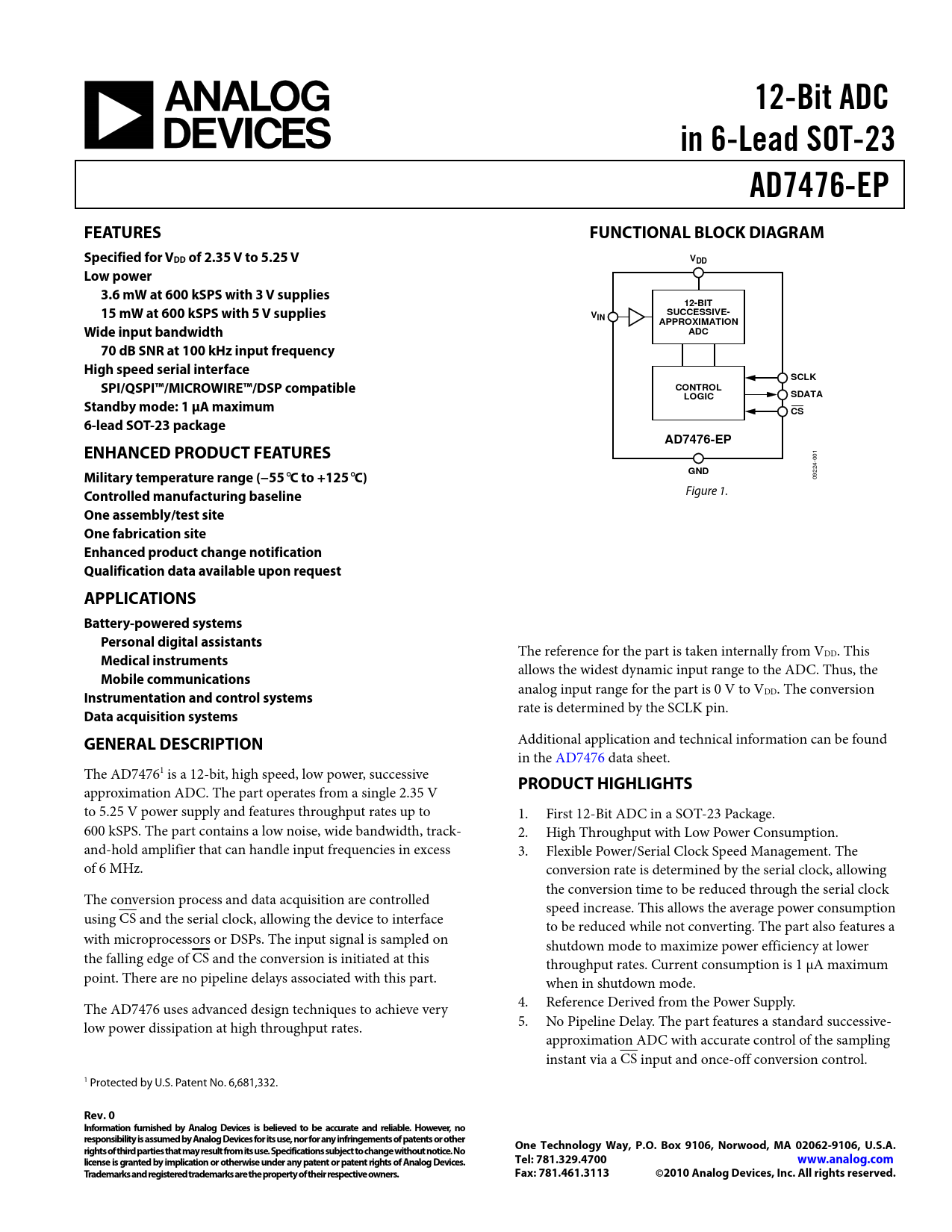

12-Bit ADC in 6-Lead SOT-23 AD7476-EP FEATURES FUNCTIONAL BLOCK DIAGRAM Specified for VDD of 2.35 V to 5.25 V VDD Low power 3.6 mW at 600 kSPS with 3 V supplies 12-BIT 15 mW at 600 kSPS with 5 V supplies SUCCESSIVE- VIN APPROXIMATION Wide input bandwidth ADC 70 dB SNR at 100 kHz input frequency High speed serial interface SCLK SPI/QSPI™/MICROWIRE™/DSP compatible CONTROL LOGIC SDATA Standby mode: 1 μA maximum CS 6-lead SOT-23 package AD7476-EP ENHANCED PRODUCT FEATURES
1 -00 4 22
GND Military temperature range (−55°C to +125°C)
09
Controlled manufacturing baseline
Figure 1.
One assembly/test site One fabrication site Enhanced product change notification Qualification data available upon request APPLICATIONS Battery-powered systems Personal digital assistants
The reference for the part is taken internally from VDD. This
Medical instruments
allows the widest dynamic input range to the ADC. Thus, the
Mobile communications
analog input range for the part is 0 V to VDD. The conversion
Instrumentation and control systems
rate is determined by the SCLK pin.
Data acquisition systems GENERAL DESCRIPTION
Additional application and technical information can be found in the AD7476 data sheet. The AD74761 is a 12-bit, high speed, low power, successive
PRODUCT HIGHLIGHTS
approximation ADC. The part operates from a single 2.35 V to 5.25 V power supply and features throughput rates up to 1. First 12-Bit ADC in a SOT-23 Package. 600 kSPS. The part contains a low noise, wide bandwidth, track- 2. High Throughput with Low Power Consumption. and-hold amplifier that can handle input frequencies in excess 3. Flexible Power/Serial Clock Speed Management. The of 6 MHz. conversion rate is determined by the serial clock, allowing the conversion time to be reduced through the serial clock The conversion process and data acquisition are controlled speed increase. This allows the average power consumption using CS and the serial clock, allowing the device to interface to be reduced while not converting. The part also features a with microprocessors or DSPs. The input signal is sampled on shutdown mode to maximize power efficiency at lower the falling edge of CS and the conversion is initiated at this throughput rates. Current consumption is 1 μA maximum point. There are no pipeline delays associated with this part. when in shutdown mode. 4. Reference Derived from the Power Supply. The AD7476 uses advanced design techniques to achieve very 5. No Pipeline Delay. The part features a standard successive- low power dissipation at high throughput rates. approximation ADC with accurate control of the sampling instant via a CS input and once-off conversion control. 1 Protected by U.S. Patent No. 6,681,332.
