NXP Semiconductors. BC846BS. 65 V, 100 mA NPN/NPN general-purpose transistor. Pinning information. Table 3. Pinning. Pin. Description
Model Line for this Datasheet
Text Version of Document
link to page 2 link to page 3

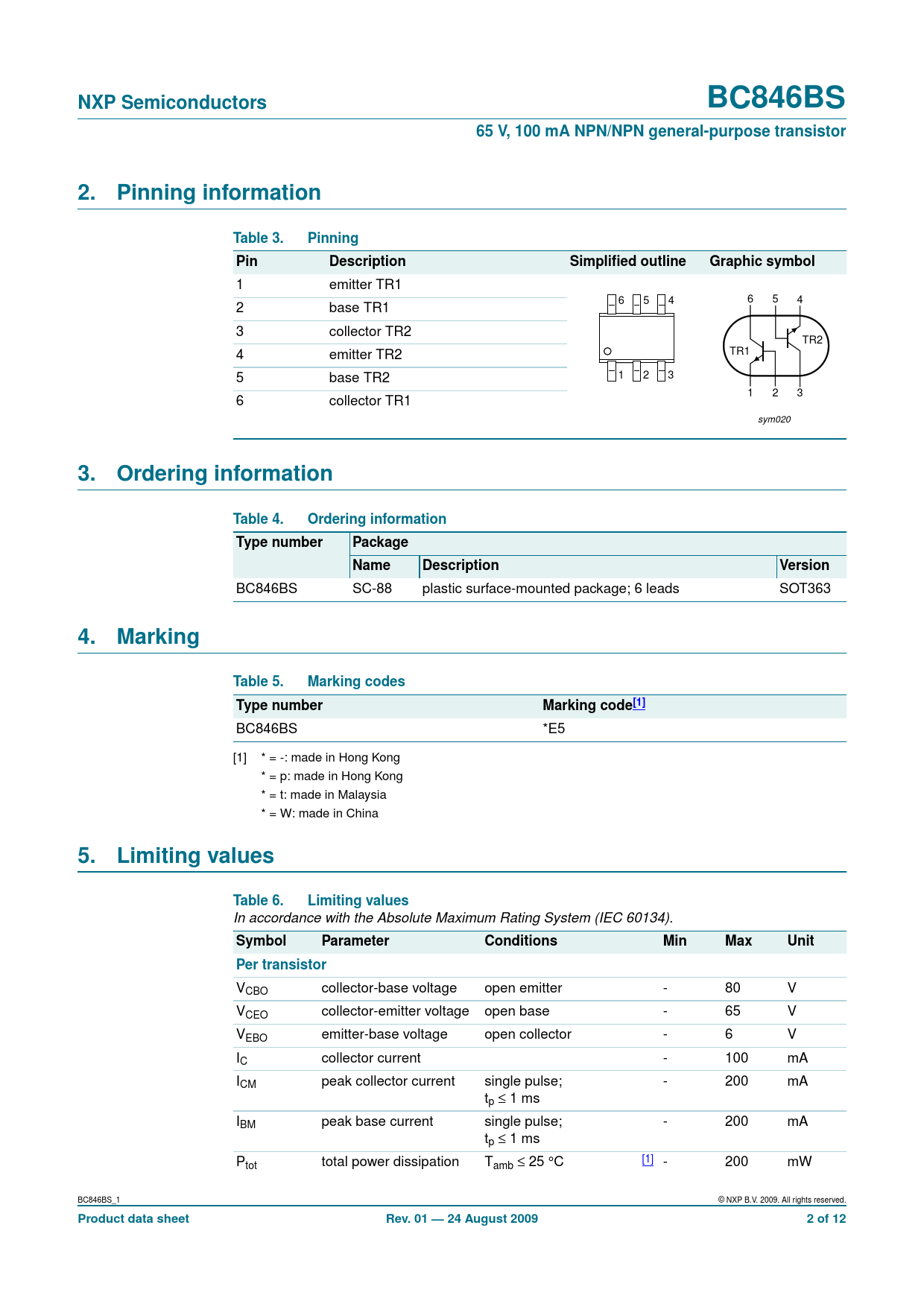

NXP Semiconductors BC846BS 65 V, 100 mA NPN/NPN general-purpose transistor 2. Pinning information Table 3. Pinning Pin Description Simplified outline Graphic symbol
1 emitter TR1 6 5 4 6 5 4 2 base TR1 3 collector TR2 TR2 4 emitter TR2 TR1 5 base TR2 1 2 3 1 2 3 6 collector TR1 sym020
3. Ordering information Table 4. Ordering information Type number Package Name Description Version
BC846BS SC-88 plastic surface-mounted package; 6 leads SOT363
4. Marking Table 5. Marking codes Type number Marking code[1]
BC846BS *E5 [1] * = -: made in Hong Kong * = p: made in Hong Kong * = t: made in Malaysia * = W: made in China
5. Limiting values Table 6. Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol Parameter Conditions Min Max Unit Per transistor
VCBO collector-base voltage open emitter - 80 V VCEO collector-emitter voltage open base - 65 V VEBO emitter-base voltage open collector - 6 V IC collector current - 100 mA ICM peak collector current single pulse; - 200 mA tp ≤ 1 ms IBM peak base current single pulse; - 200 mA tp ≤ 1 ms Ptot total power dissipation Tamb ≤ 25 °C [1] - 200 mW BC846BS_1 © NXP B.V. 2009. All rights reserved.
Product data sheet Rev. 01 — 24 August 2009 2 of 12
