Datasheet BC846BPN (NXP) - 2
| Manufacturer | NXP |
| Description | 65 V, 100 mA NPN/PNP general-purpose transistor |
| Pages / Page | 15 / 2 — NXP Semiconductors. BC846BPN. 65 V, 100 mA NPN/PNP general-purpose … |
| File Format / Size | PDF / 133 Kb |
| Document Language | English |
NXP Semiconductors. BC846BPN. 65 V, 100 mA NPN/PNP general-purpose transistor. Pinning information. Table 3. Pinning. Pin
Model Line for this Datasheet
Text Version of Document
link to page 2

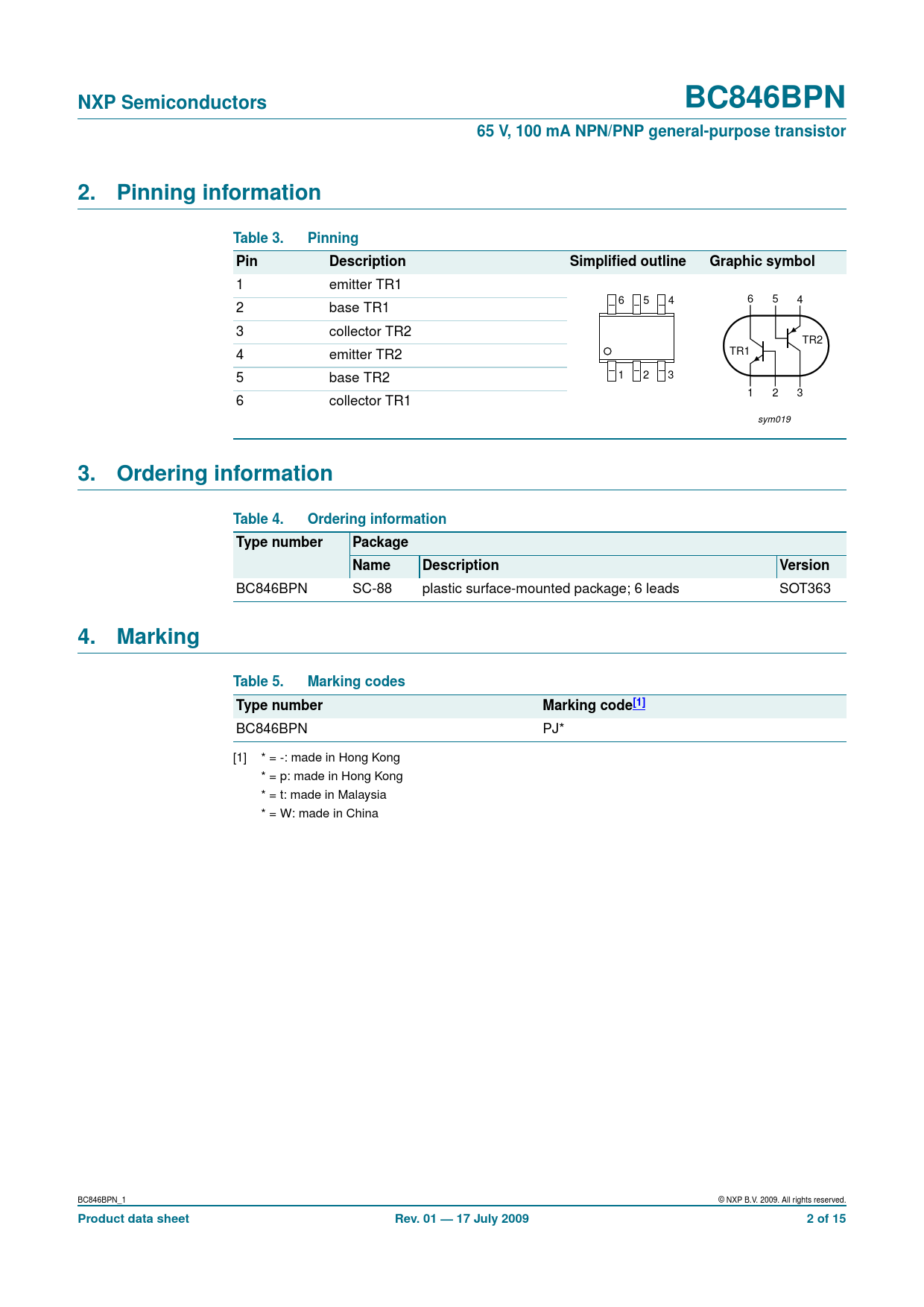

NXP Semiconductors BC846BPN 65 V, 100 mA NPN/PNP general-purpose transistor 2. Pinning information Table 3. Pinning Pin Description Simplified outline Graphic symbol
1 emitter TR1 6 5 4 6 5 4 2 base TR1 3 collector TR2 TR2 4 emitter TR2 TR1 5 base TR2 1 2 3 1 2 3 6 collector TR1 sym019
3. Ordering information Table 4. Ordering information Type number Package Name Description Version
BC846BPN SC-88 plastic surface-mounted package; 6 leads SOT363
4. Marking Table 5. Marking codes Type number Marking code[1]
BC846BPN PJ* [1] * = -: made in Hong Kong * = p: made in Hong Kong * = t: made in Malaysia * = W: made in China BC846BPN_1 © NXP B.V. 2009. All rights reserved.
Product data sheet Rev. 01 — 17 July 2009 2 of 15
