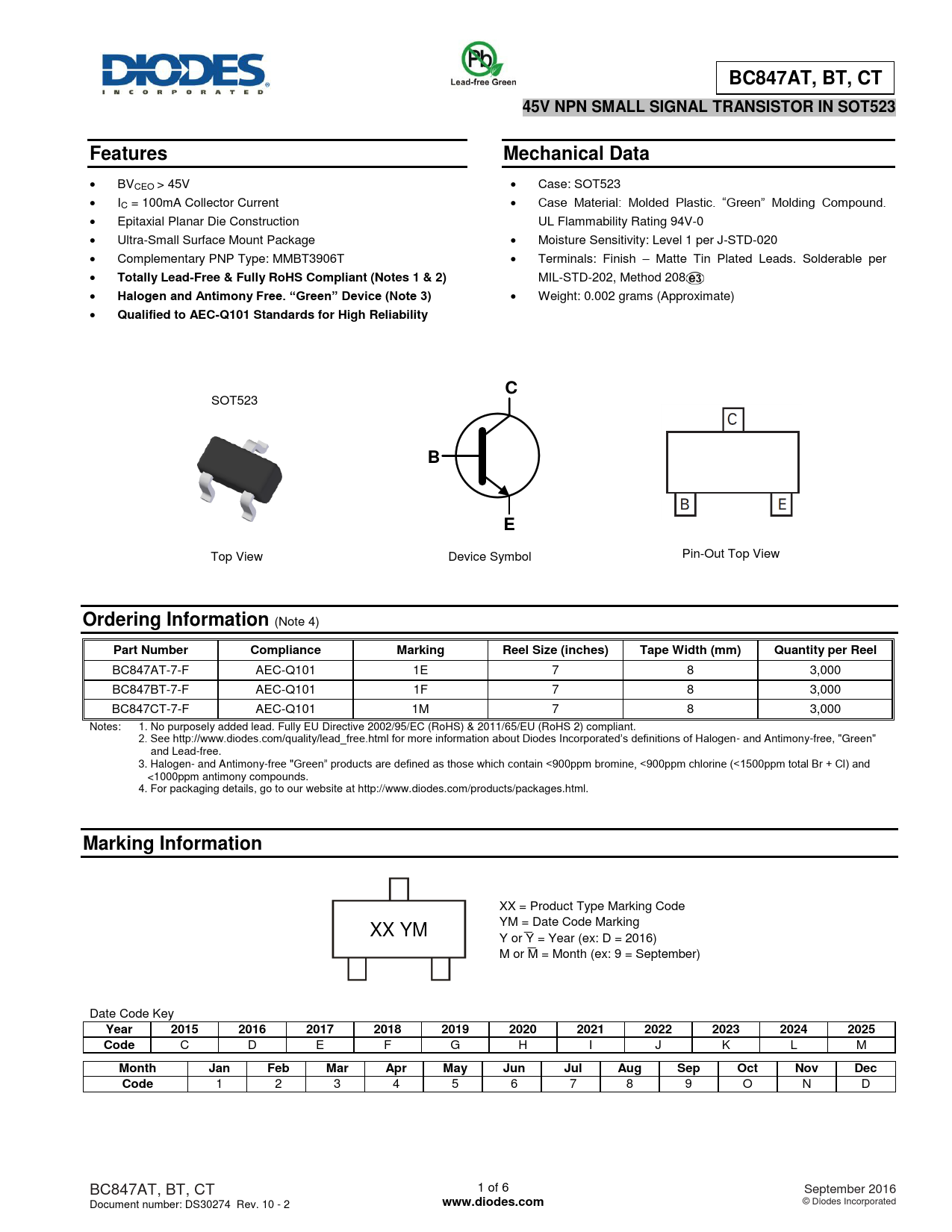

BC847AT, BT, CT. 45V NPN SMALL SIGNAL TRANSISTOR IN SOT523. Features. Mechanical Data
Model Line for this Datasheet
Text Version of Document
BC847AT, BT, CT 45V NPN SMALL SIGNAL TRANSISTOR IN SOT523 Features Mechanical Data
BVCEO > 45V Case: SOT523 IC = 100mA Collector Current Case Material: Molded Plastic. ―Green‖ Molding Compound. Epitaxial Planar Die Construction UL Flammability Rating 94V-0 Ultra-Small Surface Mount Package Moisture Sensitivity: Level 1 per J-STD-020 Complementary PNP Type: MMBT3906T Terminals: Finish – Matte Tin Plated Leads. Solderable per
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
MIL-STD-202, Method 208
Halogen and Antimony Free. “Green” Device (Note 3)
Weight: 0.002 grams (Approximate)
Qualified to AEC-Q101 Standards for High Reliability C
SOT523
B E
Top View Device Symbol Pin-Out Top View
Ordering Information
(Note 4)
Part Number Compliance Marking Reel Size (inches) Tape Width (mm) Quantity per Reel
BC847AT-7-F AEC-Q101 1E 7 8 3,000 BC847BT-7-F AEC-Q101 1F 7 8 3,000 BC847CT-7-F AEC-Q101 1M 7 8 3,000 Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green‖ products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds. 4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
XX = Product Type Marking Code YM = Date Code Marking K2 XX N YM M Y Y or Y = Year (ex: D = 2016) M or M = Month (ex: 9 = September)
Date Code Key
Year 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024 2025 Code
C D E F G H I J K L M
Month Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec Code
1 2 3 4 5 6 7 8 9 O N D BC847AT, BT, CT 1 of 6 September 2016 Document number: DS30274 Rev. 10 - 2
