Datasheet BC847AT, BC847BT, BC847CT (Diodes) - 5
| Manufacturer | Diodes |
| Description | NPN |
| Pages / Page | 6 / 5 — BC847AT, BT, CT. Package Outline Dimensions. SOT523. Dim. Min. Max. Typ. … |
| File Format / Size | PDF / 318 Kb |
| Document Language | English |

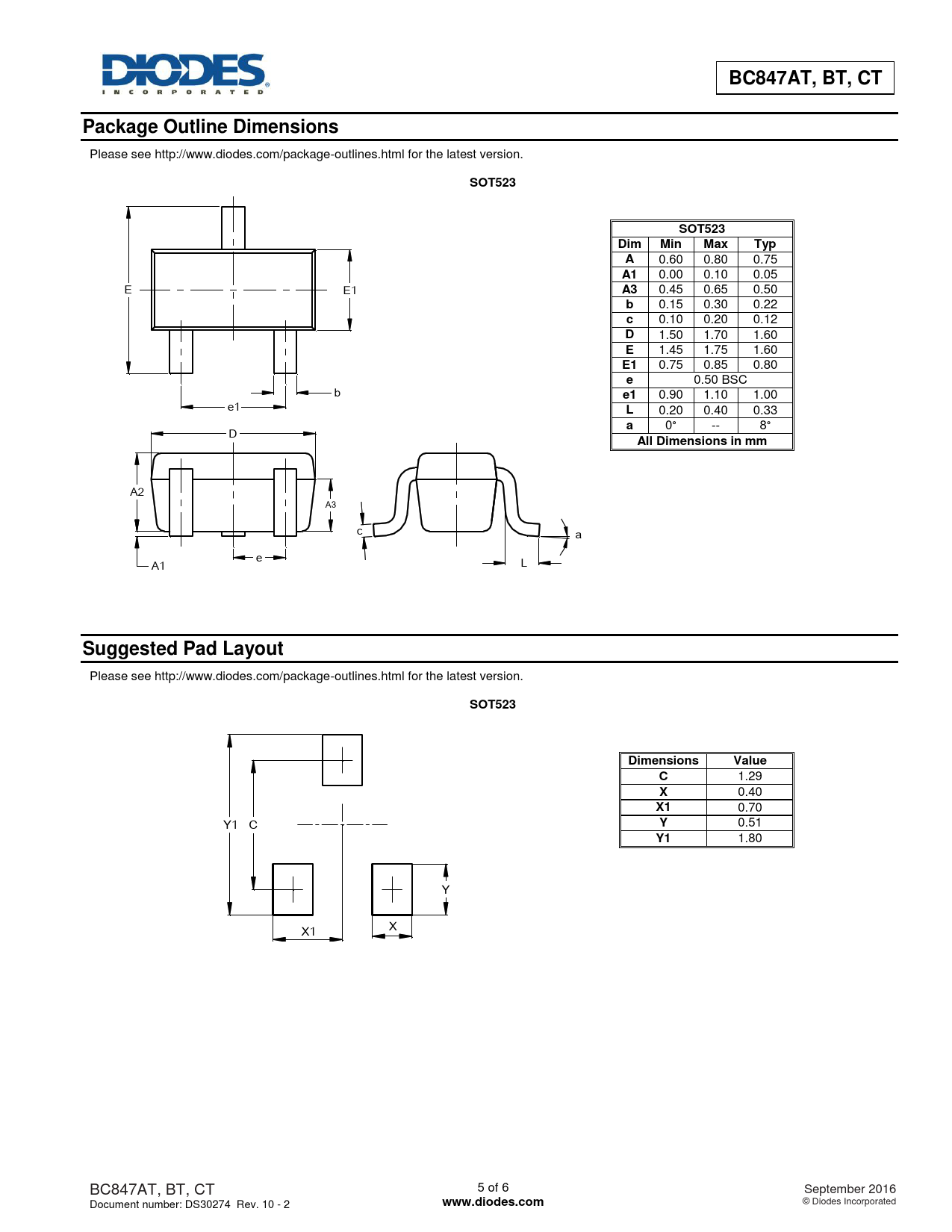

BC847AT, BT, CT. Package Outline Dimensions. SOT523. Dim. Min. Max. Typ. All Dimensions in mm. Suggested Pad Layout. Dimensions. Value
Model Line for this Datasheet
Text Version of Document
BC847AT, BT, CT Package Outline Dimensions
Please see http://www.diodes.com/package-outlines.html for the latest version.
SOT523 SOT523 Dim Min Max Typ A
0.60 0.80 0.75
A1
0.00 0.10 0.05 E E1
A3
0.45 0.65 0.50
b
0.15 0.30 0.22
c
0.10 0.20 0.12
D
1.50 1.70 1.60
E
1.45 1.75 1.60
E1
0.75 0.85 0.80
e
0.50 BSC b
e1
0.90 1.10 1.00 e1
L
0.20 0.40 0.33
a
0° -- 8° D
All Dimensions in mm
A2 A3 c a e A1 L
Suggested Pad Layout
Please see http://www.diodes.com/package-outlines.html for the latest version.
SOT523 Dimensions Value C
1.29
X
0.40
X1
0.70 Y1 C
Y
0.51
Y1
1.80 Y X X1 BC847AT, BT, CT 5 of 6 September 2016 Document number: DS30274 Rev. 10 - 2
