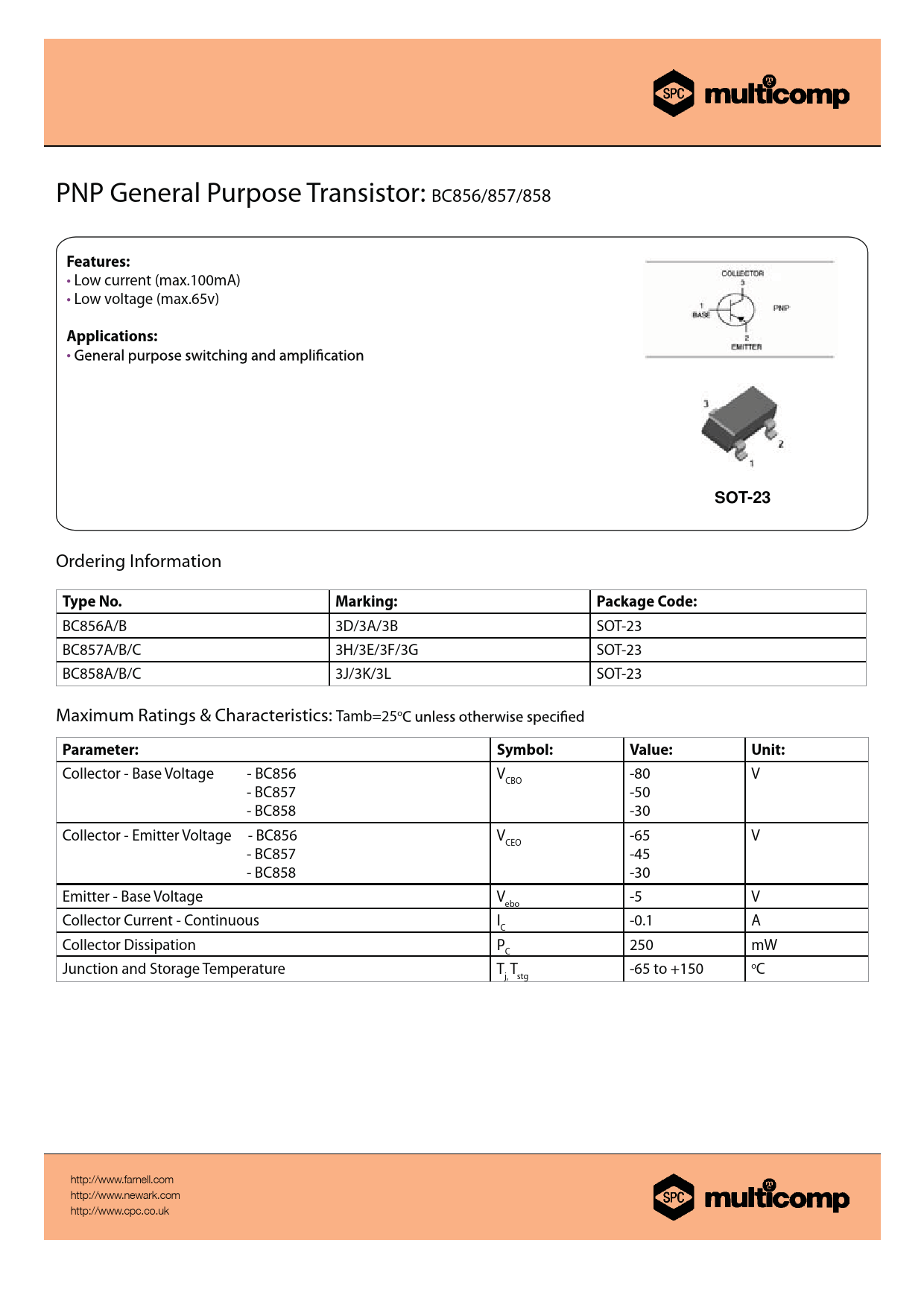

PNP General Purpose Transistor: BC856/857/858
Features:
tLow current (max.100mA) tLow voltage (max.65v)
Applications:
t
SOT-23
Ordering Information
Type No. Marking: Package Code:
BC856A/B 3D/3A/3B SOT-23 BC857A/B/C 3H/3E/3F/3G SOT-23 BC858A/B/C 3J/3K/3L SOT-23 Maximum Ratings & Characteristics: Tamb=25o
Parameter: Symbol: Value: Unit:
Collector - Base Voltage - BC856 V -80 V CBO - BC857 -50 - BC858 -30 Collector - Emitter Voltage - BC856 V -65 V CEO - BC857 -45 - BC858 -30 Emitter - Base Voltage V -5 V ebo Collector Current - Continuous I -0.1 A C Collector Dissipation P 250 mW C Junction and Storage Temperature T T -65 to +150 oC j, stg O[[W!^^^MHYULSSJVT O[[W!^^^UL^HYRJVT O[[W!^^^JWJJV\R
