Datasheet BC847BPN (Nexperia) - 2
| Manufacturer | Nexperia |
| Description | NPN/PNP general-purpose transistor pair in a very small SOT363 (SC-88) Surface-Mounted Device (SMD) plastic package. |
| Pages / Page | 14 / 2 — Nexperia. BC847BPN. 45 V, 100 mA NPN/PNP general-purpose transistor. … |
| Revision | 07082018 |
| File Format / Size | PDF / 589 Kb |
| Document Language | English |
Nexperia. BC847BPN. 45 V, 100 mA NPN/PNP general-purpose transistor. Ordering information. Table 3. Type number. Package. Name
Model Line for this Datasheet
Text Version of Document
link to page 2 link to page 2 link to page 2 link to page 2 link to page 2

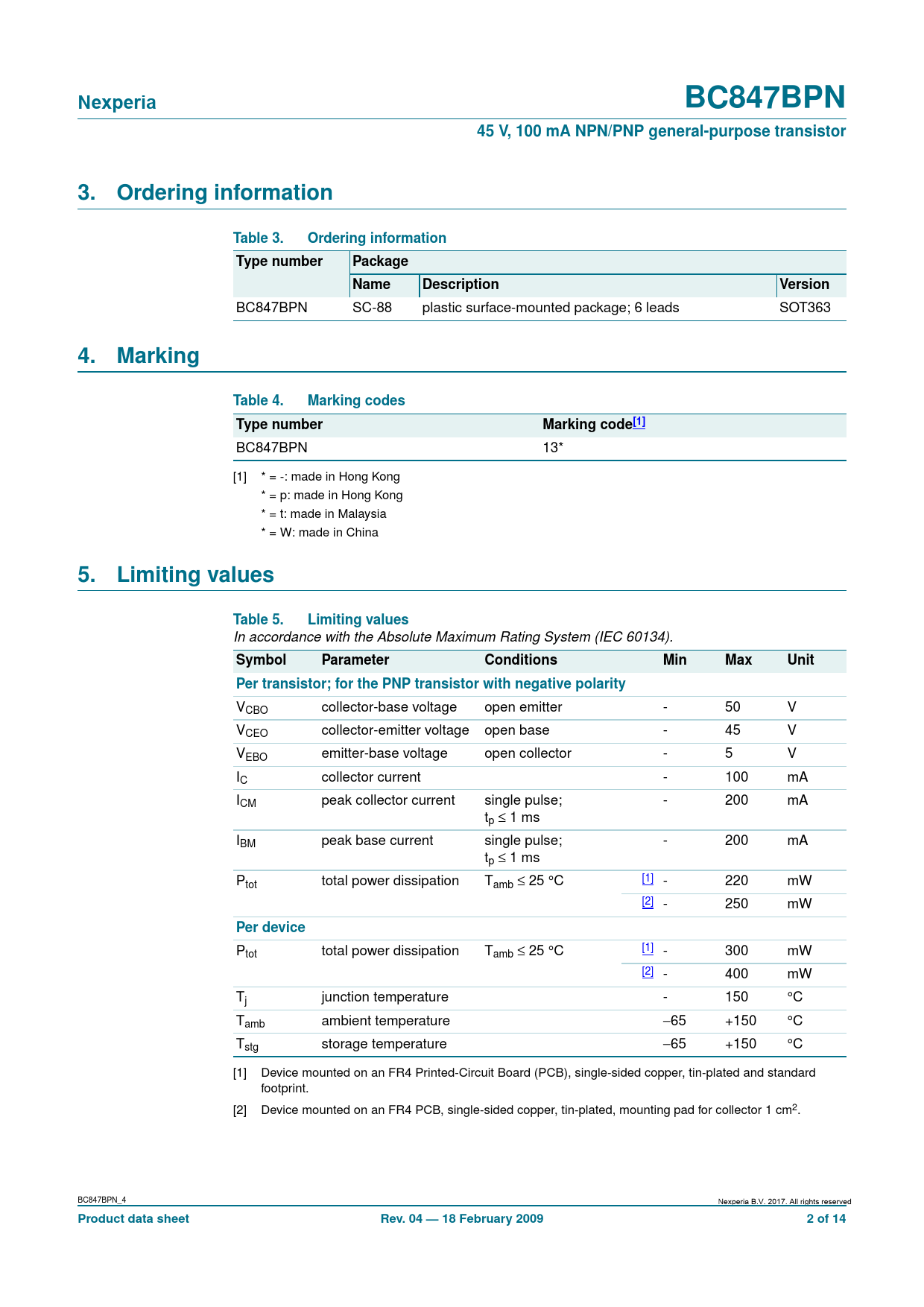

Nexperia BC847BPN 45 V, 100 mA NPN/PNP general-purpose transistor 3. Ordering information Table 3. Ordering information Type number Package Name Description Version
BC847BPN SC-88 plastic surface-mounted package; 6 leads SOT363
4. Marking Table 4. Marking codes Type number Marking code[1]
BC847BPN 13* [1] * = -: made in Hong Kong * = p: made in Hong Kong * = t: made in Malaysia * = W: made in China
5. Limiting values Table 5. Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol Parameter Conditions Min Max Unit Per transistor; for the PNP transistor with negative polarity
VCBO collector-base voltage open emitter - 50 V VCEO collector-emitter voltage open base - 45 V VEBO emitter-base voltage open collector - 5 V IC collector current - 100 mA ICM peak collector current single pulse; - 200 mA tp ≤ 1 ms IBM peak base current single pulse; - 200 mA tp ≤ 1 ms Ptot total power dissipation Tamb ≤ 25 °C [1] - 220 mW [2] - 250 mW
Per device
Ptot total power dissipation Tamb ≤ 25 °C [1] - 300 mW [2] - 400 mW Tj junction temperature - 150 °C Tamb ambient temperature −65 +150 °C Tstg storage temperature −65 +150 °C [1] Device mounted on an FR4 Printed-Circuit Board (PCB), single-sided copper, tin-plated and standard footprint. [2] Device mounted on an FR4 PCB, single-sided copper, tin-plated, mounting pad for collector 1 cm2. BC847BPN_4 © NNexperia B.V. 2017. All rights reserved
Product data sheet Rev. 04 — 18 February 2009 2 of 14
