Datasheet BC847BPN (Nexperia) - 4
| Manufacturer | Nexperia |
| Description | NPN/PNP general-purpose transistor pair in a very small SOT363 (SC-88) Surface-Mounted Device (SMD) plastic package. |
| Pages / Page | 14 / 4 — Nexperia. BC847BPN. 45 V, 100 mA NPN/PNP general-purpose transistor. Fig 2 |
| Revision | 07082018 |
| File Format / Size | PDF / 589 Kb |
| Document Language | English |
Nexperia. BC847BPN. 45 V, 100 mA NPN/PNP general-purpose transistor. Fig 2
Model Line for this Datasheet
Text Version of Document
Nexperia BC847BPN 45 V, 100 mA NPN/PNP general-purpose transistor

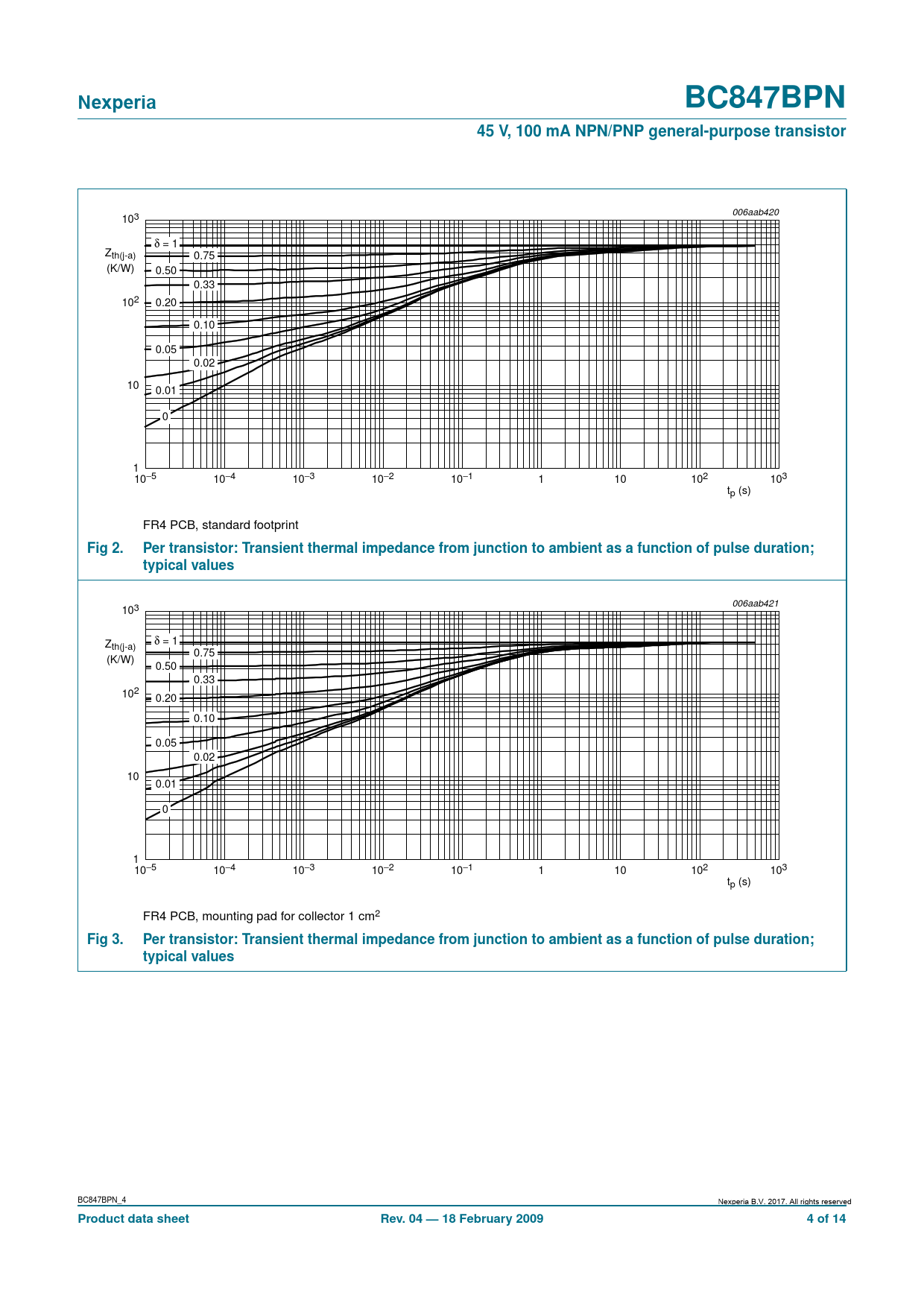

006aab420 103 δ = 1 Zth(j-a) 0.75 (K/W) 0.50 0.33 102 0.20 0.10 0.05 0.02 10 0.01 0 1 10−5 10−3 10−2 10−4 10 102 10−1 103 1 tp (s) FR4 PCB, standard footprint
Fig 2. Per transistor: Transient thermal impedance from junction to ambient as a function of pulse duration; typical values
006aab421 103 Z δ = 1 th(j-a) 0.75 (K/W) 0.50 0.33 102 0.20 0.10 0.05 0.02 10 0.01 0 1 10−5 10−3 10−2 10−4 10 102 10−1 103 1 tp (s) FR4 PCB, mounting pad for collector 1 cm2
Fig 3. Per transistor: Transient thermal impedance from junction to ambient as a function of pulse duration; typical values
BC847BPN_4 © NNexperia B.V. 2017. All rights reserved
Product data sheet Rev. 04 — 18 February 2009 4 of 14
