Datasheet BC847BPN (Nexperia) - 5
| Manufacturer | Nexperia |
| Description | NPN/PNP general-purpose transistor pair in a very small SOT363 (SC-88) Surface-Mounted Device (SMD) plastic package. |
| Pages / Page | 14 / 5 — Nexperia. BC847BPN. 45 V, 100 mA NPN/PNP general-purpose transistor. … |
| Revision | 07082018 |
| File Format / Size | PDF / 589 Kb |
| Document Language | English |
Nexperia. BC847BPN. 45 V, 100 mA NPN/PNP general-purpose transistor. Characteristics. Table 7. Symbol Parameter. Conditions. Min. Typ
Model Line for this Datasheet
Text Version of Document
link to page 5

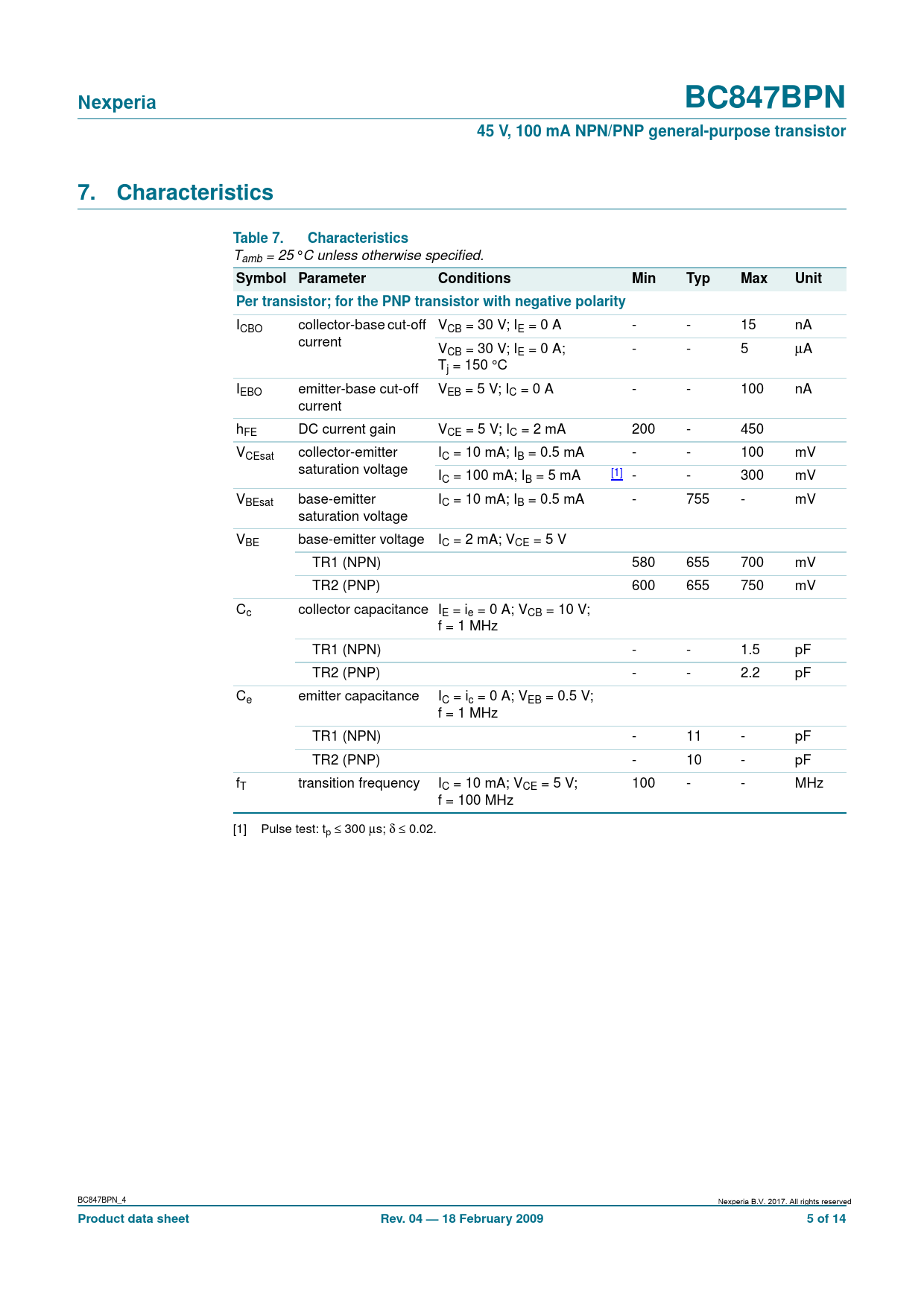

Nexperia BC847BPN 45 V, 100 mA NPN/PNP general-purpose transistor 7. Characteristics Table 7. Characteristics
Tamb = 25 °C unless otherwise specified.
Symbol Parameter Conditions Min Typ Max Unit Per transistor; for the PNP transistor with negative polarity
ICBO collector-base cut-off VCB = 30 V; IE = 0 A - - 15 nA current VCB = 30 V; IE = 0 A; - - 5 µA Tj = 150 °C IEBO emitter-base cut-off VEB = 5 V; IC = 0 A - - 100 nA current hFE DC current gain VCE = 5 V; IC = 2 mA 200 - 450 VCEsat collector-emitter IC = 10 mA; IB = 0.5 mA - - 100 mV saturation voltage IC = 100 mA; IB = 5 mA [1] - - 300 mV VBEsat base-emitter IC = 10 mA; IB = 0.5 mA - 755 - mV saturation voltage VBE base-emitter voltage IC = 2 mA; VCE = 5 V TR1 (NPN) 580 655 700 mV TR2 (PNP) 600 655 750 mV Cc collector capacitance IE = ie = 0 A; VCB = 10 V; f = 1 MHz TR1 (NPN) - - 1.5 pF TR2 (PNP) - - 2.2 pF Ce emitter capacitance IC = ic = 0 A; VEB = 0.5 V; f = 1 MHz TR1 (NPN) - 11 - pF TR2 (PNP) - 10 - pF fT transition frequency IC = 10 mA; VCE = 5 V; 100 - - MHz f = 100 MHz [1] Pulse test: tp ≤ 300 µs; δ ≤ 0.02. BC847BPN_4 © NNexperia B.V. 2017. All rights reserved
Product data sheet Rev. 04 — 18 February 2009 5 of 14
