Datasheet BAT41 (STMicroelectronics) - 8
| Manufacturer | STMicroelectronics |
| Description | 100 V, 200 mA Surface Mount General Purpose Signal Schottky Diode |
| Pages / Page | 12 / 8 — Package information. BAT41. Table 8. SOD-523 dimensions. Dimensions. Ref. … |
| File Format / Size | PDF / 149 Kb |
| Document Language | English |

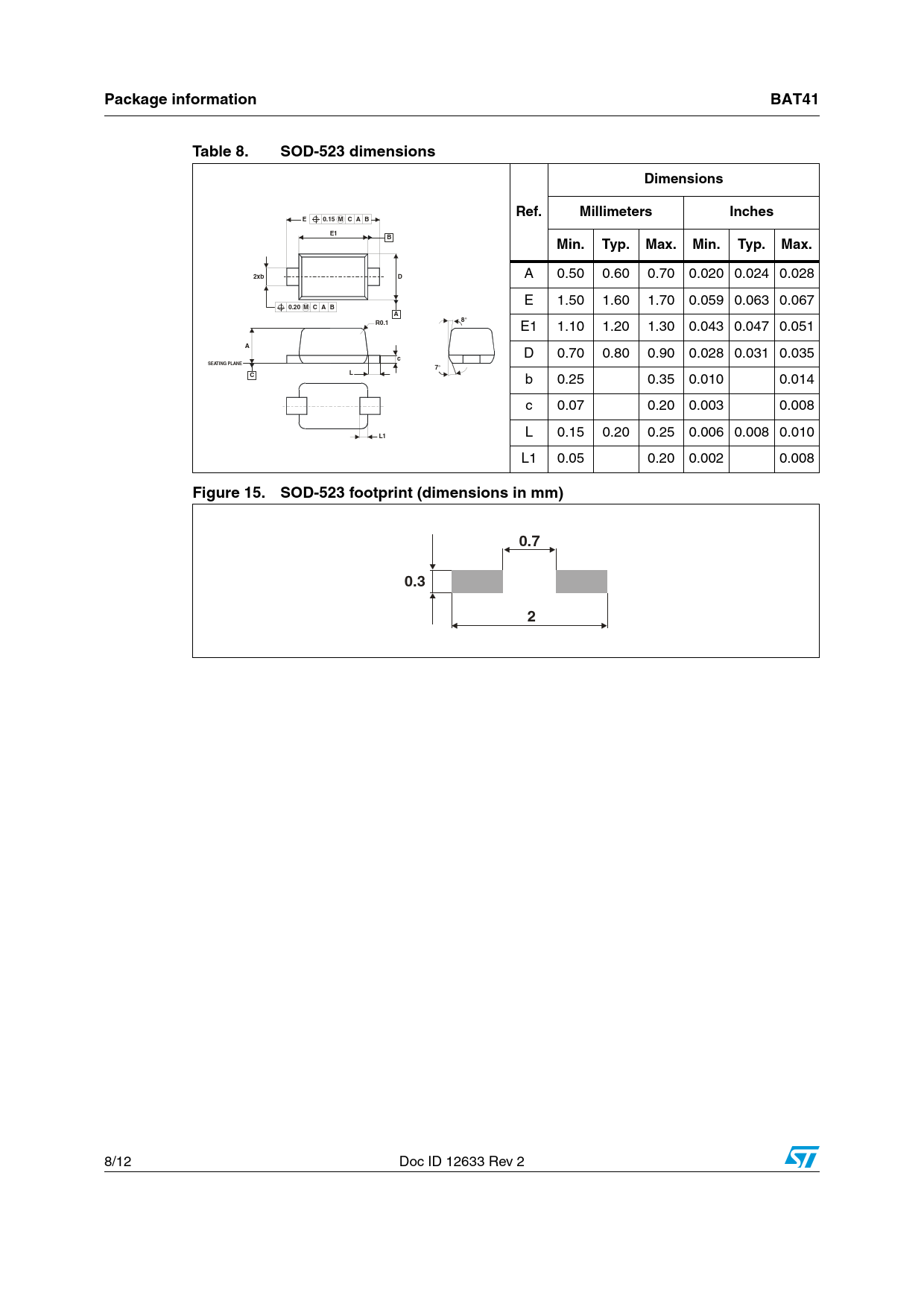

Package information. BAT41. Table 8. SOD-523 dimensions. Dimensions. Ref. Millimeters. Inches. 0.15 M C A B. Min. Typ. Max. 2xb. 0.20 M C A B. R0.1
Model Line for this Datasheet
Text Version of Document
Package information BAT41 Table 8. SOD-523 dimensions Dimensions Ref. Millimeters Inches E 0.15 M C A B E1 B Min. Typ. Max. Min. Typ. Max. 2xb D
A 0.50 0.60 0.70 0.020 0.024 0.028 E 1.50 1.60 1.70 0.059 0.063 0.067
0.20 M C A B A 8° R0.1
E1 1.10 1.20 1.30 0.043 0.047 0.051
A
D 0.70 0.80 0.90 0.028 0.031 0.035
c SEATING PLANE 7° L C
b 0.25 0.35 0.010 0.014 c 0.07 0.20 0.003 0.008
L1
L 0.15 0.20 0.25 0.006 0.008 0.010 L1 0.05 0.20 0.002 0.008
Figure 15. SOD-523 footprint (dimensions in mm) 0.7 0.3 2
