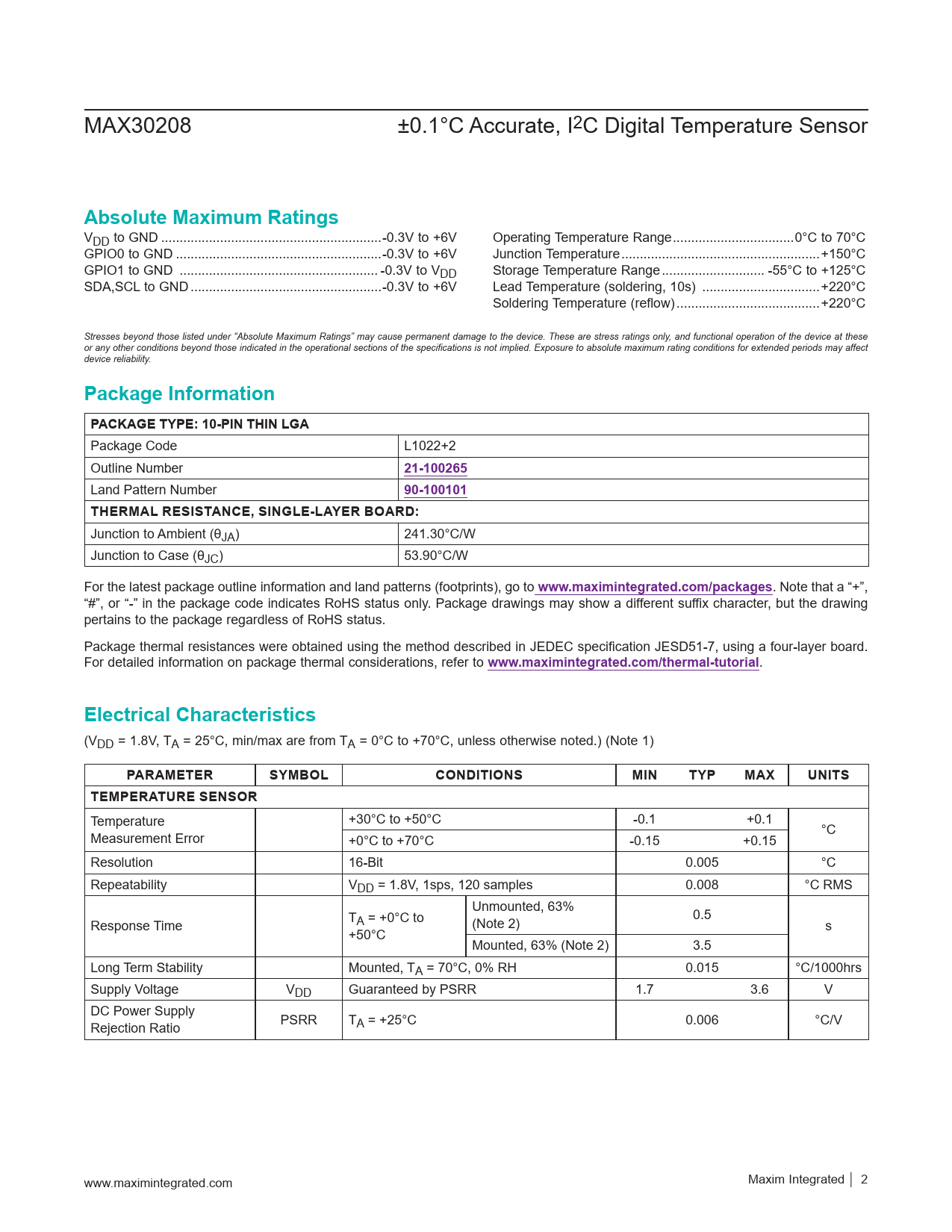

Absolute Maximum Ratings. Package Information. PACKAGE TYPE: 10-PIN THIN LGA. 21-100265. 90-100101
Model Line for this Datasheet
Text Version of Document
MAX30208 ±0.1°C Accurate, I2C Digital Temperature Sensor
Absolute Maximum Ratings
VDD to GND ..-0.3V to +6V Operating Temperature Range ...0°C to 70°C GPIO0 to GND ..-0.3V to +6V Junction Temperature ..+150°C GPIO1 to GND .. -0.3V to VDD Storage Temperature Range .. -55°C to +125°C SDA,SCL to GND ..-0.3V to +6V Lead Temperature (soldering, 10s) ..+220°C Soldering Temperature (reflow) ...+220°C Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
Package Information PACKAGE TYPE: 10-PIN THIN LGA
Package Code L1022+2 Outline Number
21-100265
Land Pattern Number
90-100101 THERMAL RESISTANCE, SINGLE-LAYER BOARD:
Junction to Ambient (θJA) 241.30°C/W Junction to Case (θJC) 53.90°C/W For the latest package outline information and land patterns (footprints), go to
www.maximintegrated.com/packages
. Note that a “+”, “#”, or “-” in the package code indicates RoHS status only. Package drawings may show a different suffix character, but the drawing pertains to the package regardless of RoHS status. Package thermal resistances were obtained using the method described in JEDEC specification JESD51-7, using a four-layer board. For detailed information on package thermal considerations, refer to
www.maximintegrated.com/thermal-tutorial
.
Electrical Characteristics
(VDD = 1.8V, TA = 25°C, min/max are from TA = 0°C to +70°C, unless otherwise noted.) (Note 1)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS TEMPERATURE SENSOR
Temperature +30°C to +50°C -0.1 +0.1 Measurement Error °C +0°C to +70°C -0.15 +0.15 Resolution 16-Bit 0.005 °C Repeatability VDD = 1.8V, 1sps, 120 samples 0.008 °C RMS Unmounted, 63% Response Time TA = +0°C to (Note 2) 0.5 +50°C s Mounted, 63% (Note 2) 3.5 Long Term Stability Mounted, TA = 70°C, 0% RH 0.015 °C/1000hrs Supply Voltage VDD Guaranteed by PSRR 1.7 3.6 V DC Power Supply Rejection Ratio PSRR TA = +25°C 0.006 °C/V www.maximintegrated.com Maxim Integrated │
2
