Datasheet IL3685P (NVE) - 3
| Manufacturer | NVE |
| Description | High-Speed Isolated 3.3V Bus RS-485 Transceiver |
| Pages / Page | 13 / 3 — IL3685P. Safety and Approvals. VDE V 0884-11. Safety-Limiting Values. … |
| File Format / Size | PDF / 507 Kb |
| Document Language | English |

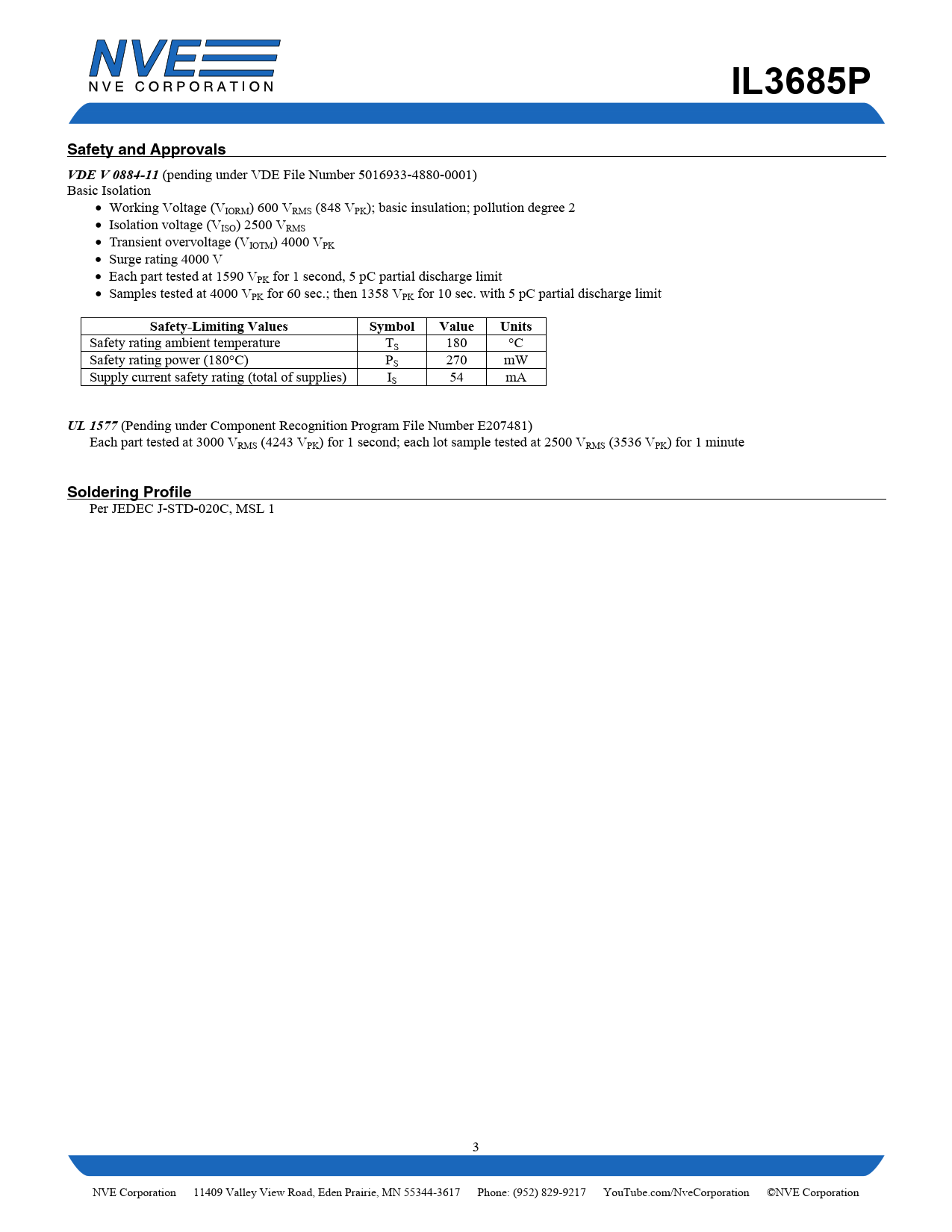

IL3685P. Safety and Approvals. VDE V 0884-11. Safety-Limiting Values. Symbol Value Units. UL 1577. Soldering Profile
Model Line for this Datasheet
Text Version of Document
IL3685P Safety and Approvals VDE V 0884-11
(pending under VDE File Number 5016933-4880-0001) Basic Isolation • Working Voltage (VIORM) 600 VRMS (848 VPK); basic insulation; pollution degree 2 • Isolation voltage (VISO) 2500 VRMS • Transient overvoltage (VIOTM) 4000 VPK • Surge rating 4000 V • Each part tested at 1590 VPK for 1 second, 5 pC partial discharge limit • Samples tested at 4000 VPK for 60 sec.; then 1358 VPK for 10 sec. with 5 pC partial discharge limit
Safety-Limiting Values Symbol Value Units
Safety rating ambient temperature TS 180 °C Safety rating power (180°C) PS 270 mW Supply current safety rating (total of supplies) IS 54 mA
UL 1577
(Pending under Component Recognition Program File Number E207481) Each part tested at 3000 VRMS (4243 VPK) for 1 second; each lot sample tested at 2500 VRMS (3536 VPK) for 1 minute
Soldering Profile
Per JEDEC J-STD-020C, MSL 1 3 NVE Corporation 11409 Valley View Road, Eden Prairie, MN 55344-3617 Phone: (952) 829-9217 YouTube.com/NveCorporation ©NVE Corporation
