Datasheet IL3685P (NVE) - 9
| Manufacturer | NVE |
| Description | High-Speed Isolated 3.3V Bus RS-485 Transceiver |
| Pages / Page | 13 / 9 — IL3685P. Package Drawing. Recommended Pad Layout |
| File Format / Size | PDF / 507 Kb |
| Document Language | English |
IL3685P. Package Drawing. Recommended Pad Layout
Model Line for this Datasheet
Text Version of Document

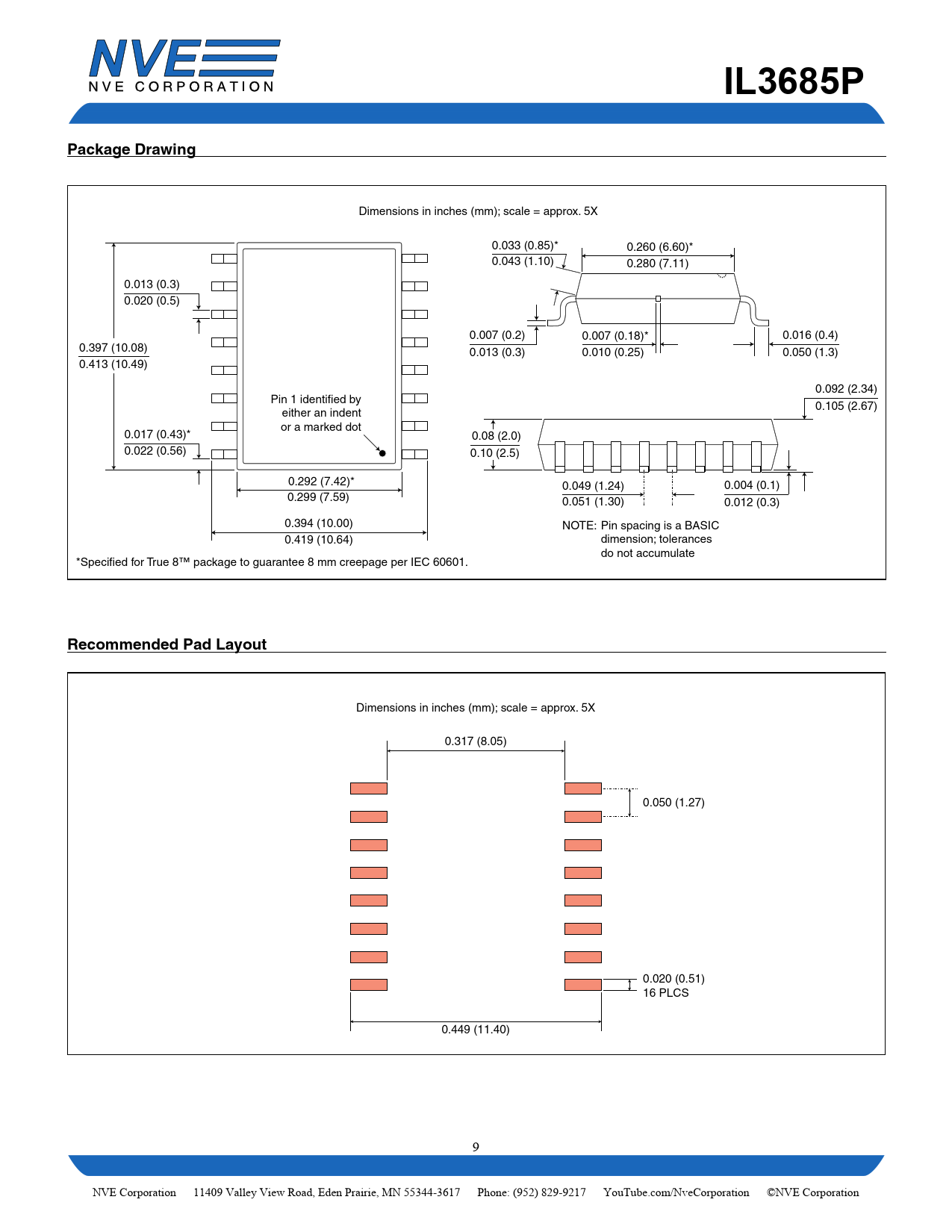

IL3685P Package Drawing
Dimensions in inches (mm); scale = approx. 5X 0.033 (0.85)* 0.260 (6.60)* 0.043 (1.10) 0.280 (7.11) 0.013 (0.3) 0.020 (0.5) 0.007 (0.2) 0.007 (0.18)* 0.016 (0.4) 0.397 (10.08) 0.013 (0.3) 0.010 (0.25) 0.050 (1.3) 0.413 (10.49) 0.092 (2.34) Pin 1 identified by 0.105 (2.67) either an indent or a marked dot 0.017 (0.43)* 0.08 (2.0) 0.022 (0.56) 0.10 (2.5) 0.292 (7.42)* 0.049 (1.24) 0.004 (0.1) 0.299 (7.59) 0.051 (1.30) 0.012 (0.3) 0.394 (10.00) NOTE: Pin spacing is a BASIC 0.419 (10.64) dimension; tolerances do not accumulate *Specified for True 8™ package to guarantee 8 mm creepage per IEC 60601.
Recommended Pad Layout
Dimensions in inches (mm); scale = approx. 5X 0.317 (8.05) 0.050 (1.27) 0.020 (0.51) 16 PLCS 0.449 (11.40)
