Datasheet HM66M (TT Electronics) - 5
| Manufacturer | TT Electronics |
| Description | SMD power inductor |
| Pages / Page | 5 / 5 — SMD Power Inductor. Case. Figure. C Max. D Ref. E Ref. F Ref. G Max. … |
| File Format / Size | PDF / 535 Kb |
| Document Language | English |
SMD Power Inductor. Case. Figure. C Max. D Ref. E Ref. F Ref. G Max. Size. Packaging & Ordering Information
Model Line for this Datasheet
- HM66M-60100LFTR13 HM66M-60101LFTR13 HM66M-60120LFTR13 HM66M-60150LFTR13 HM66M-60151LFTR13 HM66M-601R2LFTR13 HM66M-60220LFTR13 HM66M-60221LFTR13 HM66M-602R2LFTR13 HM66M-60330LFTR13 HM66M-60331LFTR13 HM66M-603R3LFTR13 HM66M-60470LFTR13 HM66M-60471LFTR13 HM66M-604R7LFTR13 HM66M-60680LFTR13 HM66M-60681LFTR13 HM66M-606R8LFTR13 HM66M-60820LFTR13 HM66M-70100LFTR13 HM66M-70101LFTR13 HM66M-70150LFTR13 HM66M-70151LFTR13 HM66M-70180LFTR13 HM66M-70220LFTR13 HM66M-70221LFTR13 HM66M-70330LFTR13 HM66M-70331LFTR13 HM66M-703R3LFTR13 HM66M-70470LFTR13 HM66M-70471LFTR13 HM66M-704R7LFTR13 HM66M-70680LFTR13 HM66M-70681LFTR13 HM66M-706R8LFTR13 HM66M-84100LFTR13 HM66M-84101LFTR13 HM66M-84120LFTR13 HM66M-84121LFTR13 HM66M-84150LFTR13 HM66M-84180LFTR13 HM66M-841R0LFTR13 HM66M-841R5LFTR13 HM66M-841R8LFTR13 HM66M-84220LFTR13 HM66M-84270LFTR13 HM66M-842R2LFTR13 HM66M-842R5LFTR13 HM66M-84330LFTR13 HM66M-84390LFTR13 HM66M-843R3LFTR13 HM66M-843R8LFTR13 HM66M-84470LFTR13 HM66M-844R7LFTR13 HM66M-84560LFTR13 HM66M-845R2LFTR13 HM66M-84680LFTR13 HM66M-846R8LFTR13 HM66M-847R0LFTR13 HM66M-84820LFTR13 HM66M-848R2LFTR13
Text Version of Document
SMD Power Inductor
HM66M Series

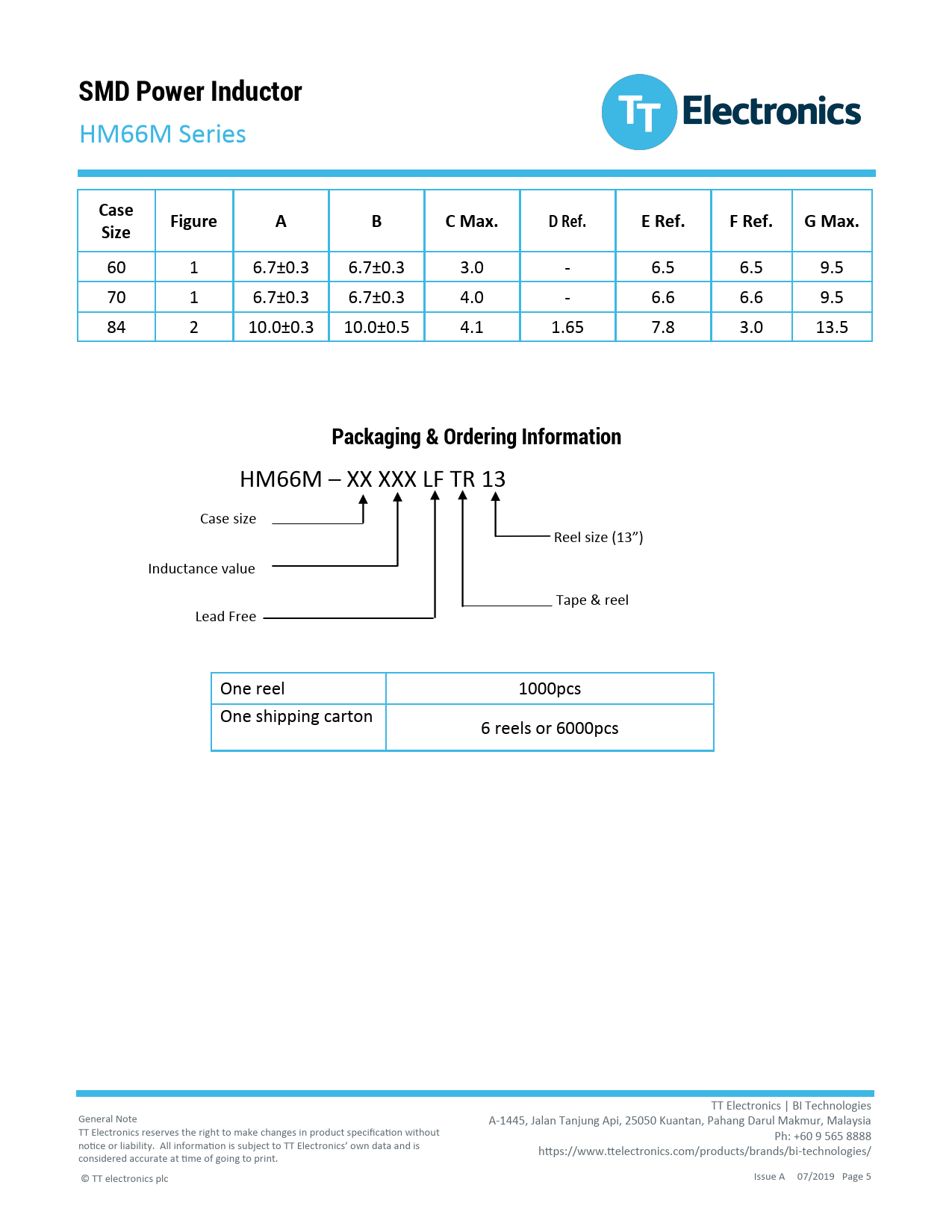

Case Figure A B C Max. D Ref. E Ref. F Ref. G Max. Size
60 1 6.7±0.3 6.7±0.3 3.0 - 6.5 6.5 9.5 70 1 6.7±0.3 6.7±0.3 4.0 - 6.6 6.6 9.5 84 2 10.0±0.3 10.0±0.5 4.1 1.65 7.8 3.0 13.5
Packaging & Ordering Information
HM66M – XX XXX LF TR 13 Case size Reel size (13”) Inductance value Tape & reel Lead Free One reel 1000pcs One shipping carton 6 reels or 6000pcs TT Electronics | BI Technologies General Note A-1445, Jalan Tanjung Api, 25050 Kuantan, Pahang Darul Makmur, Malaysia TT Electronics reserves the right to make changes in product specification without Ph: +60 9 565 8888 notice or liability. All information is subject to TT Electronics’ own data and is https://www.ttelectronics.com/products/brands/bi-technologies/ considered accurate at time of going to print. © TT electronics plc Issue A 07/2019 Page 5
