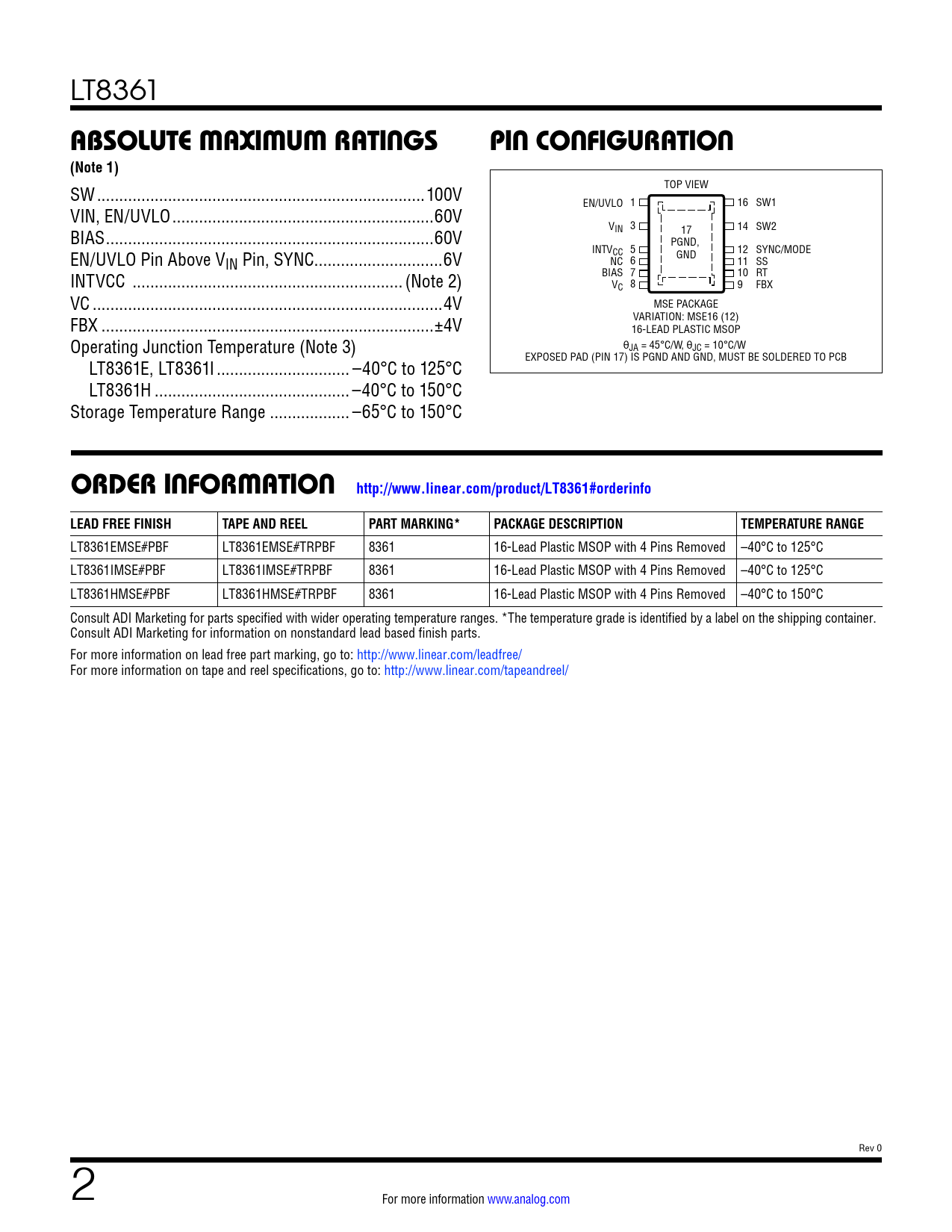

LT8361
ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION (Note 1)
SW ..100V TOP VIEW EN/UVLO 1 16 SW1 VIN, EN/UVLO ...60V V 3 BIAS ..60V IN 14 SW2 17 PGND, EN/UVLO Pin Above V INTV 5 CC 12 SYNC/MODE GND IN Pin, SYNC...6V NC 6 11 SS INTVCC ... (Note 2) BIAS 7 10 RT V 8 C 9 FBX VC ...4V MSE PACKAGE FBX ...±4V VARIATION: MSE16 (12) 16-LEAD PLASTIC MSOP Operating Junction Temperature (Note 3) θJA = 45°C/W, θJC = 10°C/W LT8361E, LT8361I .. –40°C to 125°C EXPOSED PAD (PIN 17) IS PGND AND GND, MUST BE SOLDERED TO PCB LT8361H .. –40°C to 150°C Storage Temperature Range .. –65°C to 150°C
ORDER INFORMATION http://www.linear.com/product/LT8361#orderinfo LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LT8361EMSE#PBF LT8361EMSE#TRPBF 8361 16-Lead Plastic MSOP with 4 Pins Removed –40°C to 125°C LT8361IMSE#PBF LT8361IMSE#TRPBF 8361 16-Lead Plastic MSOP with 4 Pins Removed –40°C to 125°C LT8361HMSE#PBF LT8361HMSE#TRPBF 8361 16-Lead Plastic MSOP with 4 Pins Removed –40°C to 150°C Consult ADI Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. Consult ADI Marketing for information on nonstandard lead based finish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/ Rev 0 2 For more information www.analog.com Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Pin Configuration Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Typical Applications Package Description Typical Application Related Parts
