TYPICAL PERFORMANCE CHARACTERISTICS. Maximum Load Current vs VIN. Derating Curve, VOUT ±2.5VOUT
Model Line for this Datasheet
Text Version of Document
LTM8049

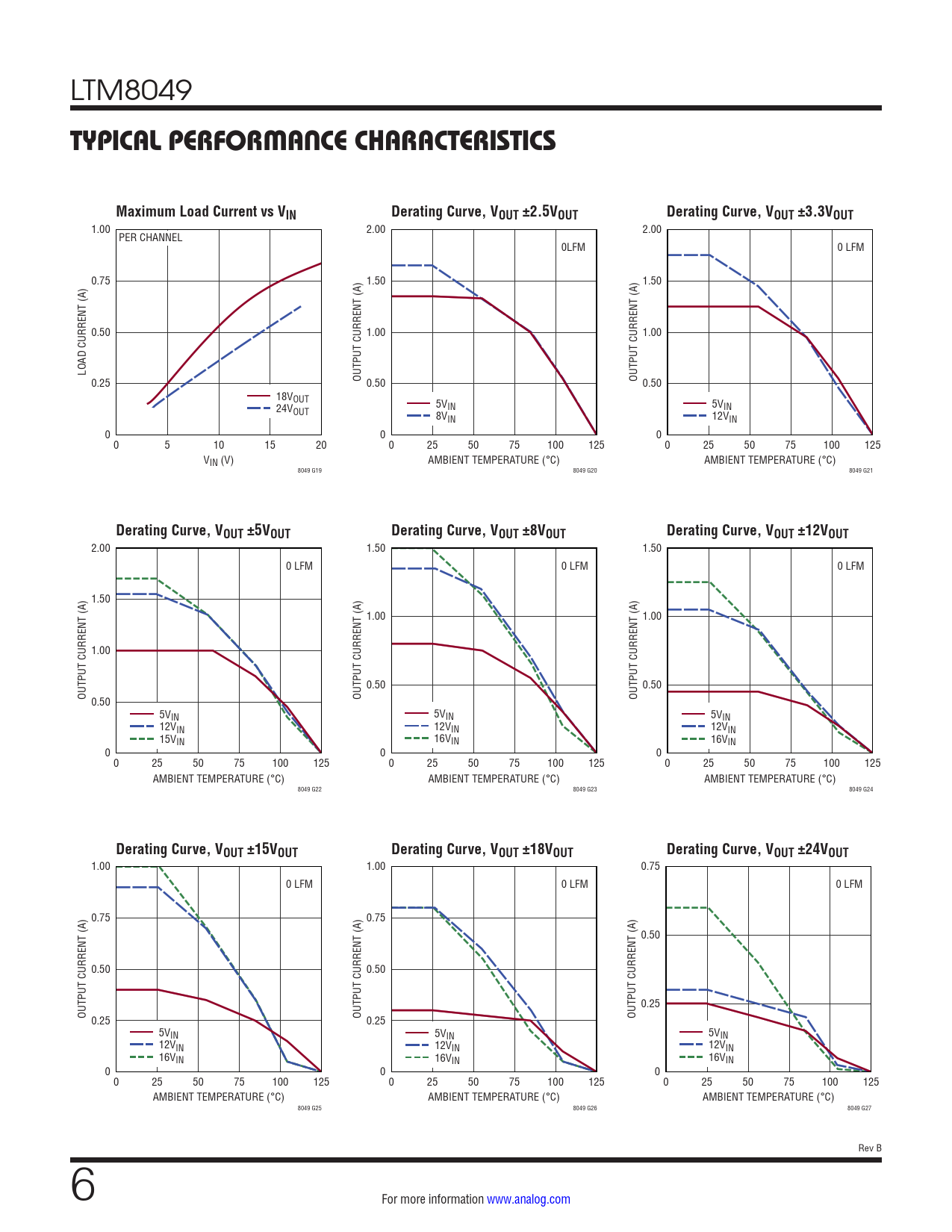

TYPICAL PERFORMANCE CHARACTERISTICS Maximum Load Current vs VIN Derating Curve, VOUT ±2.5VOUT Derating Curve, VOUT ±3.3VOUT
1.00 2.00 2.00 PER CHANNEL 0LFM 0 LFM 0.75 1.50 1.50 0.50 1.00 1.00 LOAD CURRENT (A) 0.25 OUTPUT CURRENT (A) 0.50 OUTPUT CURRENT (A) 0.50 18VOUT 24V 5V 5V OUT IN IN 8VIN 12VIN 0 0 0 0 5 10 15 20 0 25 50 75 100 125 0 25 50 75 100 125 VIN (V) AMBIENT TEMPERATURE (°C) AMBIENT TEMPERATURE (°C) 8049 G19 8049 G20 8049 G21
Derating Curve, VOUT ±5VOUT Derating Curve, VOUT ±8VOUT Derating Curve, VOUT ±12VOUT
2.00 1.50 1.50 0 LFM 0 LFM 0 LFM 1.50 1.00 1.00 1.00 0.50 0.50 OUTPUT CURRENT (A) 0.50 OUTPUT CURRENT (A) OUTPUT CURRENT (A) 5VIN 5VIN 5VIN 12VIN 12VIN 12VIN 15VIN 16VIN 16VIN 0 0 0 0 25 50 75 100 125 0 25 50 75 100 125 0 25 50 75 100 125 AMBIENT TEMPERATURE (°C) AMBIENT TEMPERATURE (°C) AMBIENT TEMPERATURE (°C) 8049 G22 8049 G23 8049 G24
Derating Curve, VOUT ±15VOUT Derating Curve, VOUT ±18VOUT Derating Curve, VOUT ±24VOUT
1.00 1.00 0.75 0 LFM 0 LFM 0 LFM 0.75 0.75 0.50 0.50 0.50 0.25 OUTPUT CURRENT (A) 0.25 OUTPUT CURRENT (A) 0.25 OUTPUT CURRENT (A) 5VIN 5VIN 5VIN 12VIN 12VIN 12VIN 16VIN 16VIN 16VIN 0 0 0 0 25 50 75 100 125 0 25 50 75 100 125 0 25 50 75 100 125 AMBIENT TEMPERATURE (°C) AMBIENT TEMPERATURE (°C) AMBIENT TEMPERATURE (°C) 8049 G25 8049 G26 8049 G27 Rev B 6 For more information www.analog.com Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Pin Configuration Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Typical Applications Package Description Package Photo Revision History Typical Application Related Parts
