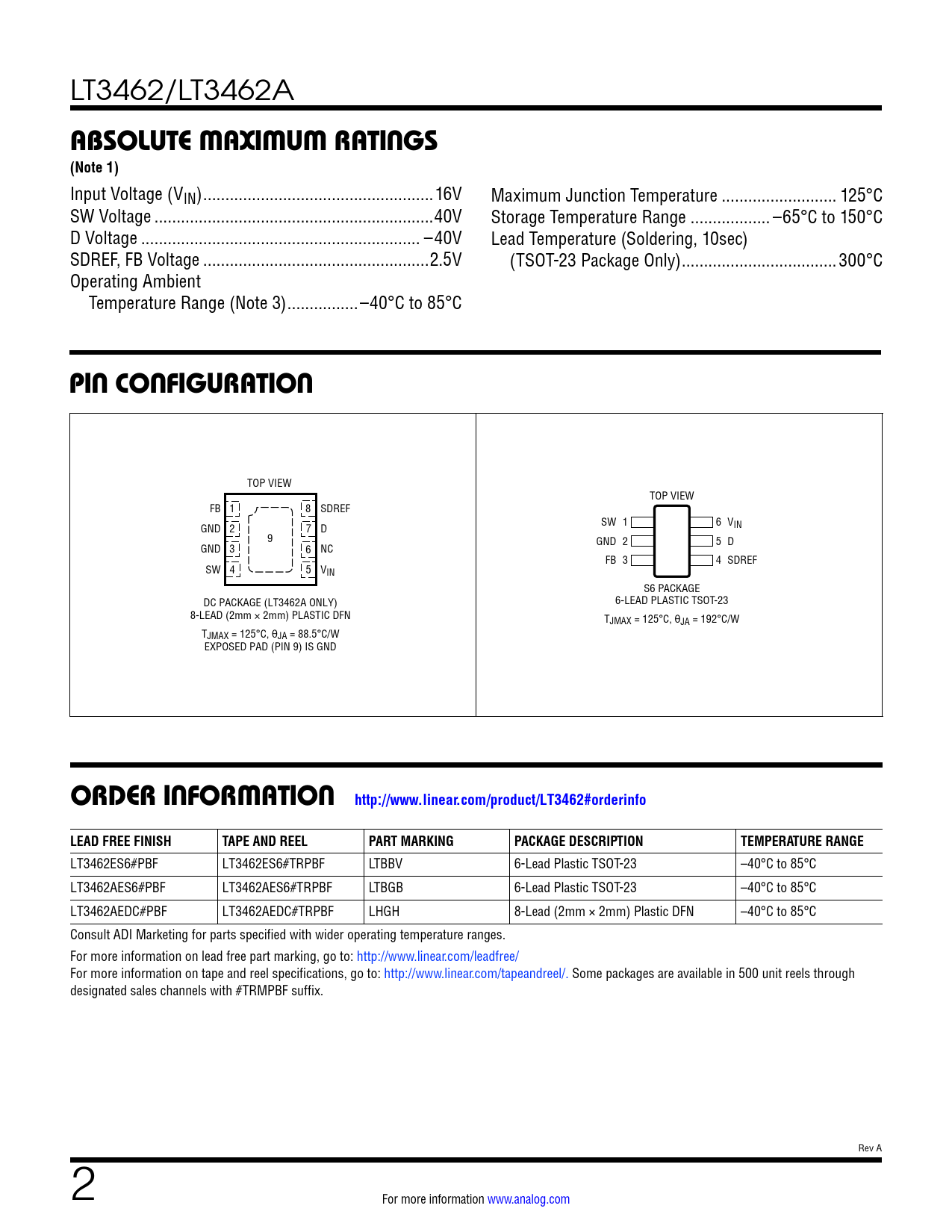

LT3462/LT3462A
ABSOLUTE MAXIMUM RATINGS (Note 1)
Input Voltage (VIN) ..16V Maximum Junction Temperature .. 125°C SW Voltage ...40V Storage Temperature Range .. –65°C to 150°C D Voltage ... –40V Lead Temperature (Soldering, 10sec) SDREF, FB Voltage ...2.5V (TSOT‑23 Package Only) ...300°C Operating Ambient Temperature Range (Note 3) ..–40°C to 85°C
PIN CONFIGURATION
TOP VIEW TOP VIEW FB 1 8 SDREF SW 1 6 V GND 2 7 D IN 9 GND 2 5 D GND 3 6 NC FB 3 4 SDREF SW 4 5 VIN S6 PACKAGE DC PACKAGE (LT3462A ONLY) 6-LEAD PLASTIC TSOT-23 8-LEAD (2mm × 2mm) PLASTIC DFN TJMAX = 125°C, θJA = 192°C/W TJMAX = 125°C, θJA = 88.5°C/W EXPOSED PAD (PIN 9) IS GND
ORDER INFORMATION http://www.linear.com/product/LT3462#orderinfo LEAD FREE FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE
LT3462ES6#PBF LT3462ES6#TRPBF LTBBV 6‑Lead Plastic TSOT‑23 –40°C to 85°C LT3462AES6#PBF LT3462AES6#TRPBF LTBGB 6‑Lead Plastic TSOT‑23 –40°C to 85°C LT3462AEDC#PBF LT3462AEDC#TRPBF LHGH 8‑Lead (2mm × 2mm) Plastic DFN –40°C to 85°C Consult ADI Marketing for parts specified with wider operating temperature ranges. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix. Rev A 2 For more information www.analog.com Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
