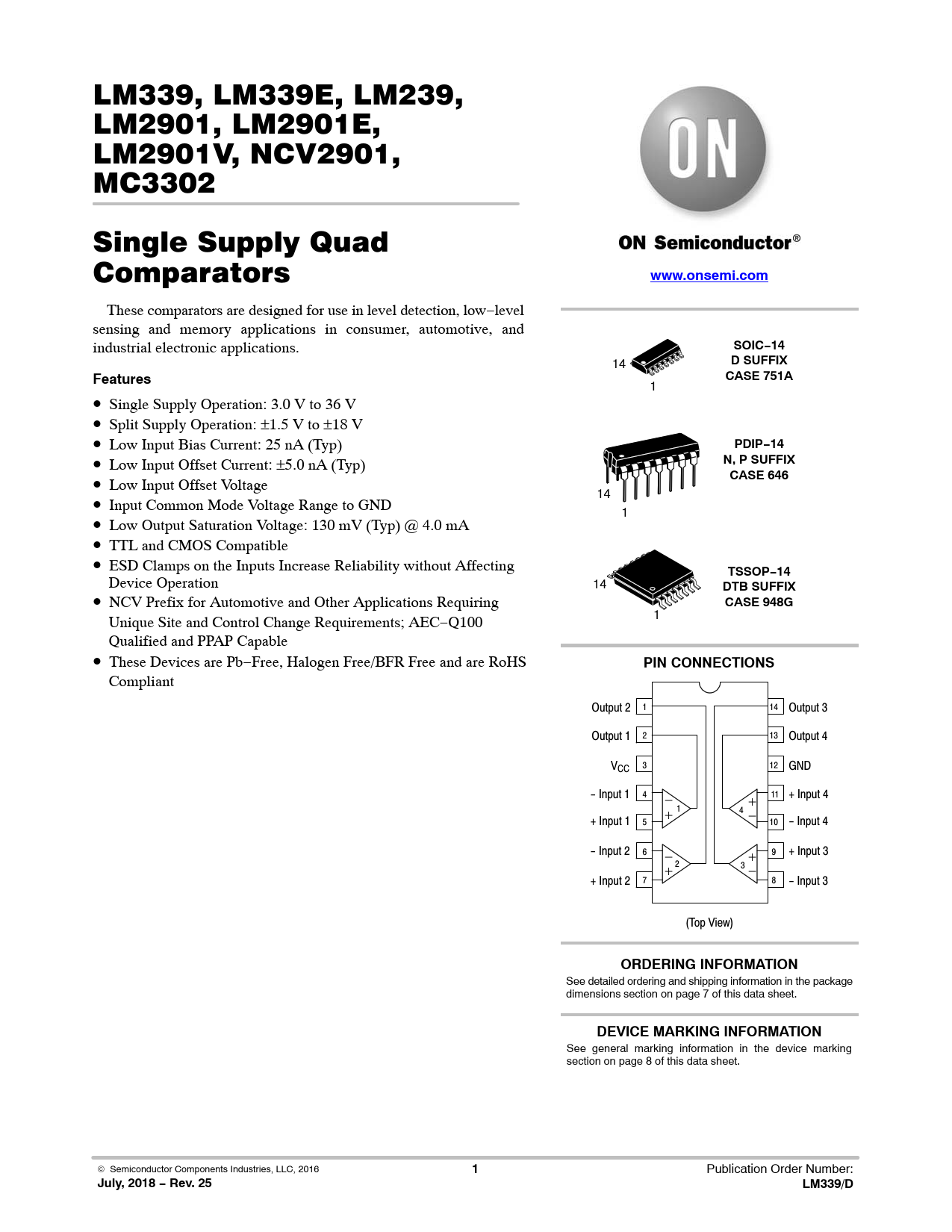

link to page 7 link to page 8 LM339, LM339E, LM239, LM2901, LM2901E, LM2901V, NCV2901, MC3302 Single Supply Quad Comparators
www.onsemi.com
These comparators are designed for use in level detection, low−level sensing and memory applications in consumer, automotive, and industrial electronic applications.
SOIC−14
14
D SUFFIX Features CASE 751A
1 • Single Supply Operation: 3.0 V to 36 V • Split Supply Operation: ±1.5 V to ±18 V • Low Input Bias Current: 25 nA (Typ)
PDIP−14
• Low Input Offset Current: ±5.0 nA (Typ)
N, P SUFFIX

CASE 646
Low Input Offset Voltage • 14 Input Common Mode Voltage Range to GND • 1 Low Output Saturation Voltage: 130 mV (Typ) @ 4.0 mA • TTL and CMOS Compatible • ESD Clamps on the Inputs Increase Reliability without Affecting
TSSOP−14
Device Operation 14
DTB SUFFIX
• NCV Prefix for Automotive and Other Applications Requiring
CASE 948G
Unique Site and Control Change Requirements; AEC−Q100 1 Qualified and PPAP Capable • These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS
PIN CONNECTIONS
Compliant Output 2 1 14 Output 3 Output 1 2 13 Output 4 V 3 12 CC GND - Input 1 4 * 11 + Input 4 ) 1 ) 4 * + Input 1 5 10 - Input 4 - Input 2 6 * 9 + Input 3 ) 2 3 ) * + Input 2 7 8 - Input 3 (Top View)
ORDERING INFORMATION
See detailed ordering and shipping information in the package dimensions section on page 7 of this data sheet.
DEVICE MARKING INFORMATION
See general marking information in the device marking section on page 8 of this data sheet. © Semiconductor Components Industries, LLC, 2016
