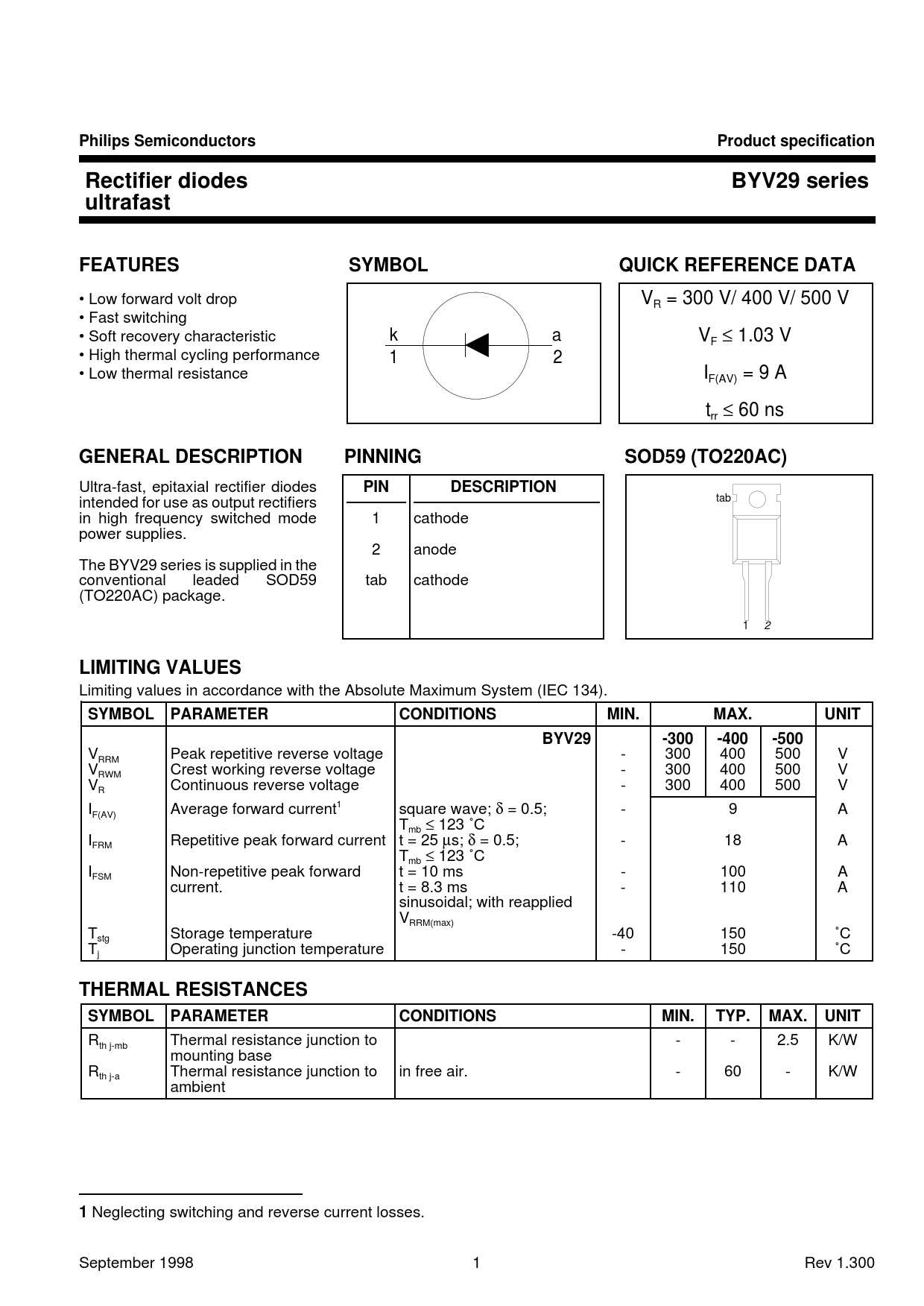

Philips Semiconductors. Product specification. Rectifier diodes. BYV29 series. ultrafast. FEATURES. SYMBOL. QUICK REFERENCE DATA
Model Line for this Datasheet
Text Version of Document
Philips Semiconductors Product specification Rectifier diodes BYV29 series ultrafast FEATURES SYMBOL QUICK REFERENCE DATA
• Low forward volt drop V = 300 V/ 400 V/ 500 V R • Fast switching • Soft recovery characteristic k a V ≤ 1.03 V F • High thermal cycling performance 1 2 • Low thermal resistance I = 9 A F(AV) t ≤ 60 ns rr
GENERAL DESCRIPTION PINNING SOD59 (TO220AC)
Ultra-fast, epitaxial rectifier diodes
PIN DESCRIPTION
intended for use as output rectifiers tab in high frequency switched mode 1 cathode power supplies. 2 anode The BYV29 series is supplied in the conventional leaded SOD59 tab cathode (TO220AC) package. 1 2
LIMITING VALUES
Limiting values in accordance with the Absolute Maximum System (IEC 134).
SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT BYV29 -300 -400 -500
V Peak repetitive reverse voltage - 300 400 500 V RRM V Crest working reverse voltage - 300 400 500 V RWM V Continuous reverse voltage - 300 400 500 V R I Average forward current1 square wave; δ = 0.5; - 9 A F(AV) T ≤ 123 ˚C mb I Repetitive peak forward current t = 25 µs; δ = 0.5; - 18 A FRM T ≤ 123 ˚C mb I Non-repetitive peak forward t = 10 ms - 100 A FSM current. t = 8.3 ms - 110 A sinusoidal; with reapplied VRRM(max) T Storage temperature -40 150 ˚C stg T Operating junction temperature - 150 ˚C j
THERMAL RESISTANCES SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT
R Thermal resistance junction to - - 2.5 K/W th j-mb mounting base R Thermal resistance junction to in free air. - 60 - K/W th j-a ambient
1
Neglecting switching and reverse current losses. September 1998 1 Rev 1.300 Document Outline FEATURES SYMBOL QUICK REFERENCE DATA GENERAL DESCRIPTION PINNING LIMITING VALUES THERMAL RESISTANCES ELECTRICAL CHARACTERISTICS PACKAGE OUTLINE DEFINITIONS
