Philips Semiconductors Product specification
Rectifier diodes BYV29 series ultrafast
MECHANICAL DATA
Dimensions in mm 4,5 Net Mass: 2 g max 10,3 max 1,3 3,7 2,8 5,9 min 15,8 max 3,0 max not tinned 3,0 13,5 min 1,3 max
1 2

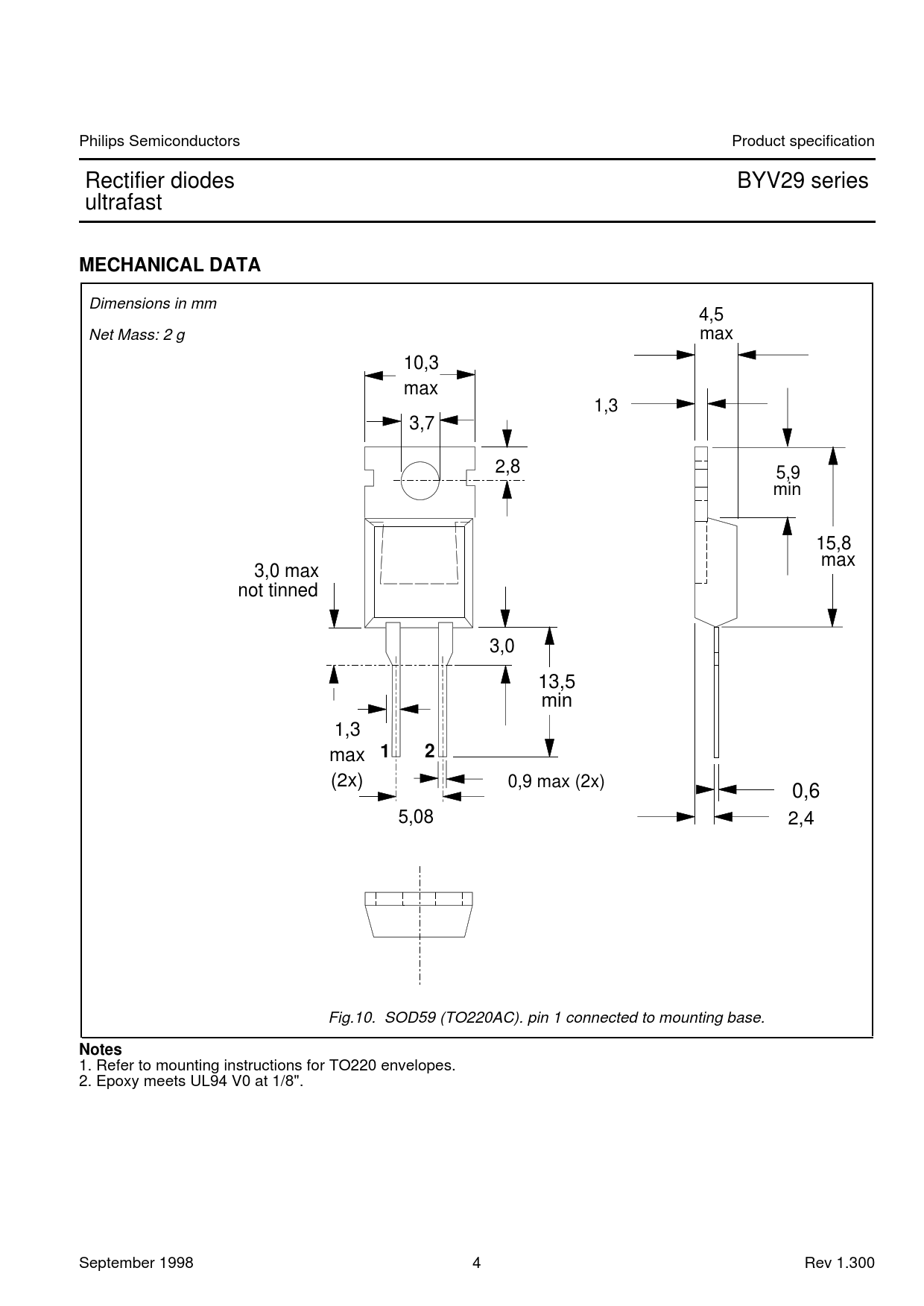

(2x) 0,9 max (2x) 0,6 5,08 2,4 Fig.10. SOD59 (TO220AC). pin 1 connected to mounting base.
Notes
1. Refer to mounting instructions for TO220 envelopes. 2. Epoxy meets UL94 V0 at 1/8". September 1998 4 Rev 1.300 Document Outline FEATURES SYMBOL QUICK REFERENCE DATA GENERAL DESCRIPTION PINNING LIMITING VALUES THERMAL RESISTANCES ELECTRICAL CHARACTERISTICS PACKAGE OUTLINE DEFINITIONS
