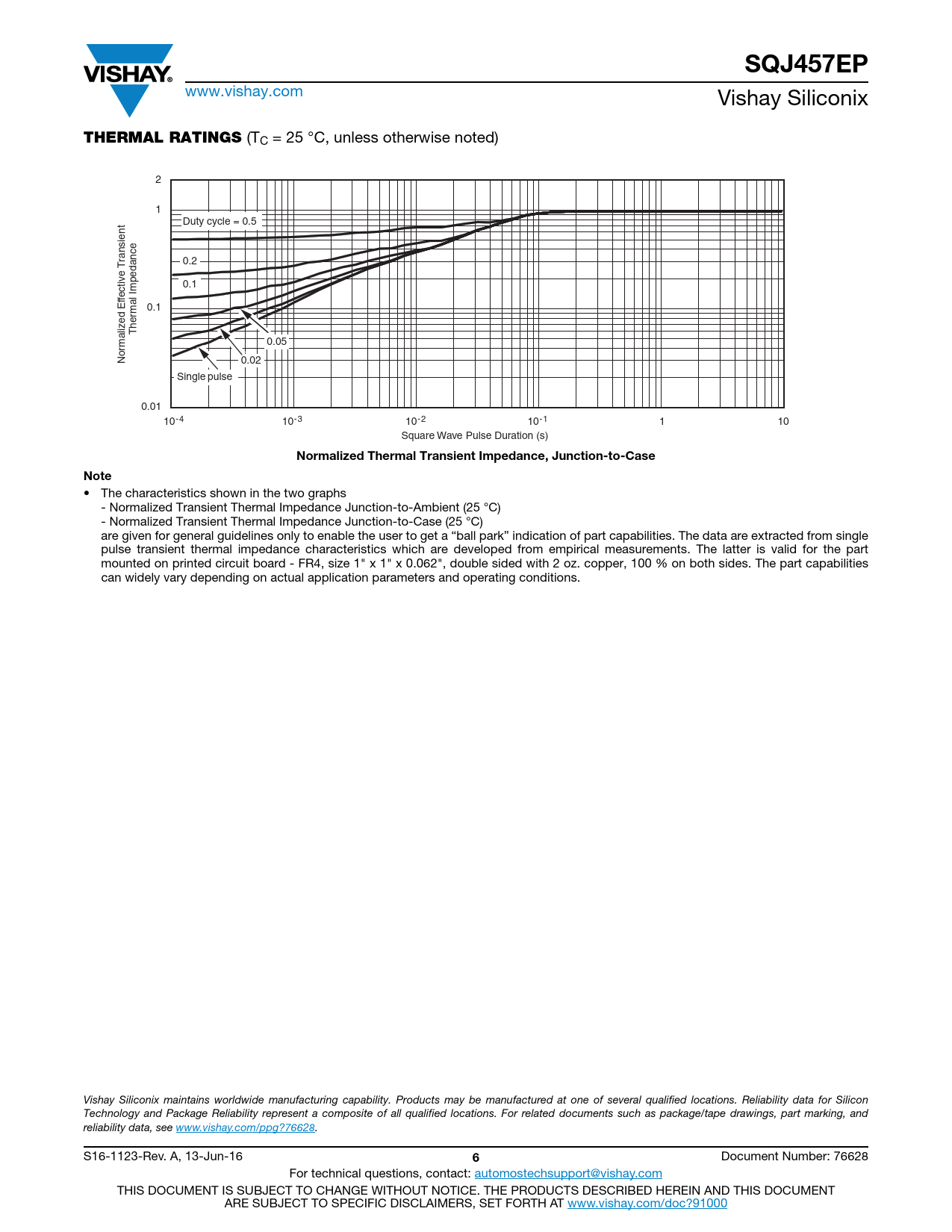

SQJ457EP. THERMAL RATINGS. Normalized Thermal Transient Impedance, Junction-to-Case. Note
Model Line for this Datasheet
Text Version of Document
SQJ457EP
www.vishay.com Vishay Siliconix
THERMAL RATINGS
(TC = 25 °C, unless otherwise noted) 2 1 Duty cycle = 0.5 ransient 0.2 T e v 0.1 fecti Ef 0.1 rmal Impedance ed z The 0.05 rmali No 0.02 Single pulse 0.01 10-3 10-2 10-1 10-4 1 10 Square Wave Pulse Duration (s)
Normalized Thermal Transient Impedance, Junction-to-Case Note
• The characteristics shown in the two graphs - Normalized Transient Thermal Impedance Junction-to-Ambient (25 °C) - Normalized Transient Thermal Impedance Junction-to-Case (25 °C) are given for general guidelines only to enable the user to get a “ball park” indication of part capabilities. The data are extracted from single pulse transient thermal impedance characteristics which are developed from empirical measurements. The latter is valid for the part mounted on printed circuit board - FR4, size 1" x 1" x 0.062", double sided with 2 oz. copper, 100 % on both sides. The part capabilities can widely vary depending on actual application parameters and operating conditions. Vishay Siliconix maintains worldwide manufacturing capability. Products may be manufactured at one of several qualified locations. Reliability data for Silicon Technology and Package Reliability represent a composite of all qualified locations. For related documents such as package/tape drawings, part marking, and reliability data, see www.vishay.com/ppg?76628. S16-1123-Rev. A, 13-Jun-16
